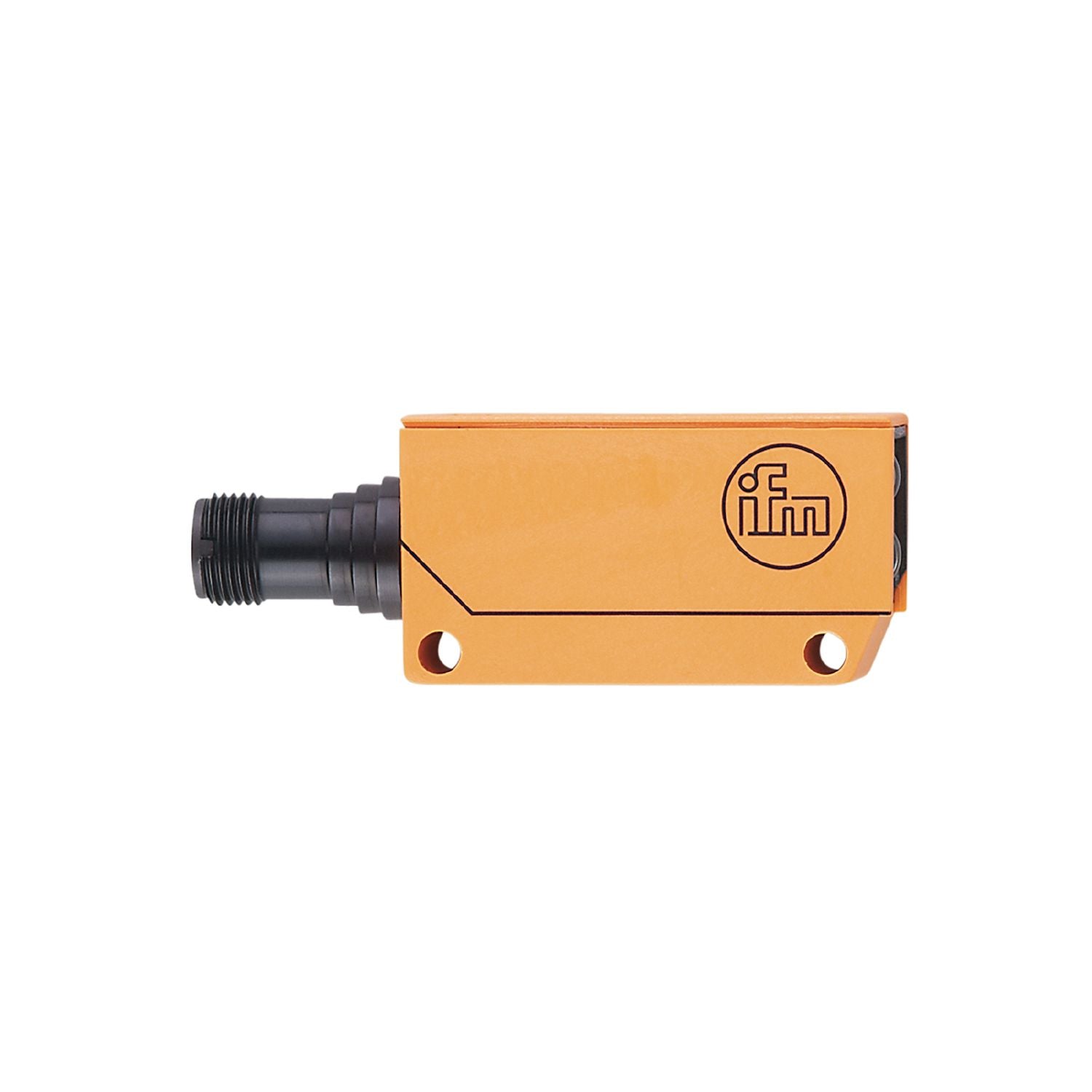

IFM OU5069 - Diffuse reflection sensor OUN-HPKG/US-100-DPS

For use at short range.
Compact housing for use where space is restricted.
Intuitive setting of the sensitivity via potentiometer.
Clearly visible indication of the switching status.
Large operating voltage range

Type of light	infrared light
Housing	rectangular

Special feature	Diffuse reflection sensor for short ranges
Function principle	Diffuse reflection sensor

Operating voltage [V]	10...55 DC
Current consumption [mA]	35;((24 V))
Protection class	III
Reverse polarity protection	yes
Type of light	infrared light
Wave length [nm]	880

Outputs

Electrical design	PNP
Output function	light-on mode
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	160
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Range [mm]	20...40;(white paper 200 x 200 mm)
Max. light spot diameter [mm]	20
Light spot dimensions refer to	at maximum range
Diffuse reflection sensor for short ranges	yes

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	685

Weight [g]	70.5
Housing	rectangular
Dimensions [mm]	28 x 16 x 51
Materials	PPO modified
Lens material	glass
Lens alignment	side lens

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	Angle bracket: 1, E20211

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

excess gain graph

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OU5069-00 — 13.04.2023 —
