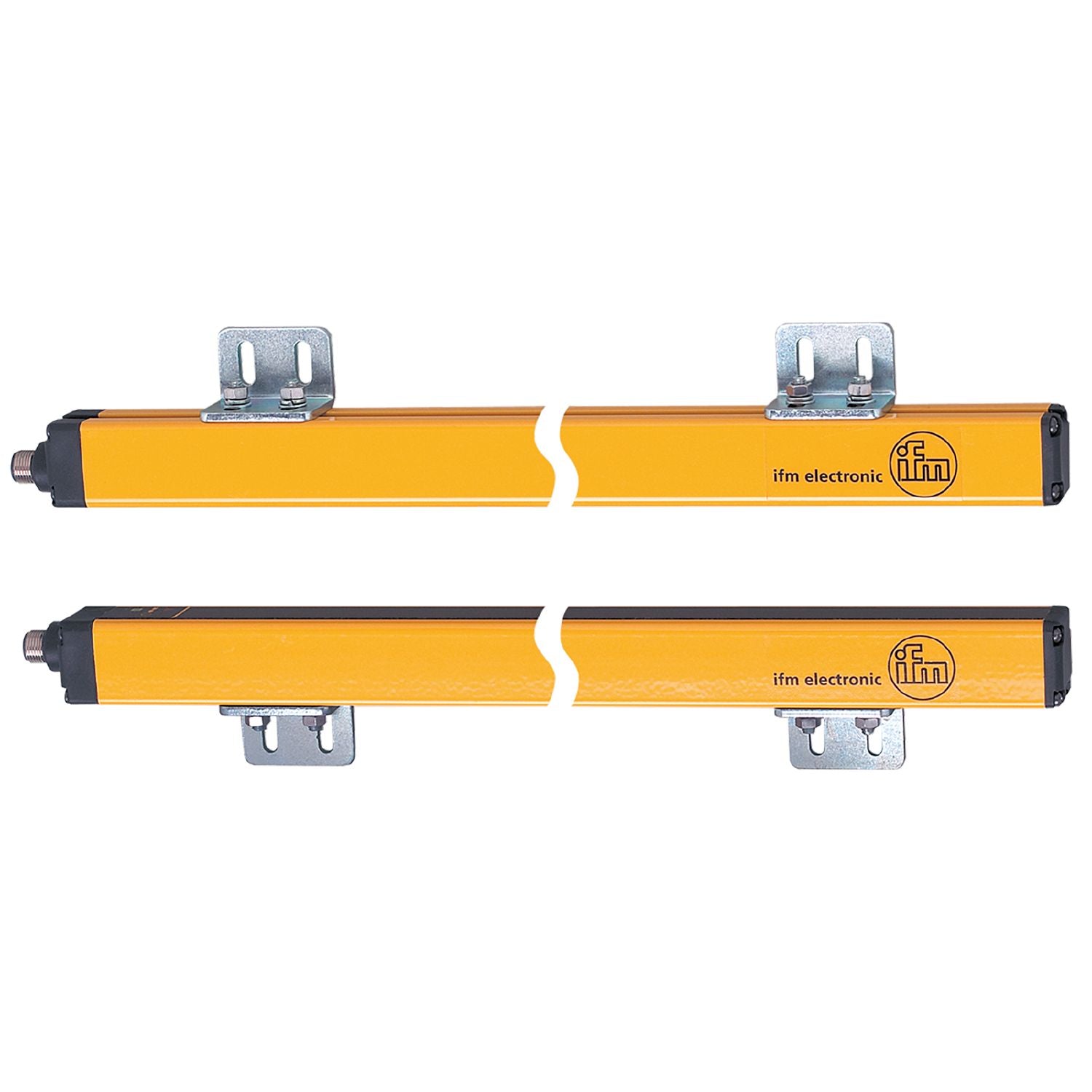

IFM OY096S - Safety light curtain OYA0910-90-2-12-P-1

Reliable protection of hazardous areas and gates.
Complies with the requirements of type 2 to IEC 61496.
Wide range selectable on the unit.
Slim, robust design for use in harsh industrial environments.
Easy connection via the tried-and-tested M12 connector

Type of light	infrared light
Electrical design	PNP
Protection	IP 65; IP 67

Protective function	access prevention bodies or parts of bodies

Operating voltage tolerance [%]	20
Operating voltage [V]	24 DC
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	< 2
Type of light	infrared light
Wave length [nm]	950

Current consumption [mA]	83

Current consumption [mA]	42

Outputs

Electrical design	PNP
Number of OSSD outputs	2
Max. current load per OSSD output [mA]	400;(24 V)
Short-circuit protection	yes

Detection zone

Protected area height [mm]	910
Resolution (detection capacity d) [mm]	90
Protection area width (low light intensity) [m]	0...4
Protection area width (high light intensity) [m]	3...12

Response times

Response time [ms]	5

Operating conditions

Applications	class C to EN 60654-1 weatherproof application
Ambient temperature [°C]	-10...55
Storage temperature [°C]	-20...70
Max. relative air humidity [%]	95
Protection	IP 65; IP 67

Tests / approvals

EMC	IEC 61496-1
Shock resistance	IEC 61496-1
Vibration resistance	IEC 61496-1

Safety classification

ESPE type (IEC 61496-1)	2
Complies with the requirements	ISO 13849-1: 2015 category 2, PL c IEC 62061 SIL 1
Mission time TM [h]	175200
PFH [1/h]	2,7E-08

Weight [g]	3350
Dimensions [mm]	963 x 28 x 30
Materials	housing: aluminium; front pane: PC
Length L [mm]	963

Displays / operating elements

Display	transmitter 1 x LED receiver 2 x LED

Accessories

Items supplied	mounting bracket: 4 slot nuts: 4 Nuts

Pack quantity	1 pcs.

Electrical connection - receiver

Connection	Connector: 1 x M12; coding: A; Maximum cable length: 100 m; for wire cross-section 0.34 mm²

Electrical connection - transmitter

Connection	Connector: 1 x M12; coding: A
