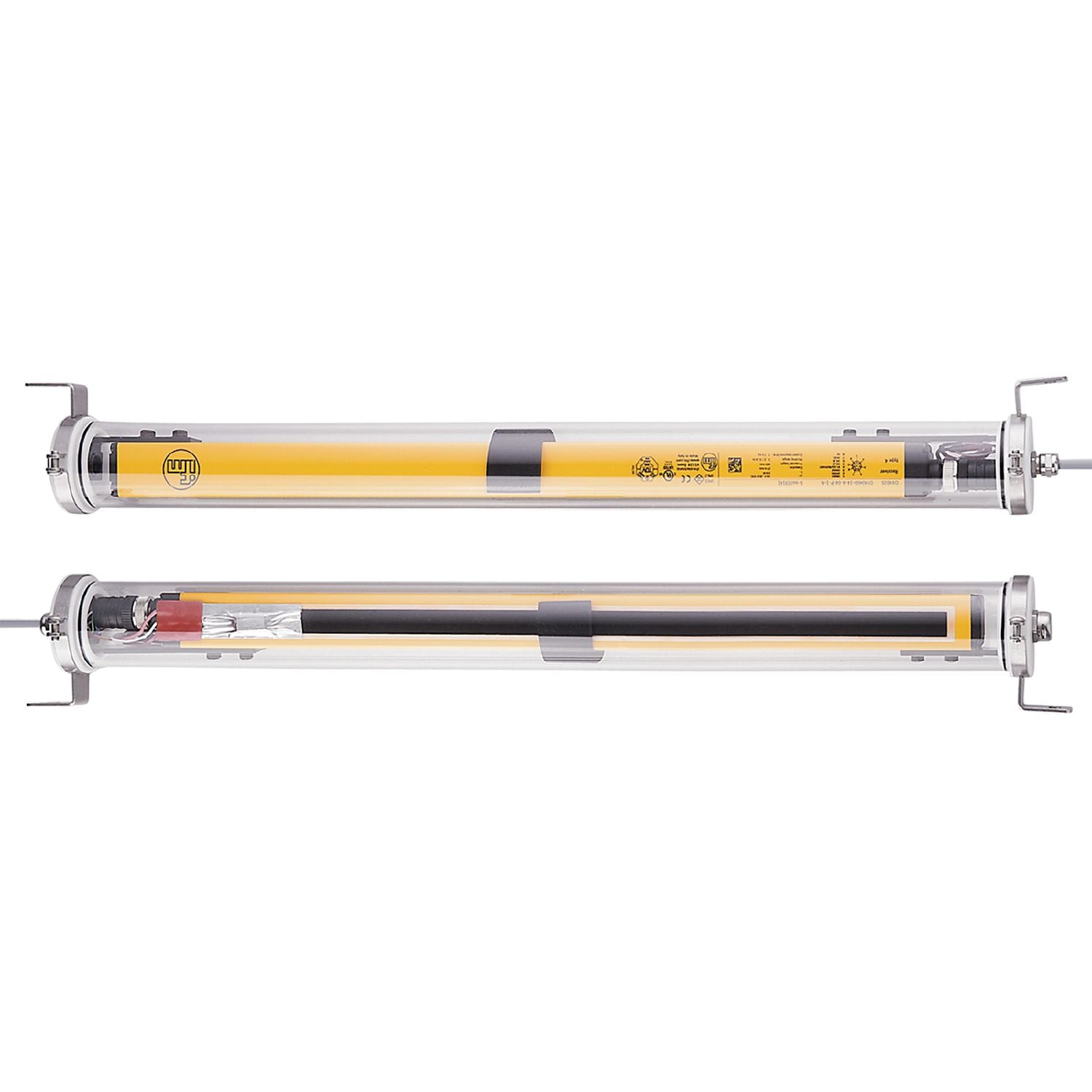

IFM OY431S - Safety light curtain OYA0160-30-2-09-P-1-A

High protection rating for the requirements of the food and beverage industry.
Resistant to steam and high-pressure cleaning thanks to protective tube.
Reliable protection of hazardous areas and gates.
Complies with the requirements of type 2 to IEC 61496.
Wide range selectable on the unit

Type of light	infrared light
Electrical design	PNP
Protection	IP 65; IP 67; IP 69K;(with protective tube: IP 69K)

Protective function	access prevention hand protection

Operating voltage tolerance [%]	20
Operating voltage [V]	24 DC
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	< 2
Type of light	infrared light
Wave length [nm]	950

Current consumption [mA]	83
Current consumption heating [mA]	83

Current consumption [mA]	42
Current consumption heating [mA]	83

Outputs

Electrical design	PNP
Number of OSSD outputs	2
Max. current load per OSSD output [mA]	400;(24 V)
Short-circuit protection	yes

Detection zone

Protected area height [mm]	160
Resolution (detection capacity d) [mm]	30
Protection area width (low light intensity) [m]	0...3
Protection area width (high light intensity) [m]	2...10

Response times

Response time [ms]	4.5

Operating conditions

Ambient temperature [°C]	-20...55
Max. relative air humidity [%]	95
Protection	IP 65; IP 67; IP 69K;(with protective tube: IP 69K)

Tests / approvals

EMC	IEC 61496-1
Shock resistance	IEC 61496-1
Vibration resistance	IEC 61496-1

Safety classification

ESPE type (IEC 61496-1)	2
Complies with the requirements	ISO 13849-1: 2015 category 2, PL c IEC 62061 SIL 1
Mission time TM [h]	175200
PFH [1/h]	2,0E-08

Weight [g]	2940
Dimensions [mm]	337 x 76 x 74
Materials	thermowell: PMMA transparent; Protective cap: POM; clamp: stainless steel (1.4404 / 316L); Sealing: silicone
Length L [mm]	337

Displays / operating elements

Display	transmitter 1 x LED receiver 2 x LED

Pack quantity	1 pcs.

Electrical connection - receiver

Connection	Cable: 15 m, PVC; Maximum cable length: 100 m; 10 x 0.34 mm²

Electrical connection - transmitter

Connection	Cable: 15 m, PVC; 8 x 0.34 mm²

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — OY431S — 14.03.2022 —
