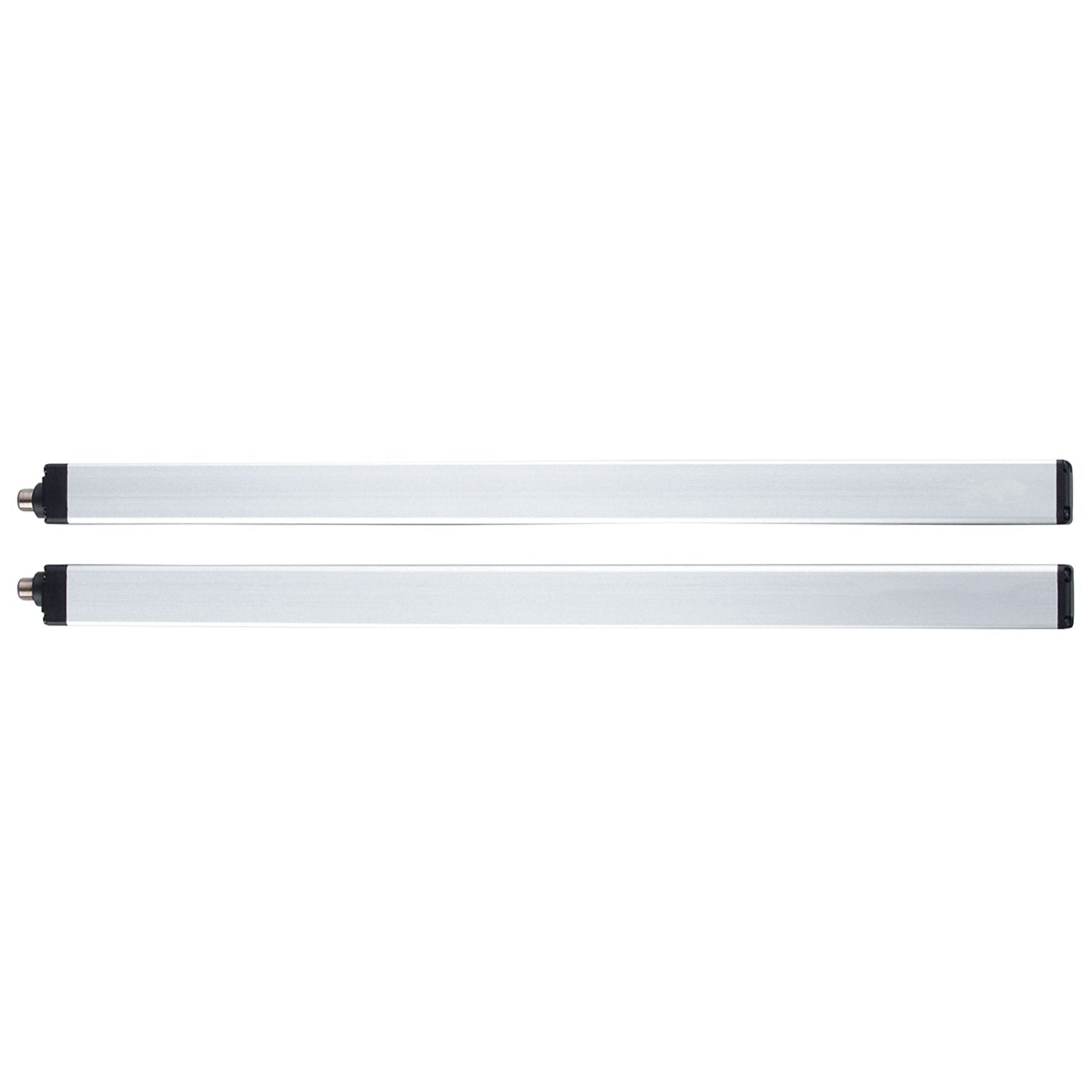

Simple object dimensioning in intralogistics without complex programming. High resolution for precise object detection
Type of light
infrared light
Electrical design
PNP/NPN;(parameterisable)
Protection
IP 65; IP 67
Operating voltage [V]
19.2...28.8 DC
Protection class
III
Reverse polarity protection
yes
Max. power-on delay time [ms]
300
Type of light
infrared light
Wave length [nm]
880
Receiver
Current consumption [mA]
90
Transmitter
Current consumption [mA]
15
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 1
Outputs
Electrical design
PNP/NPN;(parameterisable)
Number of digital outputs
1
Output function
normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]
2
Max. current load per output [mA]
100
Switching frequency DC [Hz]
14
Short-circuit protection
yes
Overload protection
yes
Detection zone
Number of beams
105
Sensing field height [mm]
1040
Sensing field width (low light intensity) [m]
0...2
Sensing field width (high light intensity) [m]
1...10
Distance between beams [mm]
10
Software / programming
Parameter setting options
hysteresis / window; second switch point; Switch-on and switch-off delay; switch-on operations; Teach function; light-on/dark-on mode
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
Profiles
Smart Sensor: Device Identification; Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor; Process Data Variable;Device Diagnosis; Teach Channel
SIO mode
yes
Required master port type
A
Min. process cycle time [ms]
10
IO-Link process data (cyclical)
function
bit length
process value
80
device status
4
binary switching information
2
IO-Link functions (acyclical)
application specific tag; operating hours counter
Supported DeviceIDs
Type of operation
DeviceID
default
1401
Note
For further information please see the IODD PDF file under "Downloads"
Operating conditions
Ambient temperature [°C]
-10...55
Storage temperature [°C]
-25...70
Protection
IP 65; IP 67
Max. immunity to extraneous light [klx]
10
Tests / approvals
EMC
EN 61000-4-2 ESD
4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated
3 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-6 HF conducted
3 V
EN 55011
Class A
Vibration resistance
EN 60068-2-6 Fc
(10-55) Hz 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz
Shock resistance
EN 60068-2-27 Ea
30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
MTTF [years]
82
Weight [g]
3.5
Housing
rectangular
Dimensions [mm]
1113 x 30 x 28
Materials
housing: aluminium; front pane: PC
Length L [mm]
1113
Displays / operating elements
Display
transmitter
2 LED
receiver
3 LED
Accessories
Items supplied
mounting bracket: 2
slot nuts: 2
Nuts
Pack quantity
1 pcs.
Electrical connection - receiver
Connection
Connector: 1 x M12; coding: A
Electrical connection - transmitter
Connection
Connector: 1 x M12; coding: A
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OY5106-00 — 12.04.2021 —
