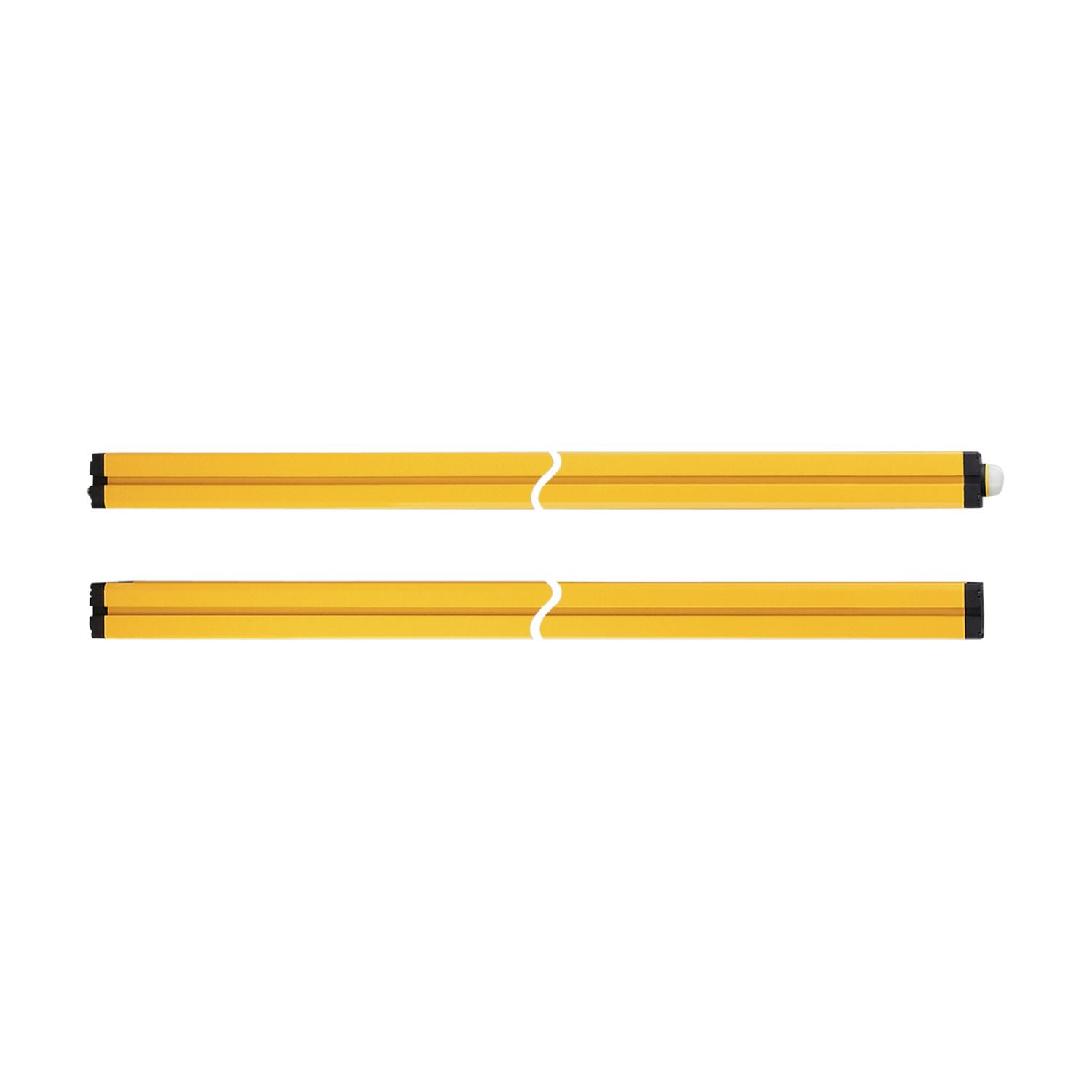

IFM OY511S - safety light grids OYA510-02-4-12-P-4-M

Easy connection of the muting sensors directly to the safety light grid.
Muting arms with pre-mounted sensors for rapid set-up.
Parallel or crossbeam muting version for detection of variable object sizes.
Integrated status light.
User-friendly configuration via hardware wiring

Type of light	infrared light
Electrical design	PNP
Protection	IP 65; IP 67

Operating voltage [V]	24 DC
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	< 10
Type of light	infrared light
Wave length [nm]	950

Current consumption [mA]	84

Current consumption [mA]	42

Outputs

Electrical design	PNP
Number of OSSD outputs	2
Max. current load per OSSD output [mA]	300;(24 V)
Short-circuit protection	yes

Detection zone

Protected area height [mm]	510
Number of beams	2
Protection area width (low light intensity) [m]	0...4
Protection area width (high light intensity) [m]	3...12

Response times

Response time [ms]	5.5

Operating conditions

Applications	class C to EN 60654-1 weatherproof application
Ambient temperature [°C]	-30...55
Storage temperature [°C]	-30...70
Max. relative air humidity [%]	95;(non condensing)
Protection	IP 65; IP 67

Tests / approvals

EMC	IEC 61496-1
Shock resistance	IEC 61496-1
Vibration resistance	IEC 61496-1

Safety classification

ESPE type (IEC 61496-1)	4
Complies with the requirements	ISO 13849-1: 2015 category 4, PL e IEC 61508 SIL 3 IEC 62061 SIL 3
Mission time TM [h]	175200
PFH [1/h]	9E-09

Weight [g]	4720
Dimensions [mm]	685 x 50 x 50
Materials	housing: aluminium; front pane: PC
Length L [mm]	685

Displays / operating elements

Display	transmitter 1 x LED receiver 10 x LED

Accessories

Items supplied	mounting bracket: 4 slot nuts: 4

Pack quantity	1 pcs.

Electrical connection - receiver

Connection	Connector: 1 x M12; Maximum cable length: 100 m; for wire cross-section 1 mm²

Electrical connection - transmitter

Connection	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — OY511S — 14.03.2022 —
