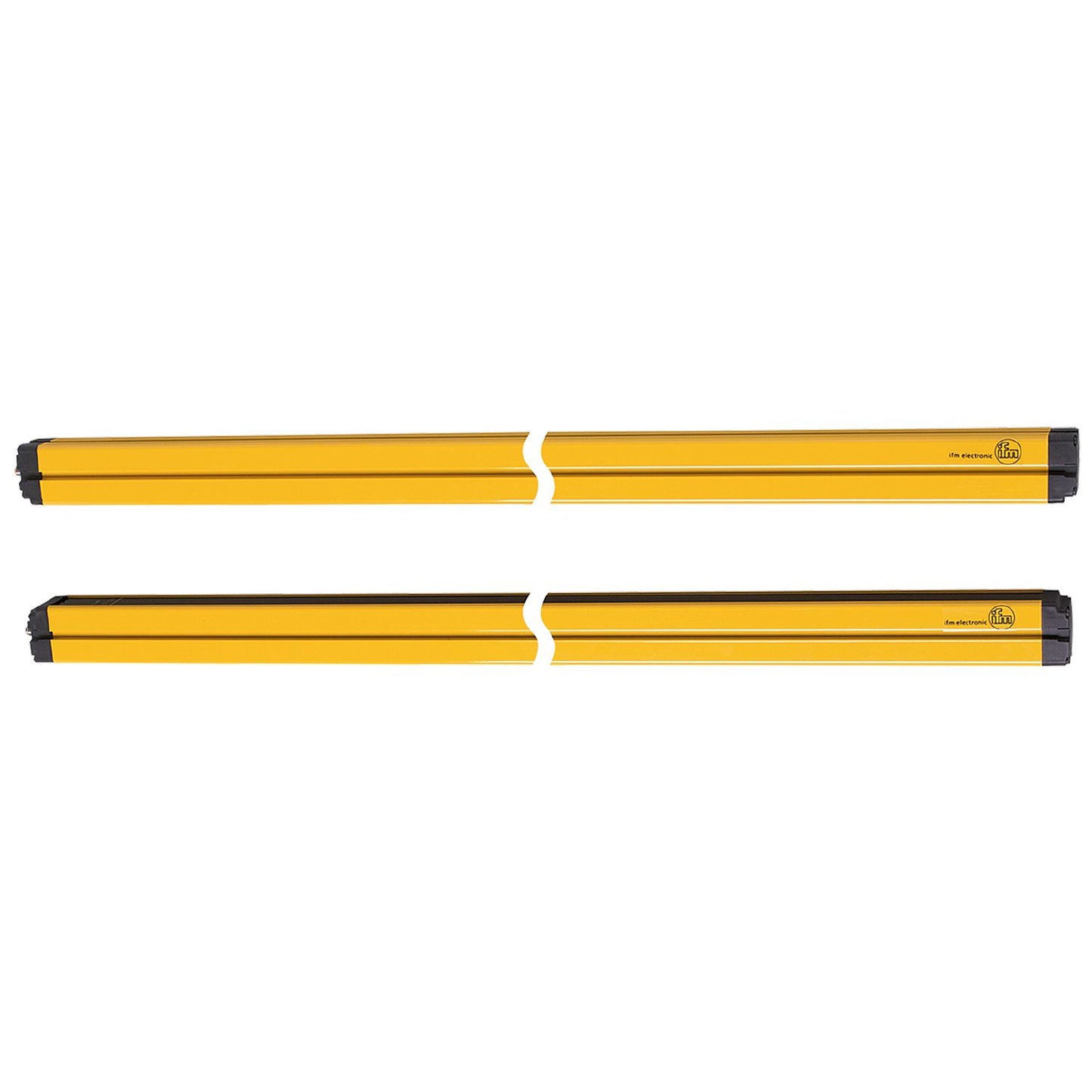

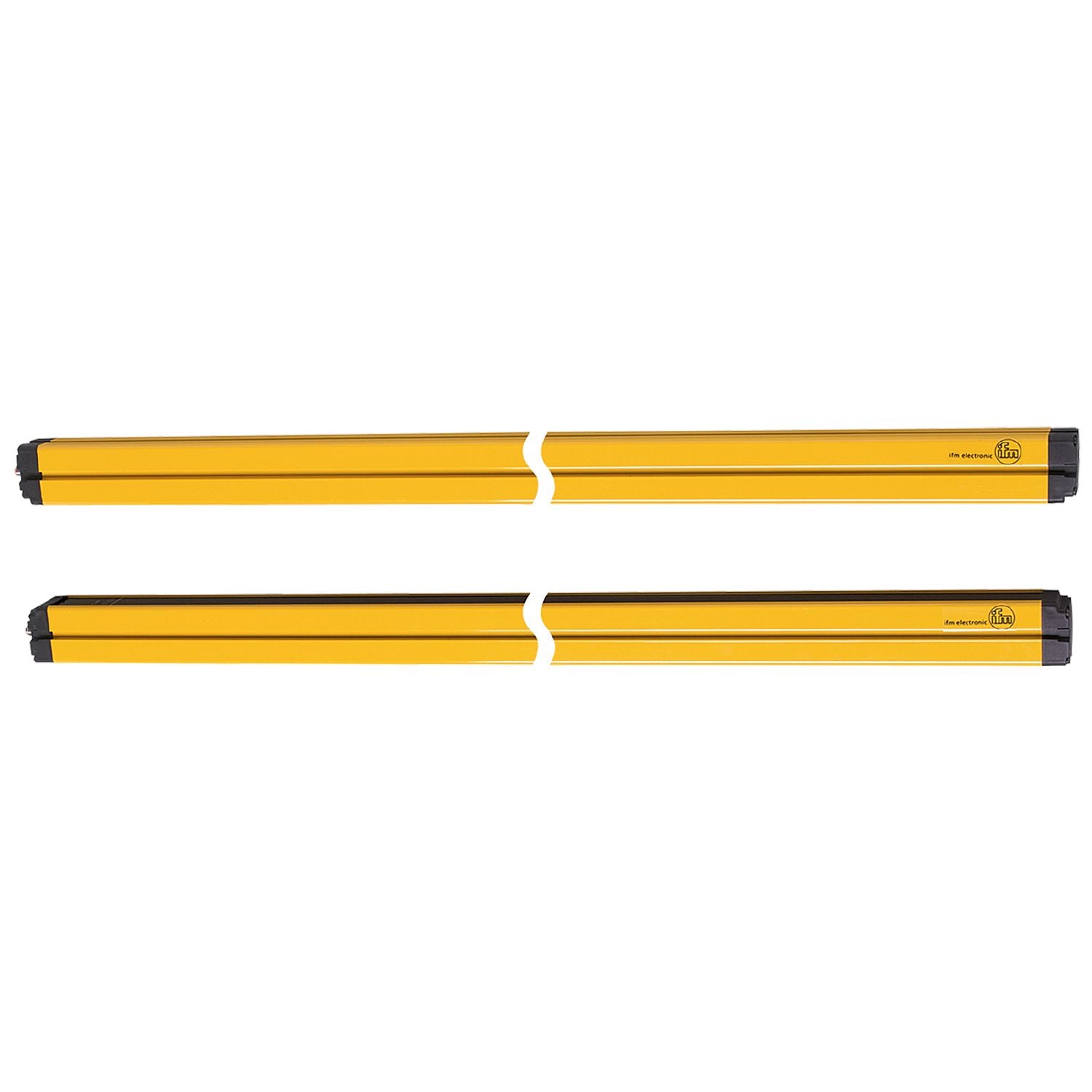

IFM OY903S - safety light grids OYD0910-04-4-06-P-1

Single-sided wiring as transmitter and receiver are integrated in one housing.
Reliable protection of hazardous areas and gates.
Complies with the requirements of type 4 to IEC 61496.
Wide range selectable on the unit.
Easy connection via the tried-and-tested M12 connector

Type of light	infrared light
Electrical design	PNP
Protection	IP 65

Protective function	access prevention body protection

Operating voltage tolerance [%]	20
Operating voltage [V]	24 DC
Current consumption [mA]	250
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	< 10
Type of light	infrared light
Wave length [nm]	950

Outputs

Electrical design	PNP
Number of OSSD outputs	2
Max. current load per OSSD output [mA]	500
Short-circuit protection	yes

Detection zone

Protected area height [mm]	910
Number of beams	4
Protection area width (low light intensity) [m]	0...6
Protection area width (high light intensity) [m]	0...6
Active/passive system	yes

Response times

Response time [ms]	10.5

Operating conditions

Applications	class C to EN 60654-1 weatherproof application
Ambient temperature [°C]	-10...55
Max. relative air humidity [%]	95
Protection	IP 65

Tests / approvals

EMC	IEC 61496-1
Shock resistance	IEC 61496-1
Vibration resistance	IEC 61496-1

Safety classification

ESPE type (IEC 61496-1)	4
Complies with the requirements	ISO 13849-1: 2015 category 4, PL e IEC 61508 SIL 3 IEC 62061 SIL 3
Mission time TM [h]	175200
PFH [1/h]	5,0E-09

Weight [g]	9200
Dimensions [mm]	1136 x 50 x 60
Materials	housing: aluminium; front pane: PC
Length L [mm]	1136

Displays / operating elements

Display	transmitter 4 x LED transmitter LC display

Accessories

Items supplied	mounting bracket: 6 slot nuts: 6

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Maximum cable length: 100 m; for wire cross-section 1 mm²
