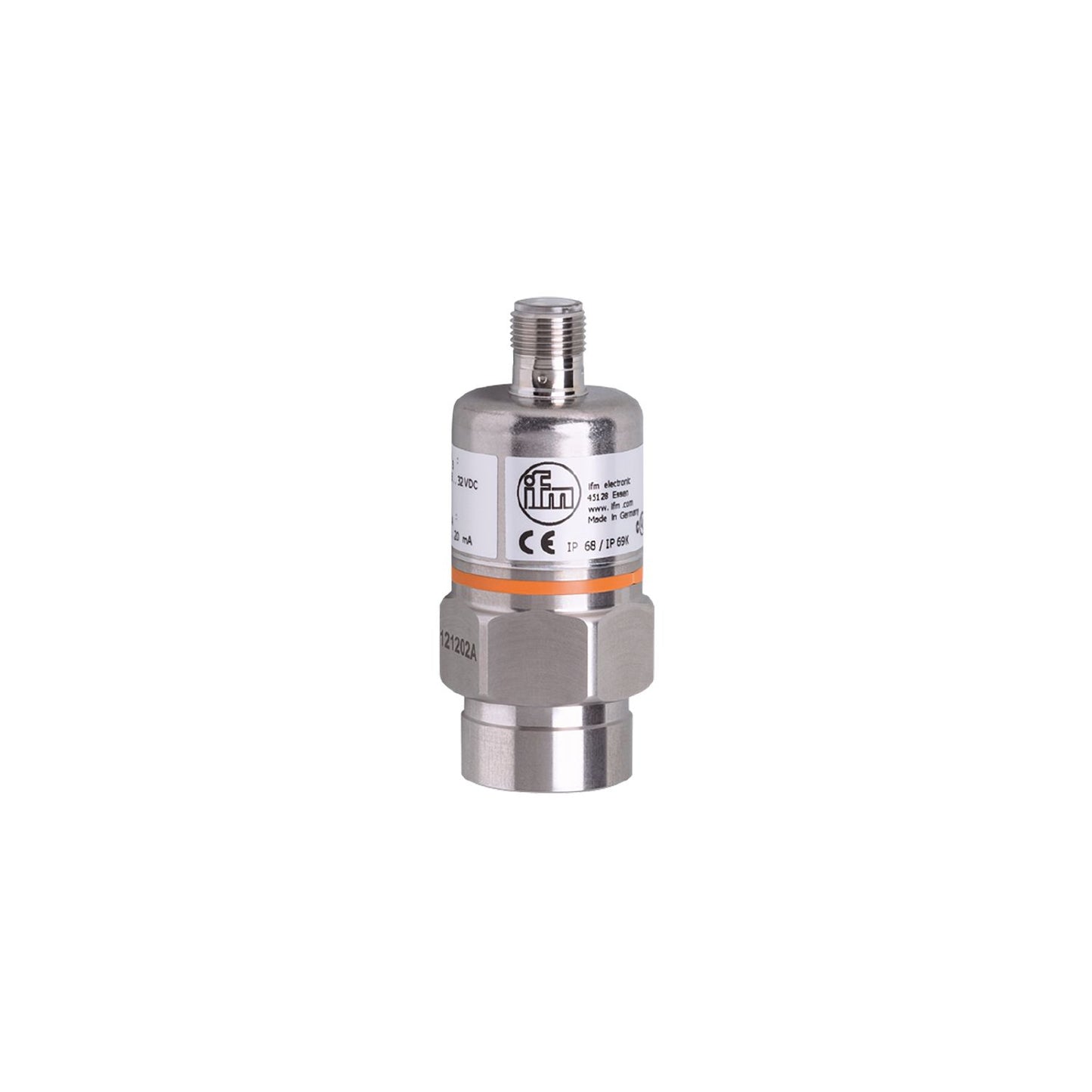

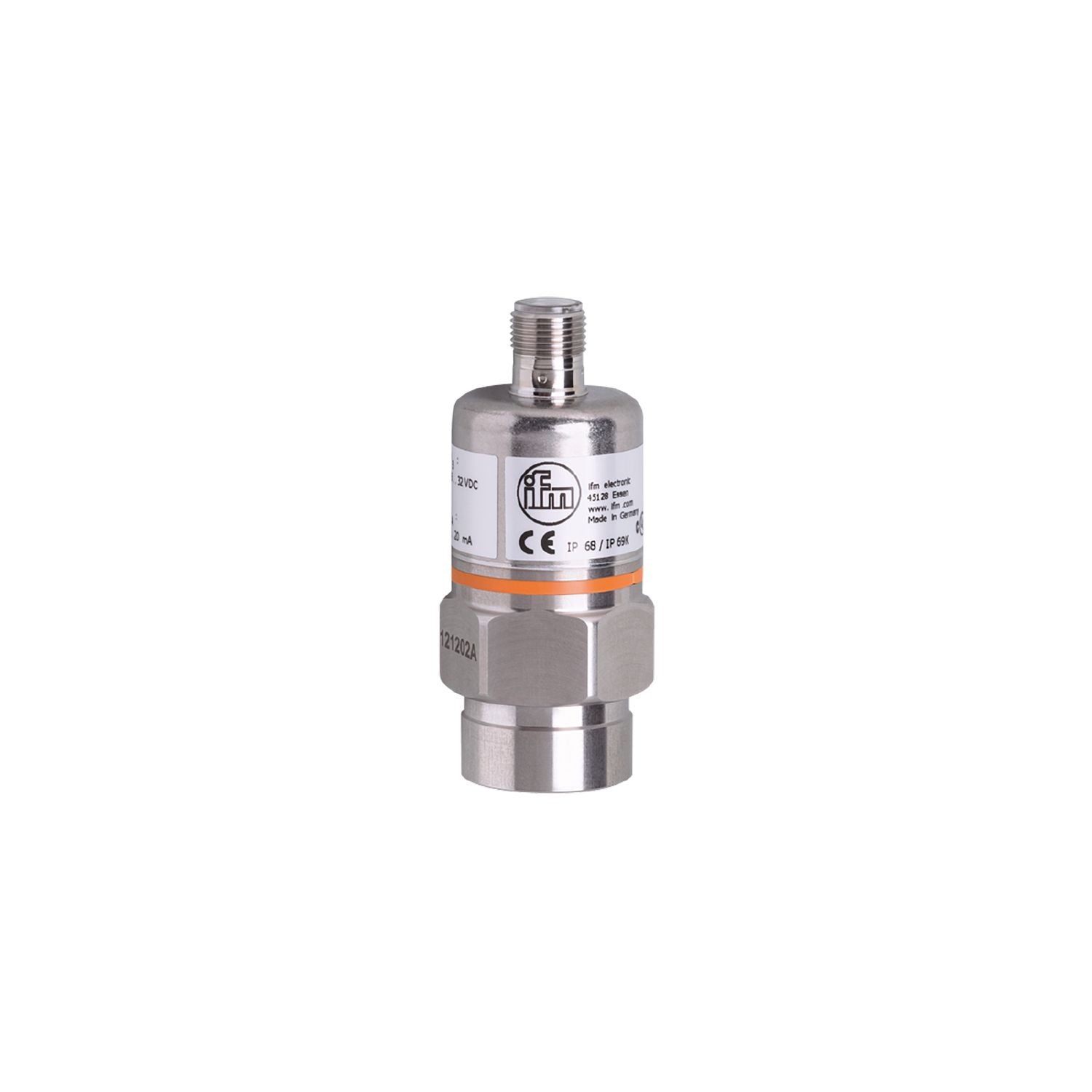

Precise linear 4...20 mA output signal. High repeatability and low linearity error. With long-term stability thanks to high overload protection. Robust stainless steel housing for use in harsh industrial environments. Wide operating temperature range
Number of inputs and outputs
Number of analogue outputs: 1
Measuring range
0...2.5 bar
0...2500 mbar
0...36 psi
0...250 kPa
Process connection
threaded connection G 1/4 internal thread
Special feature
Gold-plated contacts
Application
for industrial applications
Media
liquids and gases
Medium temperature [°C]
-25...90;(on request: -40...90 °C)
Min. bursting pressure
50 bar
725 psi
5 MPa
Pressure rating
20 bar
290 psi
2 MPa
Type of pressure
relative pressure
Operating voltage [V]
9.6...32 DC
Min. insulation resistance [MΩ]
100;(500 V DC)
Protection class
III
Reverse polarity protection
yes
Inputs / outputs
Number of inputs and outputs
Number of analogue outputs: 1
Outputs
Total number of outputs
1
Output signal
analogue signal
Number of analogue outputs
1
Analogue current output [mA]
4...20
Max. load [Ω]
720;(Ub = 24 V; (Ub - 9,6 V) / 20 mA)
Overload protection
yes
Measuring/setting range
Measuring range
0...2.5 bar
0...2500 mbar
0...36 psi
0...250 kPa
Accuracy / deviations
Repeatability [% of the span]
< 0,1;(with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]
< ± 0,25 (BFSL) / < ± 0,5 (LS);(BFSL = Best Fit Straight Line; LS = limit value setting)
Long-term stability [% of the span]
< ± 0,05;(per 6 months)
Temperature coefficient zero point [% of the span / 10 K]
0,1;(0...80 °C)
Temperature coefficient span [% of the span / 10 K]
0,2;(0...80 °C)
Response times
Step response time analogue output [ms]
3
Operating conditions
Ambient temperature [°C]
-25...80
Storage temperature [°C]
-40...100
Protection
IP 65
Tests / approvals
EMC
EN 61000-4-2 ESD
4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated
30 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-6 HF conducted
10 V
radiation of interference
according to the automotive directive 2004/104/EC
CISPR 25
immunity
according to the automotive directive 2004/104/EC
ISO 11452-2 HF radiated
100 V/m
ISO 7637-2 pulse
severity level 4
Shock resistance
DIN EN 60068-2-27
50 g (11 ms)
DIN EN 61373
category 3
Vibration resistance
DIN EN 60068-2-6
20 g (10...2000 Hz)
DIN EN 61373
category 2
MTTF [years]
506
Pressure Equipment Directive
Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Railway applications
DIN EN 50155 / IEC 60571
Klasse T3, C1, S1
Weight [g]
222.5
Materials
stainless steel (1.4404 / 316L); FKM; PA; EPDM/X
Materials (wetted parts)
stainless steel (1.4305 / 303); ceramics; FKM
Min. pressure cycles
100 million
Process connection
threaded connection G 1/4 internal thread
Restrictor element integrated
no (can be retrofitted)
anzeigen-bedienelemente
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
