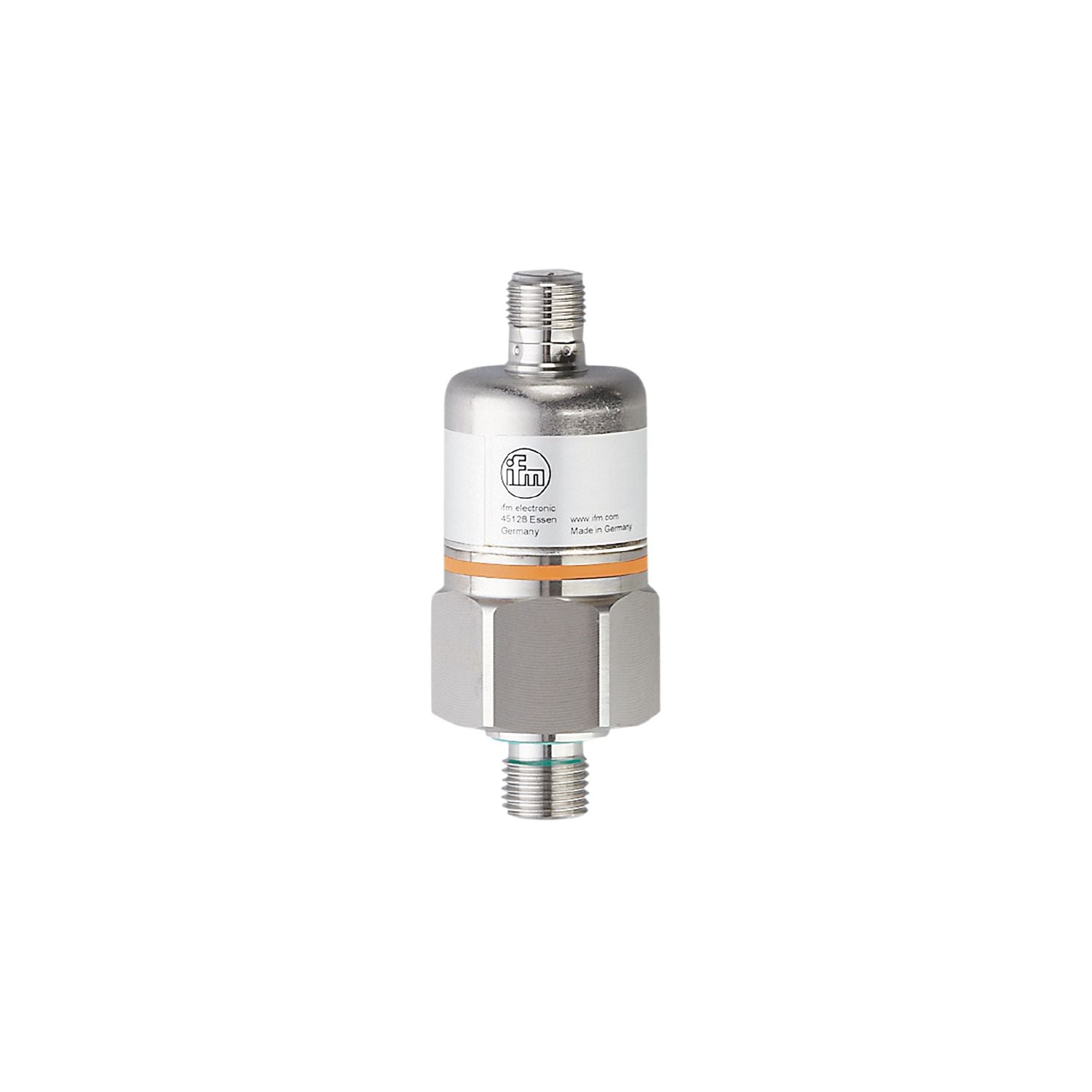

Precise linear 4...20 mA output signal. High repeatability and low linearity error. With long-term stability thanks to high overload protection. Robust stainless steel housing for use in harsh industrial environments. Large operating temperature range and high protection rating
Number of inputs and outputs
Number of analogue outputs: 1
Measuring range
0...250 bar
0...3625 psi
0...25 MPa
Process connection
threaded connection G 1/4 external thread (DIN EN ISO 1179-2); internal thread:M5
Special feature
Gold-plated contacts
Application
for industrial applications
Media
Liquids
Conditionally suitable for
use in gases at pressures > 25 bar only on request
Medium temperature [°C]
-25...90;(on request: -40...90 °C)
Min. bursting pressure
850 bar
12300 psi
85 MPa
Pressure rating
400 bar
5800 psi
40 MPa
Type of pressure
relative pressure
Operating voltage [V]
9.6...32 DC
Min. insulation resistance [MΩ]
100;(500 V DC)
Protection class
III
Reverse polarity protection
yes
Inputs / outputs
Number of inputs and outputs
Number of analogue outputs: 1
Outputs
Total number of outputs
1
Output signal
analogue signal
Number of analogue outputs
1
Analogue current output [mA]
4...20
Max. load [Ω]
720;(Ub = 24 V; (Ub - 9,6 V) / 20 mA)
Overload protection
yes
Measuring/setting range
Measuring range
0...250 bar
0...3625 psi
0...25 MPa
Accuracy / deviations
Repeatability [% of the span]
< 0,1;(with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]
< ± 0,25 (BFSL) / < ± 0,5 (LS);(BFSL = Best Fit Straight Line; LS = limit value setting)
Long-term stability [% of the span]
< ± 0,05;(per 6 months)
Temperature coefficient zero point [% of the span / 10 K]
< ± 0,1;(0...80 °C)
Temperature coefficient span [% of the span / 10 K]
< ± 0,2;(0...80 °C)
Response times
Step response time analogue output [ms]
3
Operating conditions
Ambient temperature [°C]
-25...80
Storage temperature [°C]
-40...100
Protection
IP 68; IP 69K
Tests / approvals
EMC
EN 61000-4-2 ESD
4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated
30 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-6 HF conducted
10 V
radiation of interference
according to the automotive directive 2004/104/EC
CISPR 25
immunity
according to the automotive directive 2004/104/EC
ISO 11452-2 HF radiated
100 V/m
ISO 7637-2 pulse
severity level 4
Shock resistance
DIN EN 60068-2-27
50 g (11 ms)
DIN EN 61373
category 3
Vibration resistance
DIN EN 60068-2-6
20 g (10...2000 Hz)
DIN EN 61373
category 2
MTTF [years]
507
UL approval
UL Approval no.
J007
Pressure Equipment Directive
Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
25...35;(recommended tightening torque; depends on lubrication, seal and pressure rating)
Process connection
threaded connection G 1/4 external thread (DIN EN ISO 1179-2); internal thread:M5
Restrictor element integrated
no (can be retrofitted)
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PA3521-01 — 13.04.2023 —
