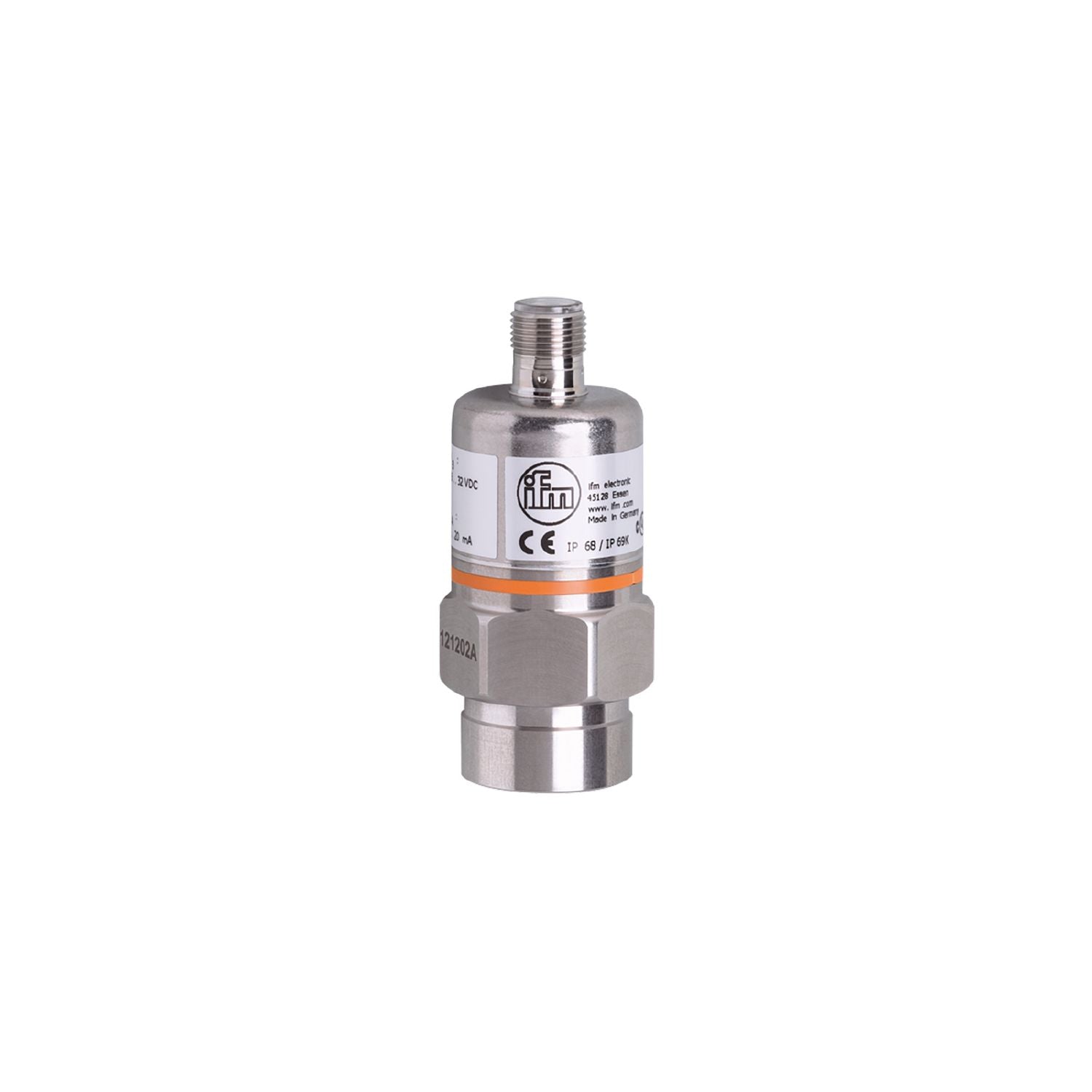

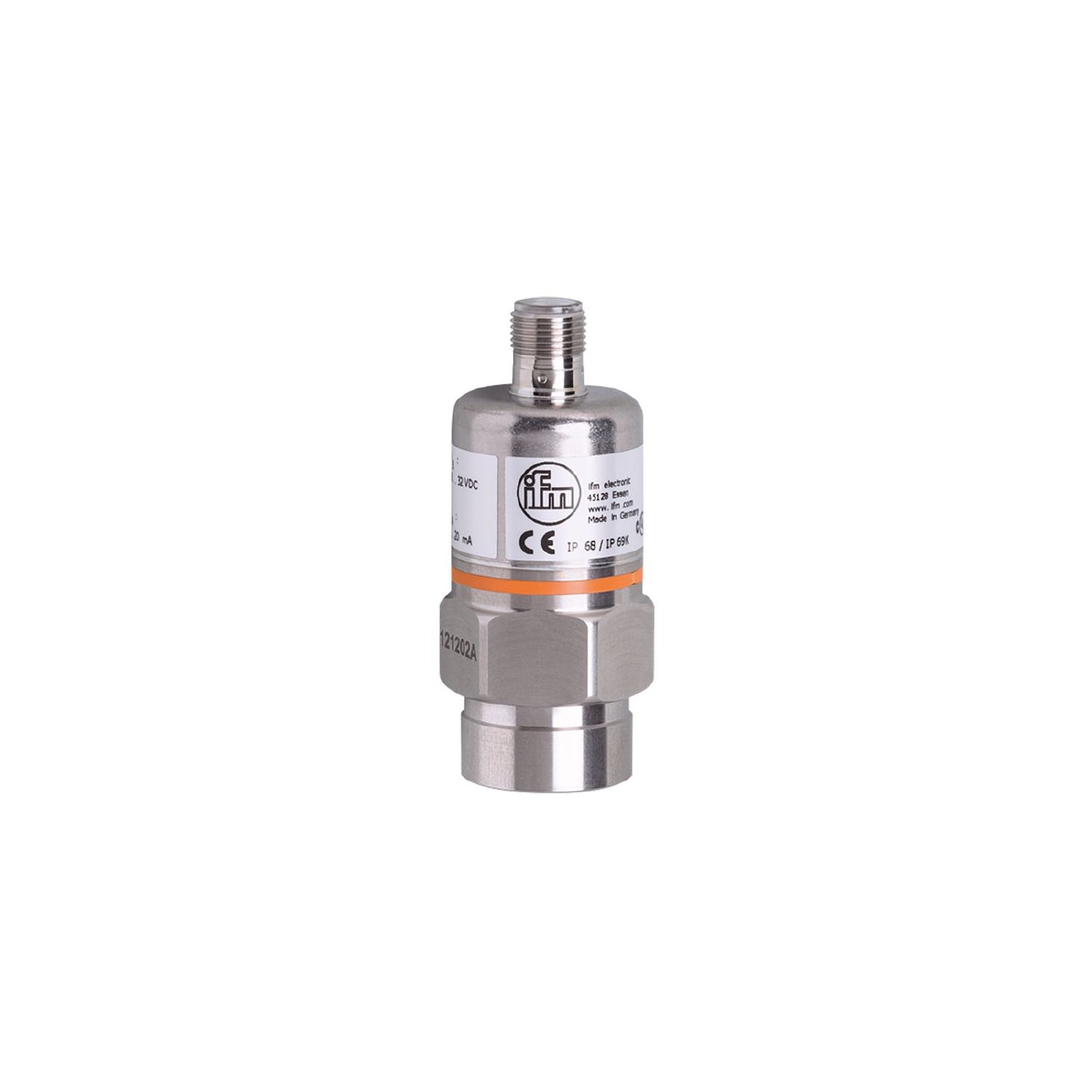

Precise linear 0...10 V output signal. High repeatability and low linearity error. With long-term stability thanks to high overload protection. Robust stainless steel housing for use in harsh industrial environments. Large operating temperature range and high protection rating
Number of inputs and outputs
Number of analogue outputs: 1
Measuring range
0...600 bar
0...8700 psi
0...60 MPa
Process connection
threaded connection G 1/4 internal thread
Special feature
Gold-plated contacts
Application
for industrial applications
Media
liquids and gases
Conditionally suitable for
use in gases at pressures > 25 bar only on request
Medium temperature [°C]
-25...90;(on request: -40...90 °C)
Min. bursting pressure
1200 bar
17400 psi
120 MPa
Pressure rating
800 bar
11600 psi
80 MPa
Type of pressure
relative pressure
Operating voltage [V]
16...32 DC
Current consumption [mA]
< 18
Min. insulation resistance [MΩ]
100;(500 V DC)
Protection class
III
Reverse polarity protection
yes
Inputs / outputs
Number of inputs and outputs
Number of analogue outputs: 1
Outputs
Total number of outputs
1
Output signal
analogue signal
Number of analogue outputs
1
Analogue voltage output [V]
0...10
Min. load resistance [Ω]
2000
Overload protection
yes
Measuring/setting range
Measuring range
0...600 bar
0...8700 psi
0...60 MPa
Accuracy / deviations
Repeatability [% of the span]
< 0,1;(with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]
< ± 0,25 (BFSL) / < ± 0,5 (LS);(BFSL = Best Fit Straight Line; LS = limit value setting)
Hysteresis deviation [% of the span]
± 1
Long-term stability [% of the span]
< ± 0,05;(per 6 months)
Temperature coefficient zero point [% of the span / 10 K]
0,1;(0...80 °C)
Temperature coefficient span [% of the span / 10 K]
0,2;(0...80 °C)
Response times
Step response time analogue output [ms]
3
Operating conditions
Ambient temperature [°C]
-25...80
Storage temperature [°C]
-40...100
Protection
IP 68; IP 69K
Tests / approvals
EMC
EN 61000-4-2 ESD
4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated
30 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-6 HF conducted
10 V
radiation of interference
according to the automotive directive 2004/104/EC
CISPR 25
immunity
according to the automotive directive 2004/104/EC
ISO 11452-2 HF radiated
100 V/m
ISO 7637-2 pulse
severity level 4
Shock resistance
DIN EN 60068-2-27
50 g (11 ms)
DIN EN 61373
category 3
Vibration resistance
DIN EN 60068-2-6
20 g (10...2000 Hz)
DIN EN 61373
category 2
MTTF [years]
478
Pressure Equipment Directive
Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Railway applications
DIN EN 50155 / IEC 60571
Klasse T3, C1, S1
Weight [g]
232
Materials
stainless steel (1.4404 / 316L); FKM; PA; EPDM/X
Materials (wetted parts)
stainless steel (1.4404 / 316L); ceramics; FKM
Min. pressure cycles
100 million
Process connection
threaded connection G 1/4 internal thread
Restrictor element integrated
yes
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PA9060-00 — 13.04.2023 —
