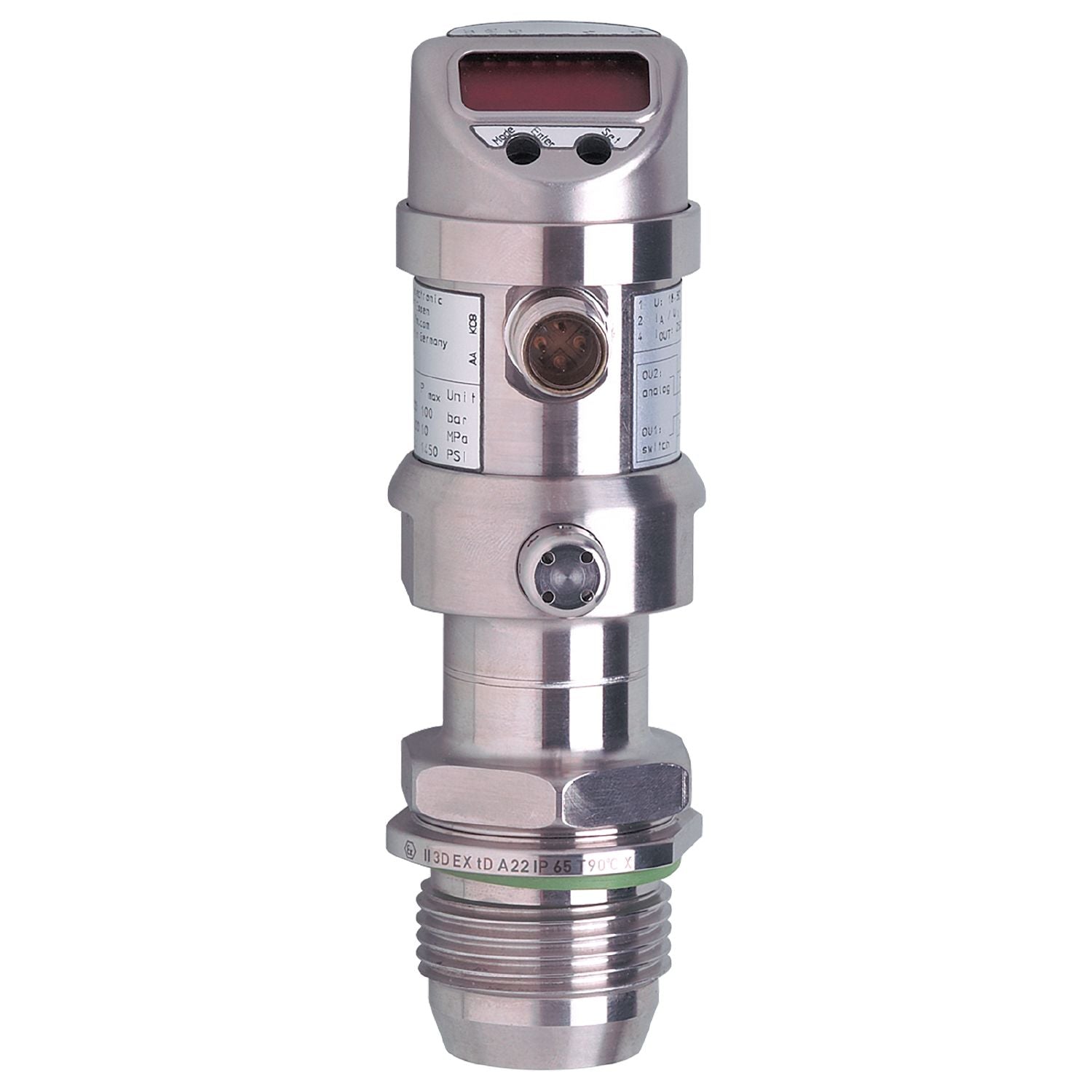

For applications in hazardous areas. With switching output and analogue output. Scalable analogue output with adjustable span and zero point. Resistant to high-pressure cleaning with aggressive cleaning agents. Clearly visible 4-digit LED display
Number of inputs and outputs
Number of digital outputs: 1; Number of analogue outputs: 1
Measuring range
-0.0124...0.25 bar
-12.4...250 mbar
-5...100.4 inH2O
-1.24...25 kPa
Process connection
threaded connection G 1 external thread sealing cone
Special feature
Gold-plated contacts
Application
food and beverage industry
Installation
freely rotatable housing 350°
Media
viscous media and liquids with suspended particles; liquids and gases
Medium temperature [°C]
-20...60;(when used outside the hazardous area:; Ambient temperature: -25...85 °C; Medium temperature: -25...125 °C / 145 °C < 1h)
Min. bursting pressure
30000 mbar
12044 inH2O
3000 kPa
Pressure rating
6000 mbar
2400 inH2O
600 kPa
Type of pressure
relative pressure; vacuum
Operating voltage [V]
18...32 DC
Current consumption [mA]
< 50
Protection class
III
Reverse polarity protection
yes
Power-on delay time [s]
0.5
Measuring principle
hydrostatic
Integrated watchdog
yes
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 1; Number of analogue outputs: 1
Outputs
Total number of outputs
2
Output signal
switching signal; analogue signal;(configurable)
Electrical design
PNP/NPN
Number of digital outputs
1
Output function
normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]
2
Permanent current rating of switching output DC [mA]
250
Switching frequency DC [Hz]
6
Number of analogue outputs
1
Analogue current output [mA]
4...20, invertible; (scalable 1:4)
Max. load [Ω]
(Ub - 10 V) / 20 mA
Analogue voltage output [V]
0...10, invertible; (scalable 1:4)
Min. load resistance [Ω]
2000
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Measuring/setting range
Measuring range
-0.0124...0.25 bar
-12.4...250 mbar
-5...100.4 inH2O
-1.24...25 kPa
Set point SP
-12...250 mbar
-4.8...100.4 inH2O
-1.2...25 kPa
Reset point rP
-12.4...249.6 mbar
-5...100.2 inH2O
-1.24...24.96 kPa
Analogue start point
-12.4...187.4 mbar
-5...75.2 inH2O
-1.24...18.74 kPa
Analogue end point
50...250 mbar
20.1...100.4 inH2O
5...25 kPa
In steps of
0.2 mbar
0.1 inH2O
0.02 kPa
Accuracy / deviations
Switch point accuracy [% of the span]
< ± 0,2;(Turn down 1:1)
Repeatability [% of the span]
< ± 0,1;(with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation [% of the span]
< ± 0,2;(Turn down 1:1 , linearity, incl. hysteresis and repeatability , limit value setting to DIN EN IEC 62828-1)
Linearity deviation [% of the span]
< ± 0,15;(Turn down 1:1)
Hysteresis deviation [% of the span]
< ± 0,15;(Turn down 1:1)
Long-term stability [% of the span]
< ± 0,1;(Turn down 1:1; per year)
Temperature coefficient zero point [% of the span / 10 K]
< ± 0,05;(0...70 °C)
Temperature coefficient span [% of the span / 10 K]
< ± 0,15;(0...70 °C)
Response times
Response time [ms]
< 100
Damping process value dAP [s]
0.1...100
Damping for the analogue output dAA [s]
0.1...100
Step response time analogue output [ms]
25
Software / programming
Parameter setting options
hysteresis / window; normally open / normally closed; switching logic; current/voltage output; Damping; adaptation of displayed values; display can be rotated and switched off; Display unit; zero point; span
