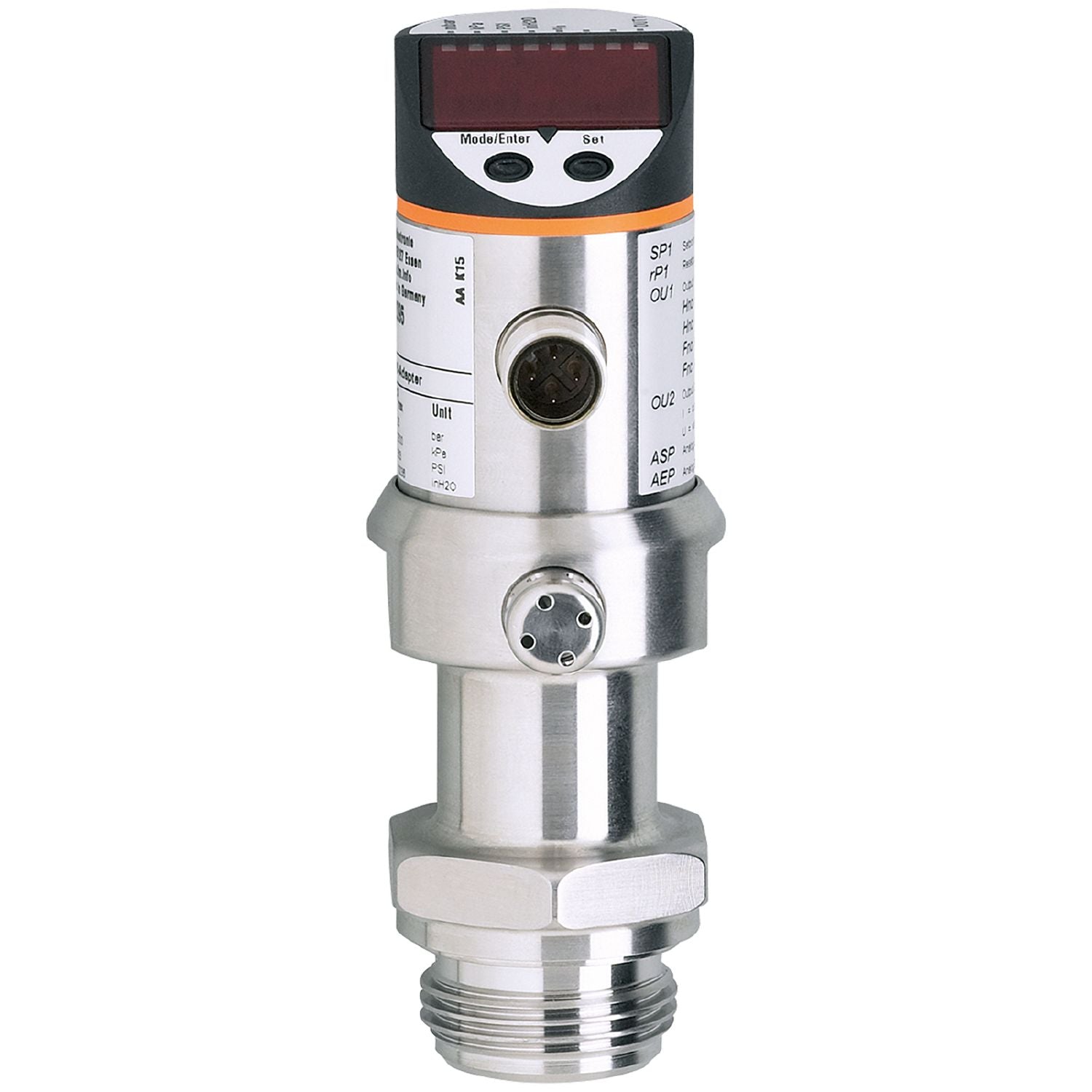

IFM PI1096 - Flush pressure sensor with display PI-2,5-RES30-E-ZVG/US/ /P

Combined level measurement and point level detection with analogue / switching output.
Resistant to high-pressure cleaning with aggressive cleaning agents.
For use in high temperatures in process technology.
Hygienic design for the requirements of the food and beverage industry.
Flush mount installation in containers, tanks and pipes

Number of inputs and outputs	Number of analogue outputs: 1
Measuring range	-0.124...2.5 bar -124...2500 mbar
Process connection	threaded connection Aseptoflex external thread Aseptoflex

Special feature	Gold-plated contacts
Application	flush mountable for the food and beverage industry
Installation	freely rotatable housing 350°
Media	viscous media and liquids with suspended particles; liquids and gases
Medium temperature [°C]	-25...125;(145 max. 1h)
Min. bursting pressure [bar]	50
Pressure rating [bar]	20
Type of pressure	relative pressure
No dead space	yes

Operating voltage [V]	20...32 DC
Min. insulation resistance [MΩ]	100;(500 V DC)
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	0.5
Switch-on peak current [mA]	6
Switch-on peak current duration [ms]	30
Integrated watchdog	yes

Inputs / outputs

Number of inputs and outputs	Number of analogue outputs: 1

Outputs

Total number of outputs	1
Output signal	analogue signal
Number of analogue outputs	1
Analogue current output [mA]	4...20, invertible; (scalable 1:4)
Max. load [Ω]	300
Overload protection	yes

Measuring/setting range

Measuring range	-0.124...2.5 bar -124...2500 mbar
Analogue start point [bar]	-0.124...1.88
Analogue end point [bar]	0.5...2.5
In steps of [bar]	0.002
Factory setting	ASP = 0.000 bar AEP = 2.500 bar

Accuracy / deviations

Repeatability [% of the span]	< ± 0,1;(with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation [% of the span]	< ± 0,2;(Turn down 1:1 , linearity, incl. hysteresis and repeatability , limit value setting to DIN EN IEC 62828-1)
Linearity deviation [% of the span]	< ± 0,15;(Turn down 1:1)
Hysteresis deviation [% of the span]	< ± 0,15;(Turn down 1:1)
Long-term stability [% of the span]	< ± 0,1;(Turn down 1:1; per year)
Temperature coefficient zero point [% of the span / 10 K]	< ± 0,05;(0...70 °C)
Temperature coefficient span [% of the span / 10 K]	< ± 0,15;(0...70 °C)

Response times

Damping for the analogue output dAA [s]	0.1...100
Max. response time analogue output [ms]	40

Software / programming

Parameter setting options	zero point; span

Operating conditions

Ambient temperature [°C]	-25...80
Storage temperature [°C]	-40...100
Protection	IP 67; IP 69K

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-5 Surge 0,5/1 kV EN 61000-4-6 HF conducted 10 V
Shock resistance	DIN IEC 68-2-27 50 g (11 ms)
Vibration resistance	DIN IEC 68-2-6 20 g (10...2000 Hz)
MTTF [years]	238

Weight [g]	403.5
Materials	stainless steel (1.4404 / 316L); PC; PBT; PEI; FKM; PTFE
Materials (wetted parts)	ceramics (99.9 % Al2O3); stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4; PTFE
Min. pressure cycles	100 million
Process connection	threaded connection Aseptoflex external thread Aseptoflex

Displays / operating elements

Display	Display unit 6 x LED, green function display alphanumeric display, 4-digit measured values alphanumeric display, 4-digit
Display unit	bar; kPa; psi; inH2O; mWS; % of the span

Remarks	The 3-A qualification is only valid if adapters with 3-A qualification are used for installation.
Notes	Please do not use for new projects.; no more adapters available as accessories
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
