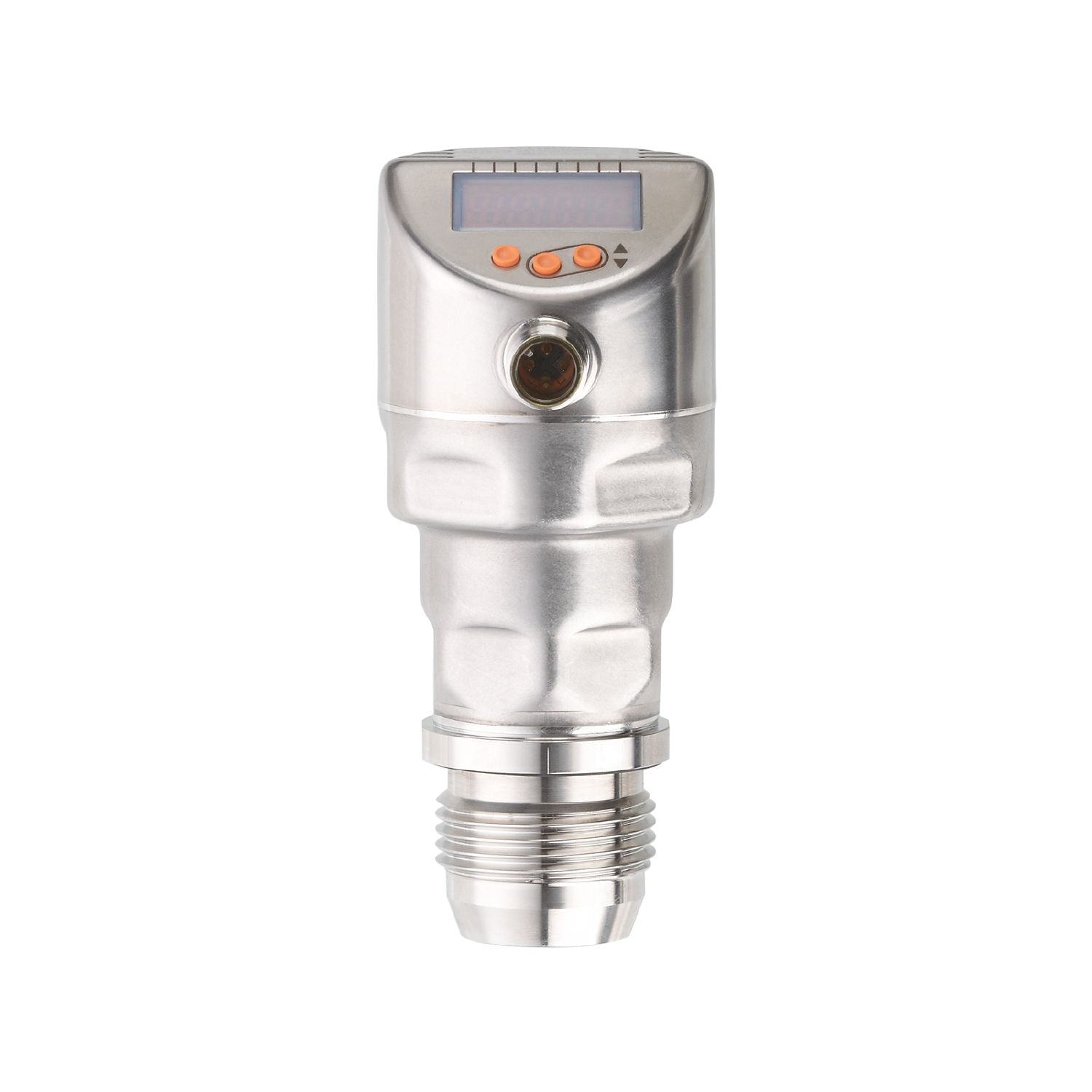

IFM PI1602 - Flush pressure sensor with display PI-100-REA01-MFRKG/US/ /P

Robust stainless steel design for the requirements of the food and beverage industry.
Hygienic, flush design.
Resistant to high-pressure cleaning with aggressive cleaning agents.
High temperature resistance and high protection rating.
Programmable analogue and switching output

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1
Measuring range	-1...100 bar -14...1450 psi -0.1...10 MPa
Process connection	threaded connection G 1 external thread sealing cone

Special feature	Gold-plated contacts
Application	flush mountable for the food and beverage industry
Media	viscous media and liquids with suspended particles; liquids and gases; use in gases at pressures > 25 bar only on request
Medium temperature [°C]	-25...150
Min. bursting pressure	650 bar 9425 psi 65 MPa
Pressure rating	200 bar 2900 psi 20 MPa
Vacuum resistance [mbar]	-1000
Type of pressure	relative pressure; vacuum
No dead space	yes

Min. insulation resistance [MΩ]	100;(500 V DC)
Protection class	III
Reverse polarity protection	yes
Integrated watchdog	yes

Operating voltage [V]	20...30 DC
Current consumption [mA]	3.5...21.5
Power-on delay time [s]	< 1

Operating voltage [V]	18...30 DC
Current consumption [mA]	5...45;(430 bei max. Laststrom)
Power-on delay time [s]	< 0.5

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1

Outputs

Total number of outputs	2
Output signal	switching signal; analogue signal; IO-Link
Electrical design	PNP/NPN
Number of digital outputs	2
Output function	normally open / normally closed;(parameterisable)
Number of analogue outputs	1
Analogue current output [mA]	4...20, invertible; (scalable)
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Max. load [Ω]	300

Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	125
Max. load [Ω]	(Ub - 10 V) / 21,5 mA; 650Ω (Ub = 24 V)

Measuring/setting range

Measuring range	-1...100 bar -14...1450 psi -0.1...10 MPa
Set point SP	-0.9...100 bar -12...1450 psi -0.09...10 MPa
Reset point rP	-1...99.9 bar -15...1448 psi -0.1...9.9 MPa
Analogue start point	-1...80 bar -15...1160 psi -0.1...8 MPa
Analogue end point	19...100 bar 276...1450 psi 1.9...10 MPa
Min. difference between SP and rP	0.2 bar 3 psi 0.02 MPa
In steps of	0.1 bar 1 psi 0.01 MPa
Factory setting	SP1 = 25 bar rP1 = 23 bar SP2 = 75 bar rP2 = 73 bar ASP = 0.00 bar AEP = 100 bar dAP = 0.06 s dAA = 0.06 s

Measuring range	-25...150 °C -13...302 °F

Accuracy / deviations

Switch point accuracy [% of the span]	< ± 0,5;(DIN EN IEC 62828-1; Turn down 1:1)
Repeatability [% of the span]	< ± 0,1;(with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation [% of the span]	< ± 0,5;(DIN IEC EN 62828-1 incl. zero point and span error, non-linearity, hysteresis; Turn down 1:1)
Linearity deviation [% of the span]	< ± 0,15;(Turn down 1:1)
Hysteresis deviation [% of the span]	< ± 0,15;(Turn down 1:1)
Long-term stability [% of the span]	< ± 0,1;(Turn down 1:1; per year)
Total deviation over temperature range	Temperature range total deviation -25...15 °C Characteristics deviation ± 0,15 % of the span / 10 K 15...80 °C Characteristics deviation 80...150 °C Characteristics deviation ± 0,2 % of the span / 10 K
Notes on the accuracy / deviation	for further details see section Diagrams and graphs

Accuracy [K]	± 2,5+ (0,08 x ( Umgebungstemperatur - Mediumtemperatur ))
Repeatability [K]	± 0,2
Resolution [K]	0.2

Response times

Damping process value dAP [s]	0...99.99
Damping for the analogue output dAA [s]	0...99.99

Step response time analogue output [ms]	30

Min. response time of switching output (dAP) [ms]	3
Step response time analogue output [ms]	7

Dynamic response T05 / T09 [s]	< 35 / < 135;(DIN EN 60751 water ; > 0,9 m/s)

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Identification and Diagnosis (0x4000), Measurement Data Channel (0x800A)
SIO mode	yes
Required master port type	A
Min. process cycle time [ms]	5.6
IO-Link resolution pressure [bar]	0.005
IO-Link resolution temperature [K]	0.2
IO-Link process data (cyclical)	function bit length pressure 32 temperature 32 device status 4 binary switching information 2
IO-Link functions (acyclical)	application specific tag; internal temperature; operating hours counter; switching cycles counter; Pressure peak counter
Supported DeviceIDs	Type of operation DeviceID default 1150

Operating conditions

Ambient temperature [°C]	-25...80
Storage temperature [°C]	-40...100
Protection	IP 67; IP 68; IP 69K

Tests / approvals

EMC	DIN EN 61326-1
Shock resistance	DIN EN 60068-2-27 50 g (11 ms)
Vibration resistance	DIN EN 60068-2-6 20 g (10...2000 Hz)
MTTF [years]	214
Note on approval	factory certificate available as download at www.factory-certificate.ifm
UL approval	UL Approval no. J034 File number UL E174189

Weight [g]	395.1
Materials	stainless steel (1.4404 / 316L); FKM; PTFE; PBT; PEI; PFA
Materials (wetted parts)	ceramics (99.9 % Al2O3); stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4; PTFE
Min. pressure cycles	100 million
Tightening torque [Nm]	20
Process connection	threaded connection G 1 external thread sealing cone

Displays / operating elements

Display	Display unit LED, green switching status LED, yellow function display alphanumeric display, 4-digit measured values alphanumeric display, 4-digit
Display unit	bar; psi; MPa

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated

Diagrams and graphs

	X temperature Y total deviation
