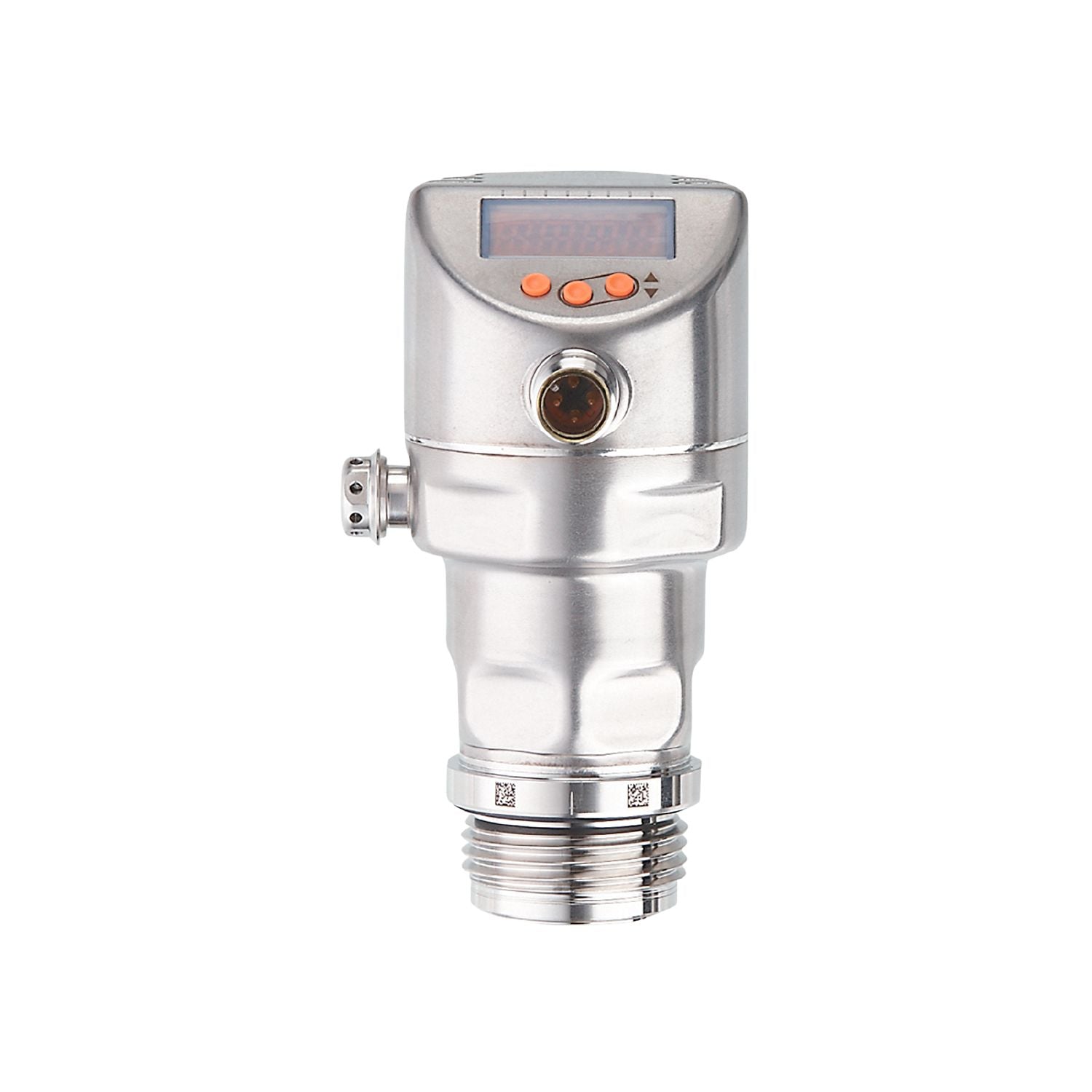

Robust stainless steel design for the requirements of the food and beverage industry. Hygienic, flush design. Resistant to high-pressure cleaning with aggressive cleaning agents. High temperature resistance and high protection rating. Programmable analogue and switching output
Number of inputs and outputs
Number of digital outputs: 2; Number of analogue outputs: 1
Measuring range
-100...1600 mbar
-1.46...23.2 psi
-40...642.5 inH2O
-10...160 kPa
Process connection
threaded connection G 1 external thread Aseptoflex Vario
Special feature
Gold-plated contacts
Application
flush mountable for the food and beverage industry
Media
viscous media and liquids with suspended particles; liquids and gases
Medium temperature [°C]
-25...150
Min. bursting pressure
40000 mbar
580 psi
4000 kPa
Pressure rating
15000 mbar
215 psi
1500 kPa
Vacuum resistance [mbar]
-1000
Type of pressure
relative pressure; vacuum
No dead space
yes
MAWP (for applications according to CRN) [bar]
1.6
Min. insulation resistance [MΩ]
100;(500 V DC)
Protection class
III
Reverse polarity protection
yes
Integrated watchdog
yes
2-wire
Operating voltage [V]
20...30 DC
Current consumption [mA]
3.5...21.5
Power-on delay time [s]
< 1
3-wire
Operating voltage [V]
18...30 DC
Current consumption [mA]
5...45;(430 bei max. Laststrom)
Power-on delay time [s]
< 0.5
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 2; Number of analogue outputs: 1
Outputs
Total number of outputs
2
Output signal
switching signal; analogue signal; IO-Link
Electrical design
PNP/NPN
Number of digital outputs
2
Output function
normally open / normally closed;(parameterisable)
Number of analogue outputs
1
Analogue current output [mA]
4...20, invertible; (scalable)
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
2-wire
Max. load [Ω]
300
3-wire
Max. voltage drop switching output DC [V]
2
Permanent current rating of switching output DC [mA]
100
Switching frequency DC [Hz]
125
Max. load [Ω]
(Ub - 10 V) / 21,5 mA; 650Ω (Ub = 24 V)
Measuring/setting range
Measuring range
-100...1600 mbar
-1.46...23.2 psi
-40...642.5 inH2O
-10...160 kPa
Set point SP
-98...1600 mbar
-1.42...23.21 psi
-39.2...642.3 inH2O
-9.8...160 kPa
Reset point rP
-100...1598 mbar
-1.45...23.17 psi
-40.1...641.4 inH2O
-10...159.8 kPa
Analogue start point
-100...1272 mbar
-1.45...18.45 psi
-40.1...510.6 inH2O
-10...127.2 kPa
Analogue end point
228...1600 mbar
3.31...23.21 psi
91.6...642.3 inH2O
22.8...160 kPa
Min. difference between SP and rP
3 mbar
0.04 psi
1 inH2O
0.3 kPa
In steps of
1 mbar
0.01 psi
0.1 inH2O
0.1 kPa
Factory setting
SP1 =400 mbar
rP1 = 368 mbar
SP2 = 1200 mbar
rP2 = 1168 mbar
ASP = 0.00 mbar
AEP = 1600 mbar
dAP = 2.00 s
dAA =2.00 s
Temperature monitoring
Measuring range
-25...150 °C
-13...302 °F
Accuracy / deviations
Switch point accuracy [% of the span]
< ± 0,2;(DIN EN IEC 62828-1; Turn down 1:1)
Repeatability [% of the span]
< ± 0,1;(with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation [% of the span]
< ± 0,2;(DIN IEC EN 62828-1 incl. zero point and span error, non-linearity, hysteresis; Turn down 1:1)
Linearity deviation [% of the span]
< ± 0,15;(Turn down 1:1)
Hysteresis deviation [% of the span]
< ± 0,15;(Turn down 1:1)
Long-term stability [% of the span]
< ± 0,1;(Turn down 1:1; per year)
Total deviation over temperature range
Temperature range
total deviation
-25...15 °C
Characteristics deviation ± 0,05 % of the span / 10 K
15...80 °C
Characteristics deviation
80...150 °C
Characteristics deviation ± 0,1 % of the span / 10 K
Notes on the accuracy / deviation
for further details see section Diagrams and graphs
Temperature monitoring
Accuracy [K]
± 2,5+ (0,08 x ( Umgebungstemperatur - Mediumtemperatur ))
Repeatability [K]
± 0,2
Resolution [K]
0.2
Response times
Damping process value dAP [s]
0...99.99
Damping for the analogue output dAA [s]
0...99.99
2-wire
Step response time analogue output [ms]
30
3-wire
Min. response time of switching output (dAP) [ms]
3
Step response time analogue output [ms]
7
Temperature monitoring
Dynamic response T05 / T09 [s]
< 35 / < 135;(DIN EN 60751 water ; > 0,9 m/s)
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
Profiles
Identification and Diagnosis (0x4000), Measurement Data Channel (0x800A)
threaded connection G 1 external thread Aseptoflex Vario
Displays / operating elements
Display
Display unit
LED, green
switching status
LED, yellow
function display
alphanumeric display, 4-digit
measured values
alphanumeric display, 4-digit
Display unit
mbar; psi; kPa; inH2O
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
Diagrams and graphs
ambient temperature influence on the accuracy
X
temperature
Y
total deviation
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PI1717-00 — 05.08.2022 —
