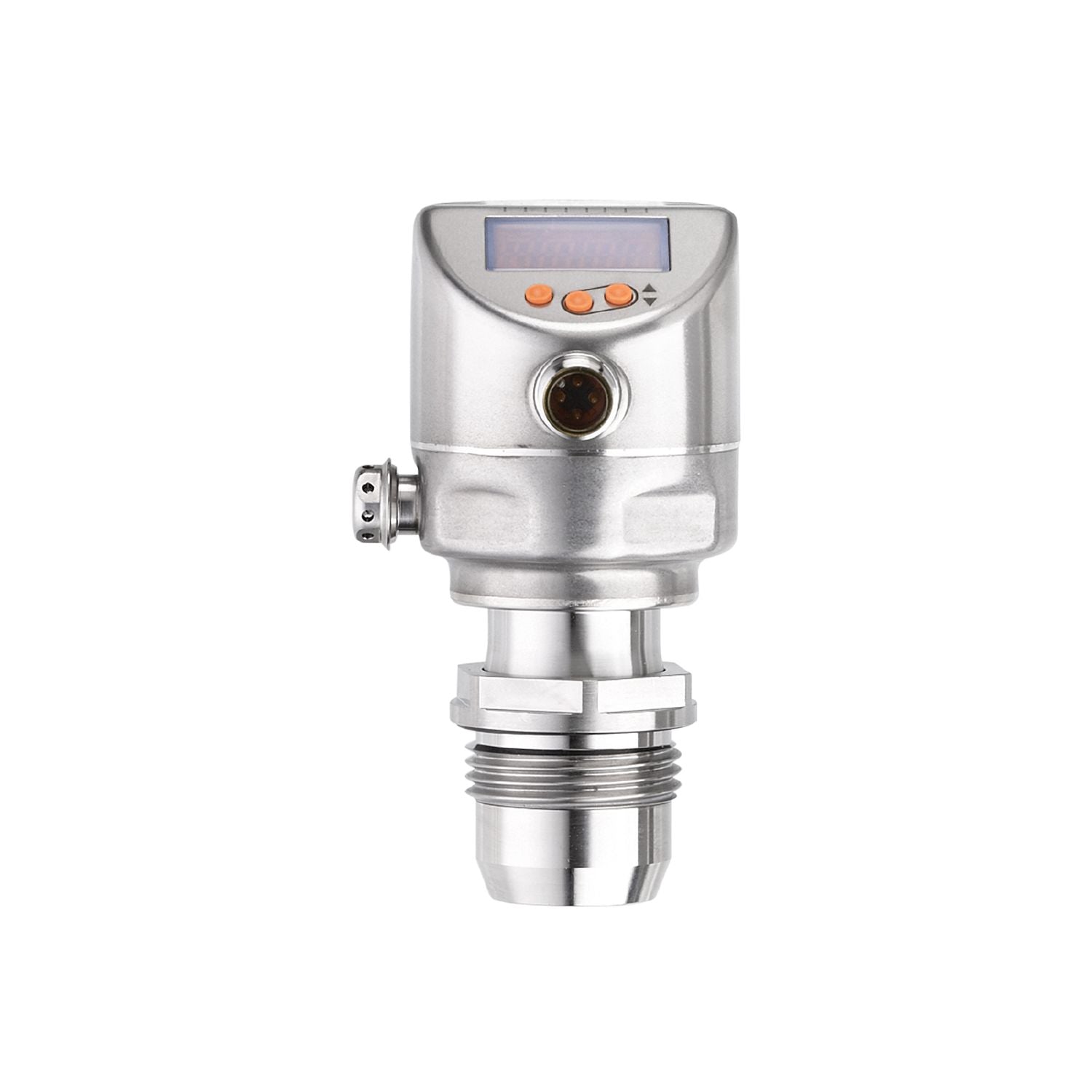

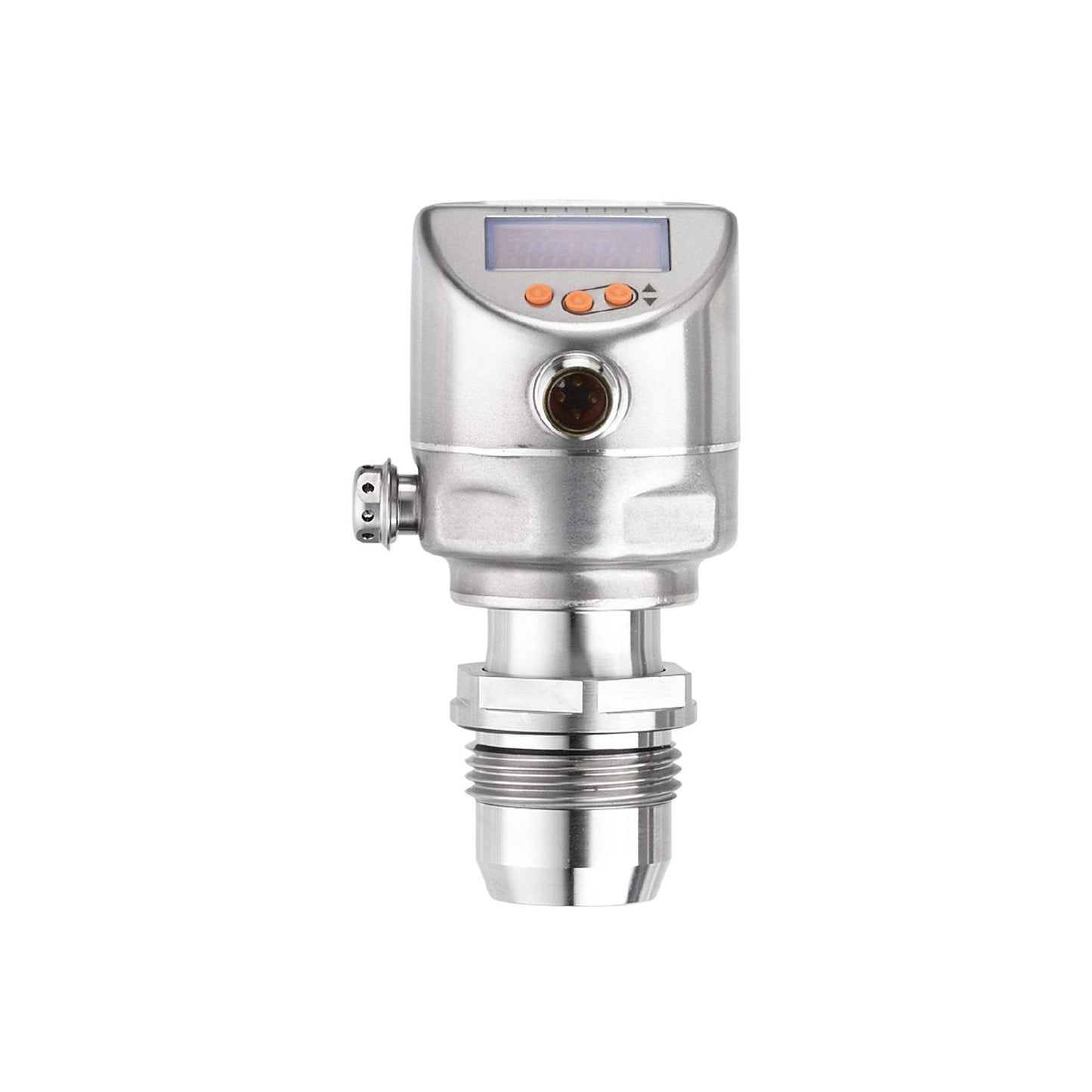

Robust stainless steel design for the requirements of the food and beverage industry. Hygienic, flush design. Resistant to high-pressure cleaning with aggressive cleaning agents. High temperature resistance and high protection rating. Programmable analogue and switching output
Number of inputs and outputs
Number of digital outputs: 2; Number of analogue outputs: 1
Measuring range
-1...4 bar
-14.5...58 psi
-100...400 kPa
Process connection
threaded connection G 1 external thread sealing cone Attention: The unit must only be installed in a process connection for G1 sealing cone.; The G1A sealing cone of the unit is only suited for adapters with metal end stop.
Special feature
Gold-plated contacts
Application
flush mountable for the food and beverage industry
Media
viscous media and liquids with suspended particles; liquids and gases
Medium temperature [°C]
-25...150
Min. bursting pressure
100 bar
1450 psi
10000 MPa
Pressure rating
30 bar
435 psi
3000 kPa
Vacuum resistance [mbar]
-1000
Type of pressure
relative pressure; vacuum
No dead space
yes
MAWP (for applications according to CRN) [bar]
30
Min. insulation resistance [MΩ]
100;(500 V DC)
Protection class
III
Reverse polarity protection
yes
Integrated watchdog
yes
2-wire
Operating voltage [V]
20...30 DC
Current consumption [mA]
3.5...21.5
Power-on delay time [s]
< 1
3-wire
Operating voltage [V]
18...30 DC
Current consumption [mA]
5...45;(430 bei max. Laststrom)
Power-on delay time [s]
< 0.5
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 2; Number of analogue outputs: 1
Outputs
Total number of outputs
2
Output signal
switching signal; analogue signal; IO-Link
Electrical design
PNP/NPN
Number of digital outputs
2
Output function
normally open / normally closed;(parameterisable)
Number of analogue outputs
1
Analogue current output [mA]
4...20, invertible; (scalable)
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
2-wire
Max. load [Ω]
300
3-wire
Max. voltage drop switching output DC [V]
2
Permanent current rating of switching output DC [mA]
100
Switching frequency DC [Hz]
125
Max. load [Ω]
(Ub - 10 V) / 21,5 mA; 650Ω (Ub = 24 V)
Measuring/setting range
Measuring range
-1...4 bar
-14.5...58 psi
-100...400 kPa
Set point SP
-0.994...4 bar
-14.4...58 psi
-99.4...400 kPa
Reset point rP
-1...3.994 bar
-14.5...57.9 psi
-100...399.4 kPa
Analogue start point
-1...3.2 bar
-14.5...46.4 psi
-100...320 kPa
Analogue end point
0.2...4 bar
-2.9...58 psi
-20...400 kPa
Min. difference between SP and rP
0.006 bar
0.1 psi
0.6 kPa
In steps of
0.001 bar
0.1 psi
0.1 kPa
Factory setting
SP1 = 1.00 bar
rP1 = 0.92 bar
SP2 = 3.00 bar
rP2 = 2.92 bar
ASP = 0.00 bar
AEP = 4.00 bar
dAP = 2.00 s
dAA =2.00 s
Temperature monitoring
Measuring range
-25...150 °C
-13...302 °F
Accuracy / deviations
Switch point accuracy [% of the span]
< ± 0,2;(DIN EN IEC 62828-1; Turn down 1:1)
Repeatability [% of the span]
< ± 0,1;(with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation [% of the span]
< ± 0,2;(DIN IEC EN 62828-1 incl. zero point and span error, non-linearity, hysteresis; Turn down 1:1)
Linearity deviation [% of the span]
< ± 0,15;(Turn down 1:1)
Hysteresis deviation [% of the span]
< ± 0,15;(Turn down 1:1)
Long-term stability [% of the span]
< ± 0,1;(Turn down 1:1; per year)
Total deviation over temperature range
Temperature range
total deviation
-25...15 °C
Characteristics deviation ± 0,05 % of the span / 10 K
15...80 °C
Characteristics deviation
80...150 °C
Characteristics deviation ± 0,1 % of the span / 10 K
Notes on the accuracy / deviation
for further details see section Diagrams and graphs
Temperature monitoring
Accuracy [K]
± 2,5+ (0,08 x ( Umgebungstemperatur - Mediumtemperatur ))
Repeatability [K]
± 0,2
Resolution [K]
0.2
Response times
Damping process value dAP [s]
0...99.99
Damping for the analogue output dAA [s]
0...99.99
2-wire
Step response time analogue output [ms]
30
3-wire
Min. response time of switching output (dAP) [ms]
3
Step response time analogue output [ms]
7
Temperature monitoring
Dynamic response T05 / T09 [s]
< 35 / < 135;(DIN EN 60751 water ; > 0,9 m/s)
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
Profiles
Identification and Diagnosis (0x4000), Measurement Data Channel (0x800A)
threaded connection G 1 external thread sealing cone Attention: The unit must only be installed in a process connection for G1 sealing cone.; The G1A sealing cone of the unit is only suited for adapters with metal end stop.
Displays / operating elements
Display
Display unit
LED, green
switching status
LED, yellow
function display
alphanumeric display, 4-digit
measured values
alphanumeric display, 4-digit
Display unit
bar; psi; kPa
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
Diagrams and graphs
ambient temperature influence on the accuracy
X
temperature
Y
total deviation
