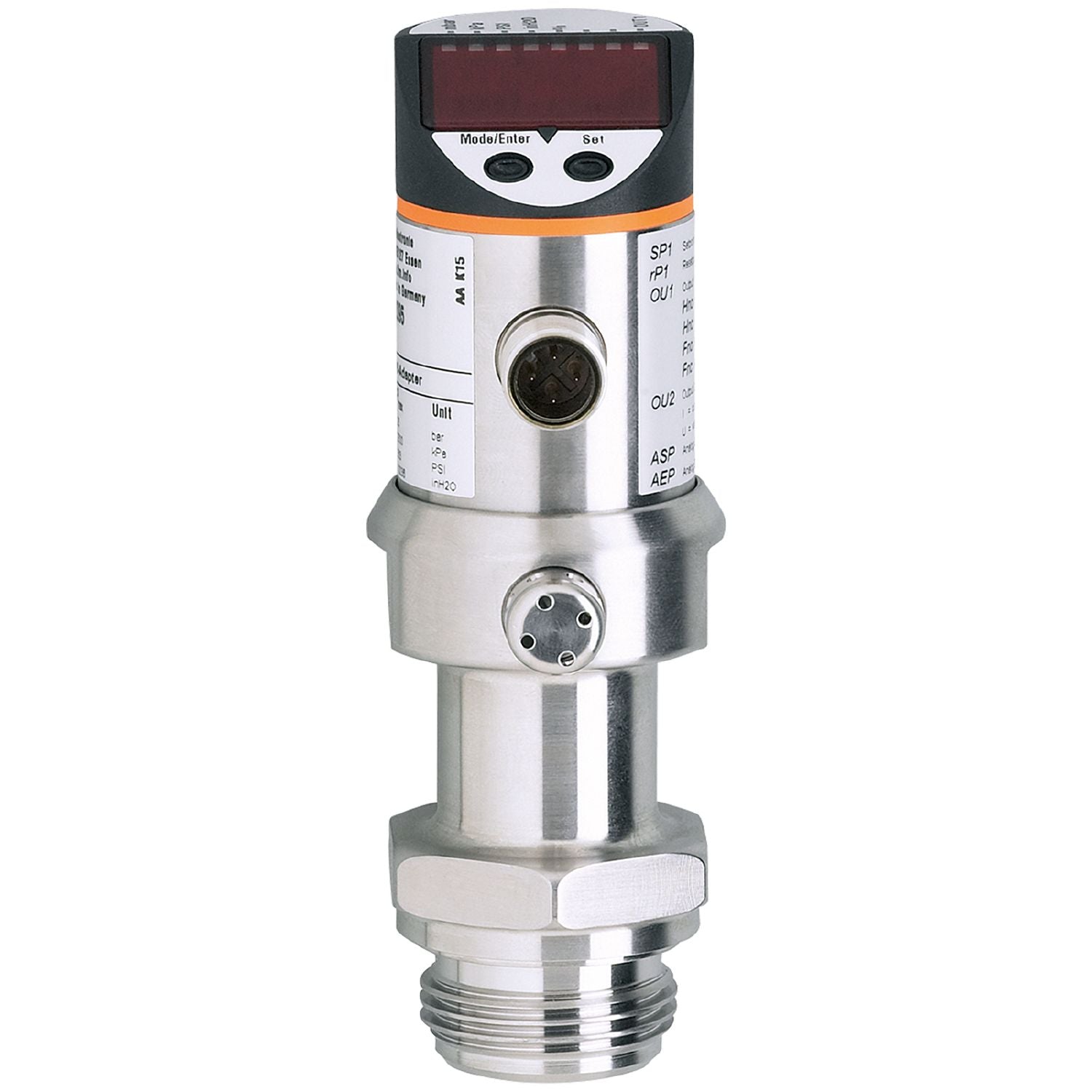

Combined level measurement and point level detection with analogue / switching output. Resistant to high-pressure cleaning with aggressive cleaning agents. For use in high temperatures in process technology. Hygienic design for the requirements of the food and beverage industry. Flush mount installation in containers, tanks and pipes
Number of inputs and outputs
Number of digital outputs: 1; Number of analogue outputs: 1
flush mountable for the food and beverage industry
Installation
freely rotatable housing 350°
Media
viscous media and liquids with suspended particles; liquids and gases
Medium temperature [°C]
-25...125;(145 max. 1h)
Min. bursting pressure
100 bar
1450 psi
10000 kPa
Pressure rating
30 bar
435 psi
3000 kPa
Type of pressure
relative pressure
No dead space
yes
Operating voltage [V]
18...32 DC
Current consumption [mA]
< 50
Min. insulation resistance [MΩ]
100;(500 V DC)
Protection class
III
Reverse polarity protection
yes
Power-on delay time [s]
0.5
Integrated watchdog
yes
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 1; Number of analogue outputs: 1
Outputs
Total number of outputs
2
Output signal
switching signal; analogue signal;(configurable)
Electrical design
PNP/NPN
Number of digital outputs
1
Output function
normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]
2
Permanent current rating of switching output DC [mA]
250
Switching frequency DC [Hz]
6
Number of analogue outputs
1
Analogue current output [mA]
4...20, invertible; (scalable 1:4)
Max. load [Ω]
(Ub - 10 V) / 20 mA
Analogue voltage output [V]
0...10, invertible; (scalable 1:4)
Min. load resistance [Ω]
2000
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Measuring/setting range
Measuring range
-1...4 bar
-14.5...58 psi
-100...400 kPa
Set point SP
-0.99...4 bar
-14.35...58 psi
-99...400 kPa
Reset point rP
-1...3.99 bar
-14.5...57.85 psi
-100...399 kPa
Analogue start point
-1...3 bar
-14.5...43.5 psi
-100...300 kPa
Analogue end point
0...4 bar
0...58 psi
0...400 kPa
In steps of
0.005 bar
0.05 psi
0.5 kPa
Factory setting
SP1 = 1.000 bar
rP1 = 0.920 bar
ASP = 0.000 bar
AEP = 4.000 bar
Accuracy / deviations
Switch point accuracy [% of the span]
< ± 0,2;(Turn down 1:1)
Repeatability [% of the span]
< ± 0,1;(with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation [% of the span]
< ± 0,2;(Turn down 1:1 , linearity, incl. hysteresis and repeatability , limit value setting to DIN EN IEC 62828-1)
Linearity deviation [% of the span]
< ± 0,15;(Turn down 1:1)
Hysteresis deviation [% of the span]
< ± 0,15;(Turn down 1:1)
Long-term stability [% of the span]
< ± 0,1;(Turn down 1:1; per year)
Temperature coefficient zero point [% of the span / 10 K]
< ± 0,05;(0...70 °C)
Temperature coefficient span [% of the span / 10 K]
< ± 0,15;(0...70 °C)
Response times
Response time [ms]
< 100
Damping process value dAP [s]
0.1...100
Damping for the analogue output dAA [s]
0.1...100
Step response time analogue output [ms]
25
Software / programming
Parameter setting options
hysteresis / window; normally open / normally closed; switching logic; current/voltage output; Damping; adaptation of displayed values; display can be rotated and switched off; Display unit; zero point; span
The 3-A qualification is only valid if adapters with 3-A qualification are used for installation.
Notes
Please do not use for new projects.; no more adapters available as accessories
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
