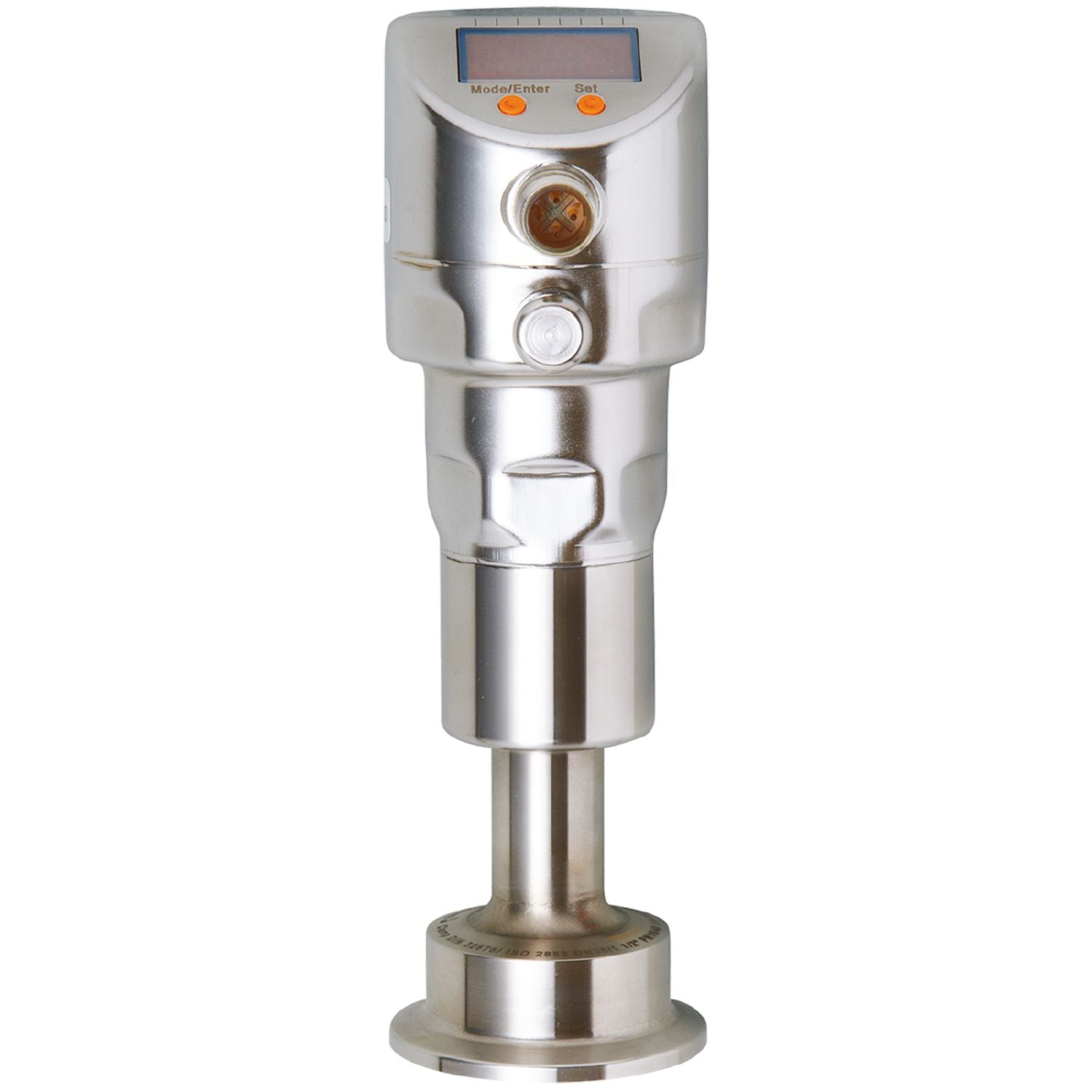

IFM PI2204 - Flush pressure sensor with display PI-010-REZ01-MFRKG/US/ /P

For use in high temperatures in the food and beverage industry.
Robust stainless steel housing with hygienic front-flush design.
With two-wire and three-wire connection technology.
Reduced wiring complexity when operated as two-wire current loop.
Integrated clamp diaphragm seal with stainless steel membrane

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1
Measuring range	-1...10 bar -14.5...145 psi -0.1...1 MPa
Process connection	Clamp DN40 (1,5") DIN 32676 (ISO 2852)

Special feature	Gold-plated contacts
Application	flush mountable for the food and beverage industry
Media	viscous media and liquids with suspended particles; liquids and gases
Medium temperature [°C]	-20...200
Min. bursting pressure	100 bar 1450 psi 10 MPa
Pressure rating	50 bar 725 psi 5 MPa
Type of pressure	relative pressure; vacuum

Min. insulation resistance [MΩ]	100;(500 V DC)
Protection class	III
Reverse polarity protection	yes
Integrated watchdog	yes

Operating voltage [V]	20...32 DC
Current consumption [mA]	3.6...21
Power-on delay time [s]	1

Operating voltage [V]	18...32 DC
Current consumption [mA]	< 45
Power-on delay time [s]	0.5

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1

Outputs

Total number of outputs	2
Output signal	switching signal; analogue signal; IO-Link;(configurable)
Electrical design	PNP/NPN
Number of digital outputs	2
Output function	normally open / normally closed;(parameterisable)
Number of analogue outputs	1
Analogue current output [mA]	4...20, invertible; (scalable)
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Max. load [Ω]	300

Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	125
Max. load [Ω]	(Ub - 10 V) / 20 mA

Measuring/setting range

Measuring range	-1...10 bar -14.5...145 psi -0.1...1 MPa
Set point SP	-0.98...10 bar -14.2...145 psi -0.098...1 MPa
Reset point rP	-1...9.98 bar -14.5...144.7 psi -0.1...0.998 MPa
Analogue start point	-1...7.5 bar -14.5...108.7 psi -0.1...0.75 MPa
Analogue end point	1.5...10 bar 21.8...145 psi 0.15...1 MPa
In steps of	0.01 bar 0.1 psi 0.001 MPa
Factory setting	SP1 = 2.50 bar rP1 = 2.30 bar SP2 = 7.50 bar rP2 = 7.30 bar ASP = 0.00 bar AEP = 10.00 bar

Accuracy / deviations

Switch point accuracy [% of the span]	< ± 0,2;(Turn down 1:1)
Repeatability [% of the span]	< ± 0,1;(with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation [% of the span]	< ± 0,2;(Turn down 1:1 , linearity, incl. hysteresis and repeatability , limit value setting to DIN EN IEC 62828-1)
Linearity deviation [% of the span]	< ± 0,15;(Turn down 1:1)
Hysteresis deviation [% of the span]	< ± 0,15;(Turn down 1:1)
Long-term stability [% of the span]	< ± 0,1;(Turn down 1:1; per year)
Temperature coefficient zero point [% of the span / 10 K]	< ± 0,2;(0...200 °C)
Temperature coefficient span [% of the span / 10 K]	< ± 0,15;(0...200 °C)

Response times

Damping process value dAP [s]	0...30
Damping for the analogue output dAA [s]	0.01...99.99

Step response time analogue output [ms]	45

Min. response time of switching output (dAP) [ms]	3
Step response time analogue output [ms]	7

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.0
SDCI standard	IO-Link Communication Specification, Version 1.0, January 2009, Ordner No: 10.002
Profiles	no profile
SIO mode	yes
Required master port type	A
Process data analogue	1
Process data binary	2
Min. process cycle time [ms]	2.3
Supported DeviceIDs	Type of operation DeviceID default 157

Operating conditions

Ambient temperature [°C]	-25...80
Note on ambient temperature	Medium temperature: ≤ 160 °C
Ambient temperature [°C]	-25...65
Note on ambient temperature	Medium temperature: ≤ 200 °C
Storage temperature [°C]	-25...100
Protection	IP 67; IP 68; IP 69K

Tests / approvals

EMC	DIN EN 61000-6-2 DIN EN 61000-6-3
Shock resistance	DIN EN 60068-2-27 50 g (11 ms)
Vibration resistance	DIN EN 60068-2-6 20 g (10...2000 Hz)
MTTF [years]	142
Note on approval	Including free 6-point calibration certificate.

Weight [g]	1053
Materials	stainless steel (1.4404 / 316L); stainless steel (1.4435 / 316L); PBT; PEI; PFA
Materials (wetted parts)	stainless steel (1.4435 / 316L)
Min. pressure cycles	10 million
Process connection	Clamp DN40 (1,5") DIN 32676 (ISO 2852)
Surface characteristics Ra/Rz of the wetted parts	< 0.38 / -
Fill fluid for pressure transmission	NEOBEE (food grade, FDA compliant)
Diaphragm diameter [mm]	34

Displays / operating elements

Display	Display unit LED, green switching status LED, yellow function display alphanumeric display, 4-digit measured values alphanumeric display, 4-digit
Display unit	bar; psi; MPa; % of the span

Pack quantity	1 pcs.

Electrical connection

	Connector: 1 x M12; coding: A; Contacts: gold-plated
