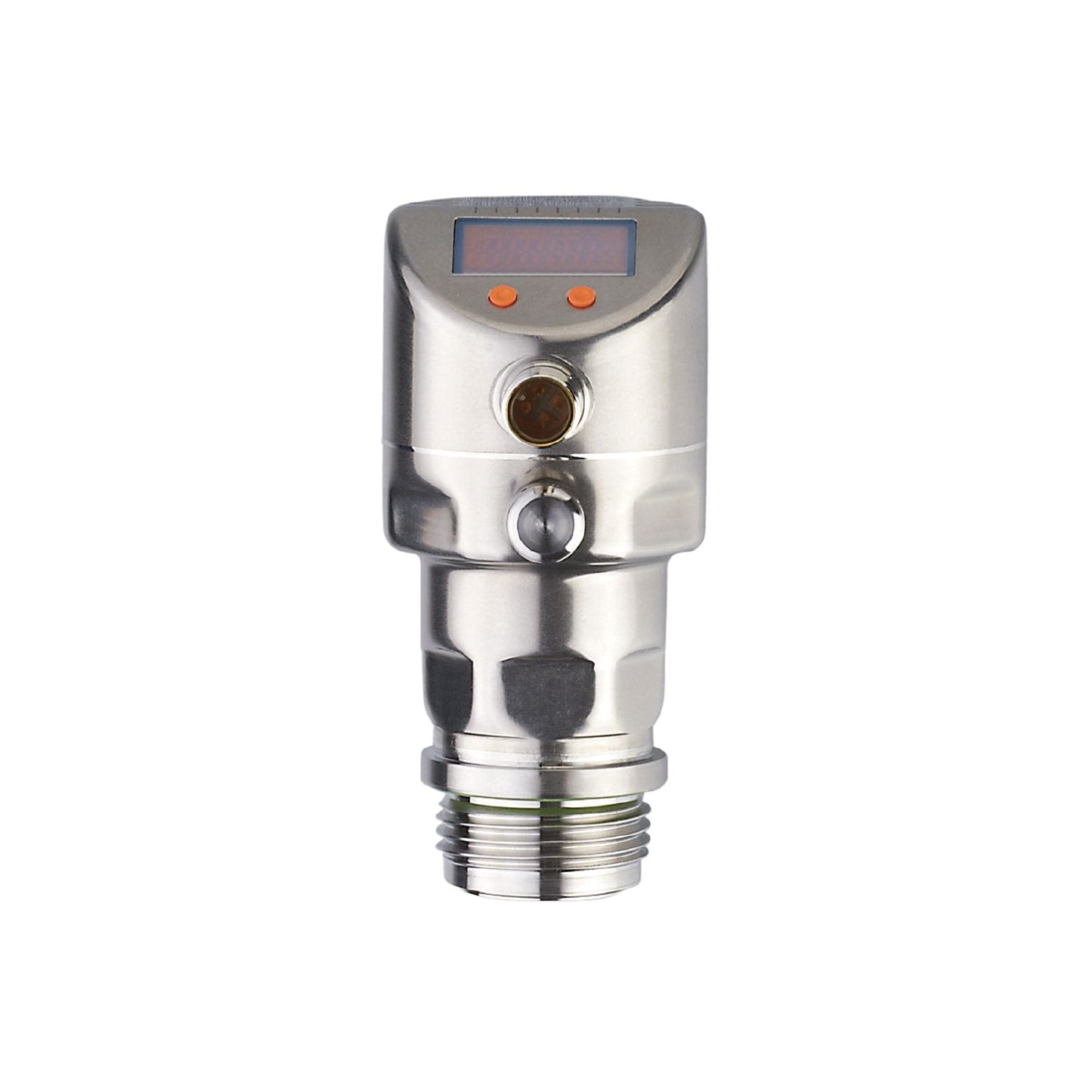

IFM PI2717 - Flush pressure sensor with display PI-1,6-REA01-MFRKG/US/ /P

Robust stainless steel housing for use in the food and beverage industry.
Hygienic, flush design.
Resistant to high-pressure cleaning with aggressive cleaning agents.
High temperature resistance and high protection rating.
Programmable analogue and switching output

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1
Measuring range	-0.1...1.6 bar -100...1600 mbar -1.46...23.2 psi -10...160 kPa
Process connection	threaded connection G 1 external thread Aseptoflex Vario

Special feature	Gold-plated contacts
Application	flush mountable for the food and beverage industry
Media	viscous media and liquids with suspended particles; liquids and gases
Medium temperature [°C]	-25...125;(145 max. 1h)
Min. bursting pressure	40000 mbar 580 psi 4000 kPa
Pressure rating	15000 mbar 215 psi 1500 kPa
Vacuum resistance [mbar]	-1000
Type of pressure	relative pressure
No dead space	yes
MAWP (for applications according to CRN) [bar]	15

Min. insulation resistance [MΩ]	100;(500 V DC)
Protection class	III
Reverse polarity protection	yes
Integrated watchdog	yes

Operating voltage [V]	20...32 DC
Current consumption [mA]	3.6...21
Power-on delay time [s]	1

Operating voltage [V]	18...32 DC
Current consumption [mA]	< 45
Power-on delay time [s]	0.5

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1

Outputs

Total number of outputs	2
Output signal	switching signal; analogue signal; IO-Link;(configurable)
Electrical design	PNP/NPN
Number of digital outputs	2
Output function	normally open / normally closed;(parameterisable)
Number of analogue outputs	1
Analogue current output [mA]	4...20, invertible; (scalable)
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Max. load [Ω]	300

Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	125
Max. load [Ω]	(Ub - 10 V) / 20 mA

Measuring/setting range

Measuring range	-0.1...1.6 bar -100...1600 mbar -1.46...23.2 psi -10...160 kPa
Set point SP	-96...1600 mbar -1.4...23.2 psi -9.6...160 kPa
Reset point rP	-100...1598 mbar -1.44...23.16 psi -10...159.8 kPa
Analogue start point	-100...1200 mbar -1.46...17.42 psi -10...120 kPa
Analogue end point	300...1600 mbar 4.34...23.2 psi 30...160 kPa
In steps of	2 mbar 0.02 psi 0.2 kPa
Factory setting	SP1 = 0.4 bar rP1 = 0.368 bar SP2 = 1.2 bar rP2 = 1.168 bar ASP = 0.0 bar AEP = 1.6 bar

Accuracy / deviations

Switch point accuracy [% of the span]	< ± 0,2;(Turn down 1:1)
Repeatability [% of the span]	< ± 0,1;(with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation [% of the span]	< ± 0,2;(Turn down 1:1 , linearity, incl. hysteresis and repeatability , limit value setting to DIN EN IEC 62828-1)
Linearity deviation [% of the span]	< ± 0,15;(Turn down 1:1)
Hysteresis deviation [% of the span]	< ± 0,15;(Turn down 1:1)
Long-term stability [% of the span]	< ± 0,1;(Turn down 1:1; per year)
Temperature coefficient zero point [% of the span / 10 K]	< ± 0,05;(0...70 °C)
Temperature coefficient span [% of the span / 10 K]	< ± 0,15;(0...70 °C)

Response times

Damping process value dAP [s]	0...30
Damping for the analogue output dAA [s]	0.01...99.99

Step response time analogue output [ms]	45

Min. response time of switching output (dAP) [ms]	3
Step response time analogue output [ms]	7

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.0
Profiles	no profile
SIO mode	yes
Required master port type	A
Process data analogue	1
Process data binary	2
Min. process cycle time [ms]	2.3
Supported DeviceIDs	Type of operation DeviceID default 727

Operating conditions

Ambient temperature [°C]	-25...80
Storage temperature [°C]	-40...100
Protection	IP 67; IP 68; IP 69K

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-5 Surge 0,5/1 kV EN 61000-4-6 HF conducted 10 V
Shock resistance	DIN IEC 68-2-27 50 g (11 ms)
Vibration resistance	DIN IEC 68-2-6 20 g (10...2000 Hz)
MTTF [years]	154
Note on approval	factory certificate available as download at www.factory-certificate.ifm
UL approval	UL Approval no. J018 File number UL E174189

Weight [g]	360
Materials	stainless steel (1.4404 / 316L); FKM; PTFE; PBT; PEI; PFA
Materials (wetted parts)	ceramics (99.9 % Al2O3); stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4; PTFE
Min. pressure cycles	100 million
Process connection	threaded connection G 1 external thread Aseptoflex Vario

Displays / operating elements

Display	Display unit LED, green switching status LED, yellow function display alphanumeric display, 4-digit measured values alphanumeric display, 4-digit
Display unit	mbar; kPa; psi; inH2O; mWS; % of the span

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
