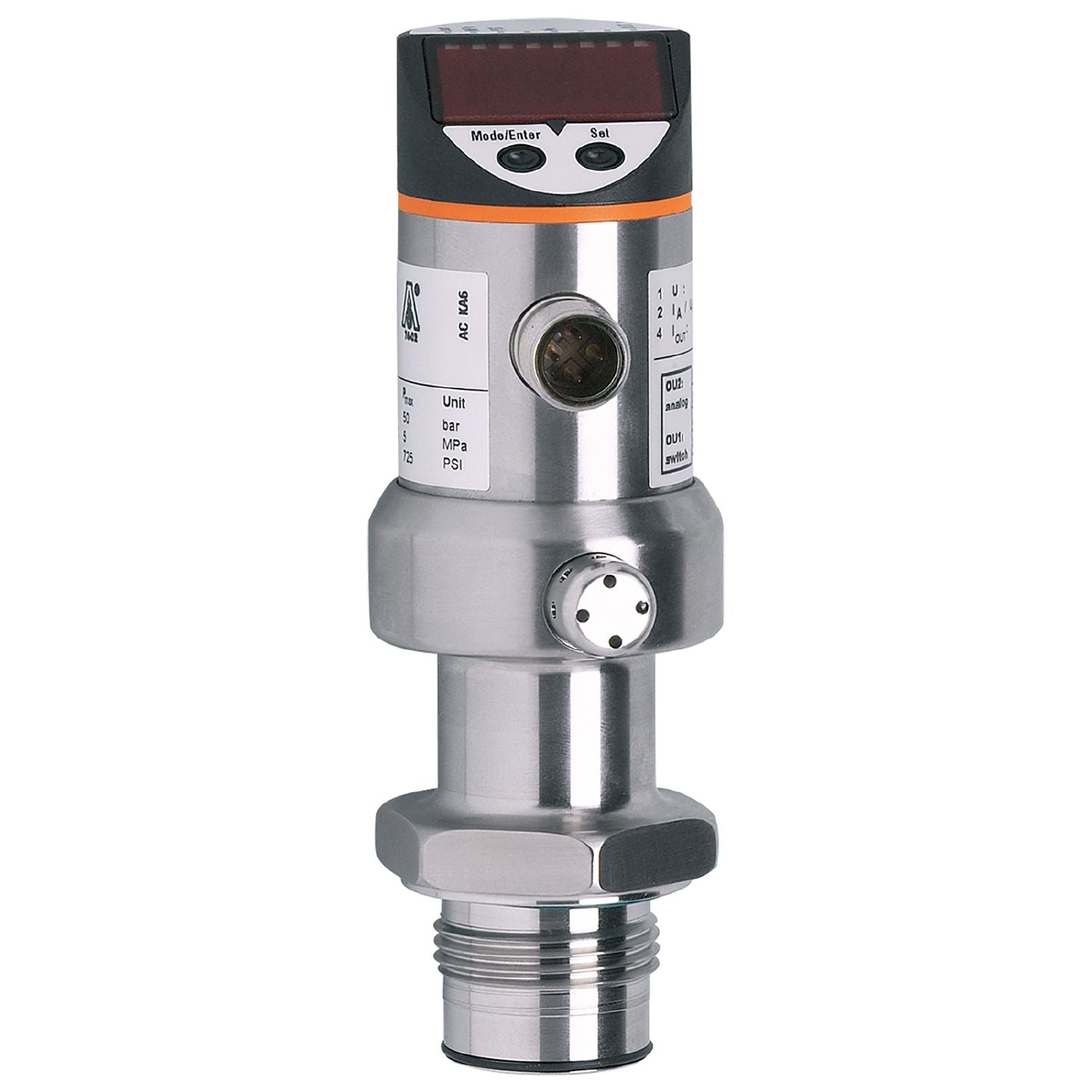

Combined level measurement and point level detection with analogue / switching output. Resistant to high-pressure cleaning with aggressive cleaning agents. For use in high temperatures in process technology. Hygienic design for the requirements of the food and beverage industry. Flush mount installation in containers, tanks and pipes
Number of inputs and outputs
Number of digital outputs: 2
Measuring range
-1...25 bar
-14.4...362.7 psi
-0.1...2.5 MPa
Process connection
threaded connection G 3/4 external thread
Special feature
Gold-plated contacts
Application
flush mountable for the food and beverage industry
Installation
freely rotatable housing 350°
Media
viscous media and liquids with suspended particles; liquids and gases
Medium temperature [°C]
-25...125;(145 max. 1h)
Min. bursting pressure
200 bar
2900 psi
20 MPa
Pressure rating
100 bar
1450 psi
10 Mpa
Type of pressure
relative pressure; vacuum
No dead space
yes
Operating voltage [V]
18...32 DC
Current consumption [mA]
< 50
Min. insulation resistance [MΩ]
100;(500 V DC)
Protection class
III
Reverse polarity protection
yes
Power-on delay time [s]
0.5
Integrated watchdog
yes
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 2
Outputs
Total number of outputs
2
Output signal
switching signal
Electrical design
PNP/NPN
Number of digital outputs
2
Output function
normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]
2
Permanent current rating of switching output DC [mA]
250
Switching frequency DC [Hz]
85
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Measuring/setting range
Measuring range
-1...25 bar
-14.4...362.7 psi
-0.1...2.5 MPa
Set point SP
-0.96...25 bar
-13.8...362.7 psi
-0.096...2.5 MPa
Reset point rP
-1...24.96 bar
-14.4...362.1 psi
-0.1...2.496 MPa
In steps of
0.02 bar
0.3 psi
0.002 MPa
Factory setting
SP1 = 6.24 bar
rP1 = 5.74 bar
SP2 = 18.74 bar
rP2 = 18.30 bar
Accuracy / deviations
Switch point accuracy [% of the span]
< ± 0,2;(Turn down 1:1)
Repeatability [% of the span]
< ± 0,1;(with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation [% of the span]
< ± 0,2;(Turn down 1:1 , linearity, incl. hysteresis and repeatability , limit value setting to DIN EN IEC 62828-1)
Linearity deviation [% of the span]
< ± 0,15;(Turn down 1:1)
Hysteresis deviation [% of the span]
< ± 0,15;(Turn down 1:1)
Long-term stability [% of the span]
< ± 0,1;(Turn down 1:1; per year)
Temperature coefficient zero point [% of the span / 10 K]
< ± 0,05;(0...70 °C)
Temperature coefficient span [% of the span / 10 K]
< ± 0,15;(0...70 °C)
Response times
Response time [ms]
< 6
Damping process value dAP [s]
0...100
Software / programming
Parameter setting options
hysteresis / window; normally open / normally closed; switching logic; Damping; adaptation of displayed values; display can be rotated and switched off; Display unit; zero point; span
Connector: 1 x M12; coding: A; Contacts: gold-plated
