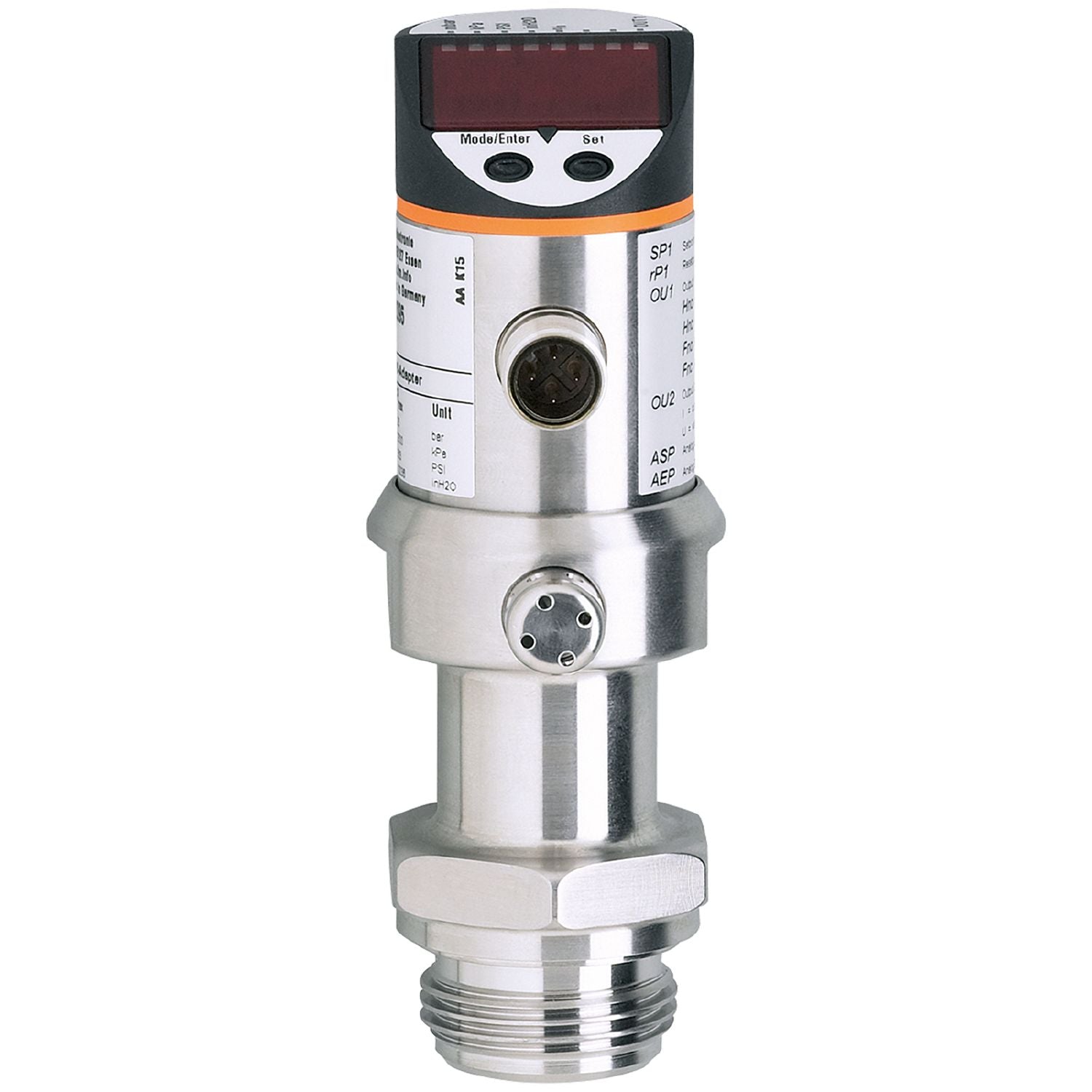

IFM PIM094 - Pressure sensor with diagnostic function for pumps PIM010-RES30-KFPKG/US/ /P

Two functions in one unit: Pump monitoring and pressure detection.
Reliable diagnosis of disturbances in the suction area and detection of cavitation.
Detection of outgassing liquids or trapped air in the pump.
Independent system-pressure monitoring with second switching output.
Pump control via analogue output

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1
Measuring range	-1...10 bar -14.5...145 psi -0.1...1 MPa
Process connection	threaded connection Aseptoflex external thread Aseptoflex

Special feature	Gold-plated contacts
Application	flush mountable for the food and beverage industry
Installation	freely rotatable housing 350°
Media	viscous media and liquids with suspended particles; liquids and gases
Medium temperature [°C]	-25...125;(145 max. 1h)
Min. bursting pressure	150 bar 2175 psi 15 MPa
Pressure rating	50 bar 725 psi 5 Mpa
Type of pressure	relative pressure
No dead space	yes

Operating voltage [V]	18...32 DC
Current consumption [mA]	< 50
Min. insulation resistance [MΩ]	100;(500 V DC)
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	0.2
Integrated watchdog	yes

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1

Outputs

Total number of outputs	2
Output signal	switching signal; analogue signal;(configurable)
Electrical design	PNP
Number of digital outputs	2
Output function	normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	350
Notes on switching frequency [Hz]	OUT2
Number of analogue outputs	1
Analogue current output [mA]	4...20, invertible; (scalable)
Max. load [Ω]	(Ub - 10 V) / 20 mA
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Measuring/setting range

Measuring range	-1...10 bar -14.5...145 psi -0.1...1 MPa
Set point SP	-0.98...10 bar -14.2...145 psi -0.098...1 MPa
Reset point rP	-1...9.98 bar -14.5...144.7 psi -0.1...0.998 MPa
Analogue start point	-1...7.25 bar -14.5...105.1 psi -0.1...0.725 MPa
Analogue end point	1.5...10 bar 21.8...145 psi 0.15...1 MPa
In steps of	0.01 bar 0.1 psi 0.001 MPa
Factory setting	OU1 = Fnc OU2 = I ASP = 0.00 bar AEP = 10.00 bar

Accuracy / deviations

Switch point accuracy [% of the span]	< ± 0,2;(Turn down 1:1)
Repeatability [% of the span]	< ± 0,1;(with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation [% of the span]	< ± 0,2;(Turn down 1:1 , linearity, incl. hysteresis and repeatability , limit value setting to DIN EN IEC 62828-1)
Linearity deviation [% of the span]	< ± 0,15;(Turn down 1:1)
Hysteresis deviation [% of the span]	< ± 0,15;(Turn down 1:1)
Long-term stability [% of the span]	< ± 0,1;(Turn down 1:1; per year)
Temperature coefficient zero point [% of the span / 10 K]	< ± 0,15;(0...70 °C)
Temperature coefficient span [% of the span / 10 K]	< ± 0,1;(0...70 °C)

Response times

Response time [ms]	< 2.5
Damping process value dAP [s]	0...10
Damping for the analogue output dAA [s]	0...10
Step response time analogue output [ms]	0.2

Software / programming

Parameter setting options	zero point; span

Operating conditions

Ambient temperature [°C]	-25...80
Storage temperature [°C]	-40...100
Protection	IP 67; IP 69K

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-5 Surge 0,5/1 kV EN 61000-4-6 HF conducted 10 V
Shock resistance	DIN IEC 68-2-27 50 g (11 ms)
Vibration resistance	DIN IEC 68-2-6 20 g (10...2000 Hz)
MTTF [years]	188

Weight [g]	414.5
Materials	stainless steel (1.4404 / 316L); PC; PBT; PEI; FKM; PTFE
Materials (wetted parts)	ceramics (99.9 % Al2O3); stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4; PTFE
Min. pressure cycles	100 million
Process connection	threaded connection Aseptoflex external thread Aseptoflex

Displays / operating elements

Display	Display unit 4 x LED, green switching status 2 x LED, yellow function display alphanumeric display, 4-digit measured values alphanumeric display, 4-digit

Remarks	pump diagnosis for pumps with constant rotational speed (+/- 10 % deviation of the taught rotational speed) speed range 40...3000 U/min minimum pressure for pump diagnosis 0,5 bar The 3-A qualification is only valid if adapters with 3-A qualification are used for installation.
Notes	Please do not use for new projects.; no more adapters available as accessories
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PIM094-00 — 13.04.2023 —
