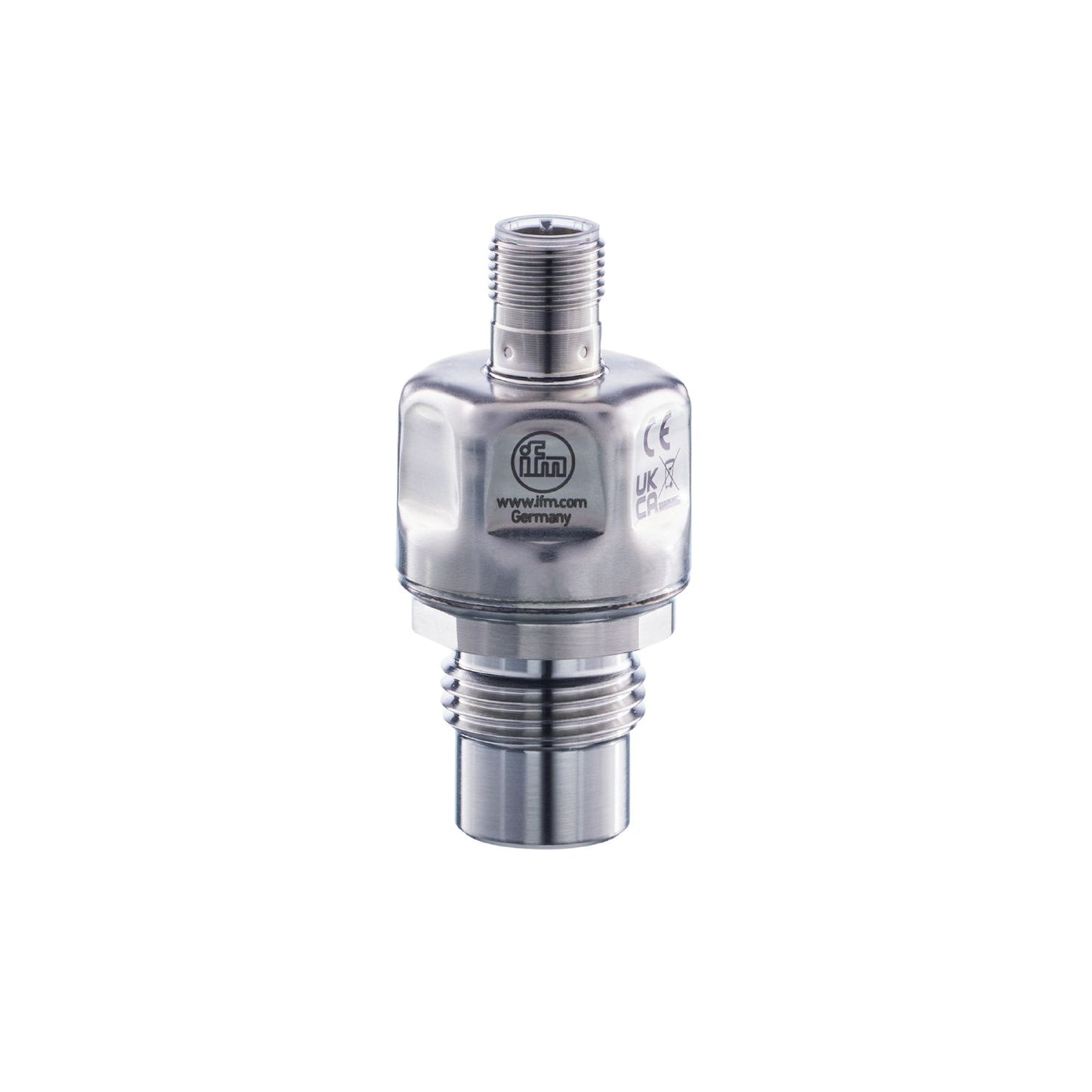

IFM PL1502 - Flush pressure transmitter PL-100-REA12-A-DKG/US/ /

Reliable detection of system pressure in industrial and mobile applications.
High shock and vibration resistance.
Excellent repeatability and low linearity error.
Compact and robust stainless steel housing for use where space is restricted

Number of inputs and outputs	Number of digital outputs: 1; Number of analogue outputs: 1
Measuring range	0...100 bar 0...1450 psi 0...10 MPa
Process connection	threaded connection G 1/2 external thread

Special feature	Gold-plated contacts
Measuring element	ceramic-capacitive pressure measuring cell
Temperature monitoring	yes
Application	flush mountable for industrial applications; for industrial applications
Media	viscous media and liquids with suspended particles; Liquids; other media on request
Medium temperature [°C]	-25...110;(flush mount zero-leak using metal-to-metal seal. for permissible temperatures of other sealing versions, see sealing materials under “Accessories”)
Min. bursting pressure	400 bar 5800 psi 40 MPa
Pressure rating	250 bar 3625 psi 25 MPa
Vacuum resistance [mbar]	-1000
Type of pressure	relative pressure
No dead space	yes

Operating voltage [V]	9.6...30 DC
Min. insulation resistance [MΩ]	100;(500 V DC)
Protection class	III
Reverse polarity protection	yes
Integrated watchdog	yes

Current consumption [mA]	3.5...21.5
Power-on delay time [s]	< 1

Current consumption [mA]	< 30
Power-on delay time [s]	< 0.5

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 1; Number of analogue outputs: 1

Outputs

Total number of outputs	2
Output signal	analogue signal; IO-Link (configurable)
Number of digital outputs	1;(IO-Link)
Number of analogue outputs	1
Analogue current output [mA]	4...20; (scalable; 1:5)
Max. load [Ω]	(Ub - 9,6 V) / 21,5 mA; 670Ω (Ub = 24 V)
Short-circuit proof	yes
Overload protection	yes

Measuring/setting range

Measuring range	0...100 bar 0...1450 psi 0...10 MPa
Analogue start point	0...80 bar 0...1160 psi 0...8 MPa
Analogue end point	20...100 bar 290...1450 psi 2...10 MPa
In steps of	0.02 bar 1 psi 0.002 MPa
Factory setting	ASP = 0.0 bar AEP = 100 bar ASP = 0.0 MPa AEP = 10 MPa ASP = 0.0 psi AEP = 1450 psi

Measuring range	-25...110 °C -13...230 °F

Accuracy / deviations

Repeatability [% of the span]	< ± 0,1;(with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation [% of the span]	< ± 0,5;(linearity incl. hysteresis and repeatability, limit value setting to DIN EN IEC 62828-1)
Linearity deviation [% of the span]	< ± 0,15;(Turn down 1:1)
Hysteresis deviation [% of the span]	< ± 0,15;(Turn down 1:1)
Long-term stability [% of the span]	< ± 0,1;(Turn down 1:1; per year)
Temperature coefficient zero point [% of the span / 10 K]	< ± 0,1 (-25...85 °C)< ± 0,3 (85...110 °C)
Temperature coefficient span [% of the span / 10 K]	< ± 0,1 (-25...85 °C)< ± 0,3 (85...110 °C)

Accuracy [K]	± 2.5 K + (0.045 x (ambient temperature - medium temperature))

Response times

Damping process value dAP [s]	0...99.99
Damping for the analogue output dAA [s]	0...99.99

Step response time analogue output [ms]	12

Step response time analogue output [ms]	3

Dynamic response T05 / T09 [s]	< 10 / < 25;(DIN EN 60751 water; > 0,9 m/s)

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor ED2: Identification and Diagnosis (0x4000), Measurement Data Channel (0x800A)
SIO mode	no
Required master port type	A;(when pin 2 not connected: B)
Min. process cycle time [ms]	3.5
IO-Link resolution pressure [bar]	0.02
IO-Link resolution temperature [K]	0.2
IO-Link process data (cyclical)	function bit length pressure 16 temperature 16 device status 4
IO-Link functions (acyclical)	application specific tag; internal temperature
Supported DeviceIDs	Type of operation DeviceID default 1439

Operating conditions

Ambient temperature [°C]	-25...90
Storage temperature [°C]	-40...100
Protection	IP 67; IP 68; IP 69

Tests / approvals

EMC	DIN EN 61326-1
Shock resistance	DIN EN 60068-2-27 50 g (11 ms)
Vibration resistance	DIN EN 60068-2-6 20 g (10...2000 Hz)
MTTF [years]	427
UL approval	Enclosure type Type 1 UL Approval no. J052 File number UL E174189

Weight [g]	86.6
Materials	stainless steel (1.4435 / 316L); stainless steel (1.4404 / 316L); PA; PTFE; FKM
Materials (wetted parts)	stainless steel (1.4435 / 316L); Al2O3 (ceramics); surface characteristics : Ra < 0,4 / Rz 4; PTFE; (FKM for sealing with seal DIN EN ISO 1179-2, see operating instructions)
Min. pressure cycles	100 million
Tightening torque [Nm]	25
Process connection	threaded connection G 1/2 external thread

Displays / operating elements

Display	readiness for operation 2 LED, green

Accessories

Items supplied	Gasket: G1/2, FKM DIN EN ISO1179-2 (-15...110°C), E30492
Accessories (optional)	Gasket: G1/2, FKM DIN EN ISO1179-2 (-15...110°C), E30492 Gasket: G1/2, EPDM DIN EN ISO1179-2 (-25...110°C), E30451 Gasket: G1/2, FFKM DIN EN ISO1179-2 (-5...110°C), E30513

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
