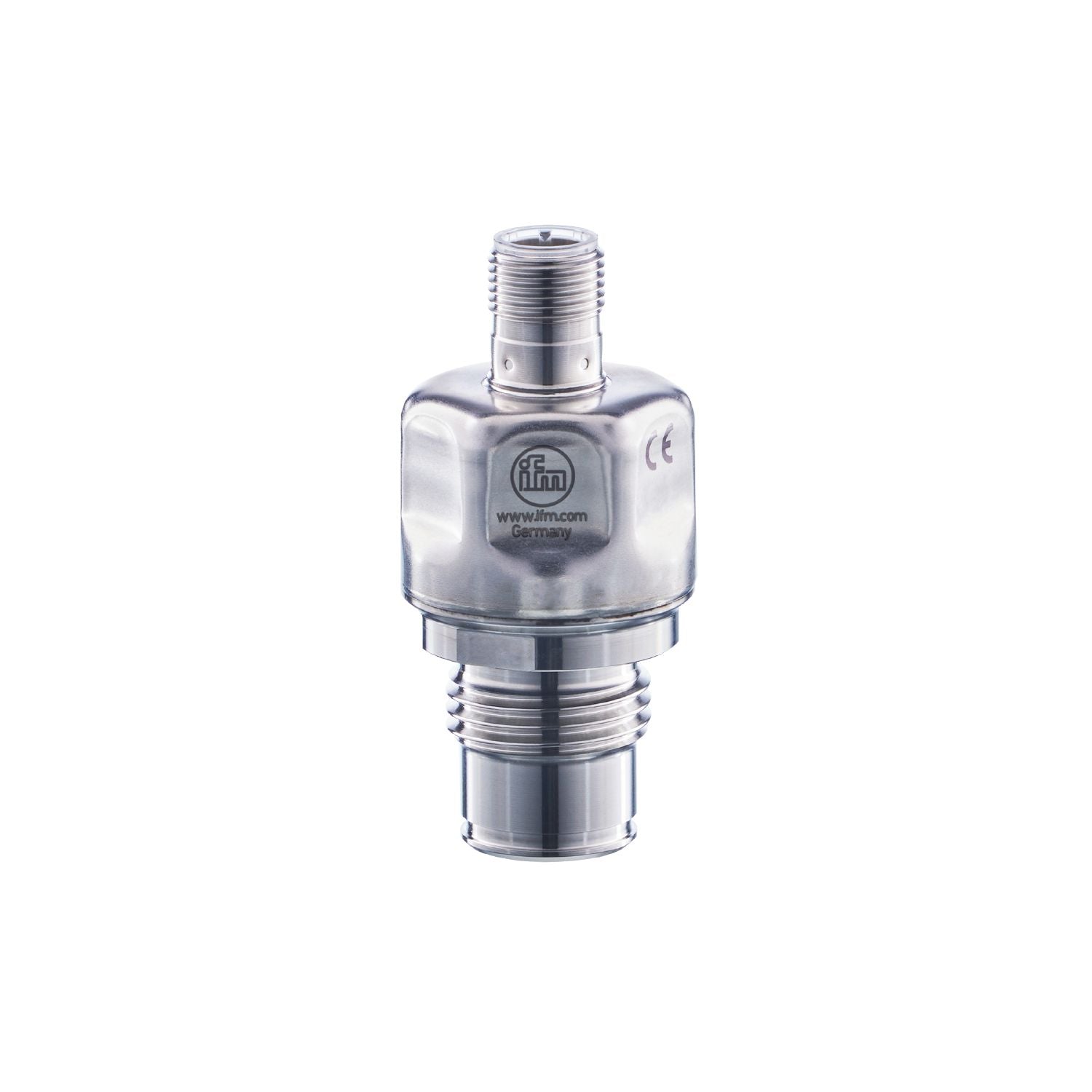

Reliable detection of system pressure in industrial and mobile applications. High shock and vibration resistance. Excellent repeatability and low linearity error. Compact and robust stainless steel housing for use where space is restricted
Number of inputs and outputs
Number of digital outputs: 1; Number of analogue outputs: 1
Measuring range
-1...10 bar
-14.5...145 psi
-0.1...1 MPa
Process connection
threaded connection G 1/2 external thread
Special feature
Gold-plated contacts
Measuring element
ceramic-capacitive pressure measuring cell
Temperature monitoring
yes
Application
flush mountable for industrial applications; for industrial applications
Media
viscous media and liquids with suspended particles; Liquids; other media on request
Medium temperature [°C]
-25...110;(flush mount zero-leak using metal-to-metal seal. for permissible temperatures of other sealing versions, see sealing materials under “Accessories”)
Min. bursting pressure
175 bar
2538 psi
17 MPa
Pressure rating
70 bar
1015 psi
7 MPa
Vacuum resistance [mbar]
-1000
Type of pressure
relative pressure; vacuum
No dead space
yes
Operating voltage [V]
9.6...30 DC
Min. insulation resistance [MΩ]
100;(500 V DC)
Protection class
III
Reverse polarity protection
yes
Integrated watchdog
yes
2-wire
Current consumption [mA]
3.5...21.5
Power-on delay time [s]
< 1
3-wire
Current consumption [mA]
< 30
Power-on delay time [s]
< 0.5
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 1; Number of analogue outputs: 1
Outputs
Total number of outputs
2
Output signal
analogue signal; IO-Link (configurable)
Number of digital outputs
1;(IO-Link)
Number of analogue outputs
1
Analogue current output [mA]
4...20; (scalable; 1:5)
Max. load [Ω]
(Ub - 9,6 V) / 21,5 mA; 670Ω (Ub = 24 V)
Short-circuit proof
yes
Overload protection
yes
Measuring/setting range
Measuring range
-1...10 bar
-14.5...145 psi
-0.1...1 MPa
Analogue start point
-1...8 bar
-14.5...116 psi
-0.1...0.8 MPa
Analogue end point
1...10 bar
14.5...145 psi
0.1...1 MPa
In steps of
0.002 bar
0.2 psi
0.0002 MPa
Factory setting
ASP = 0.0 bar
AEP = 10.0 bar
ASP = 0.0 psi
AEP = 145.0 psi
ASP = 0.0 MPa
AEP = 1.0 MPa
Temperature monitoring
Measuring range
-25...110 °C
-13...230 °F
Accuracy / deviations
Repeatability [% of the span]
< ± 0,1;(with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation [% of the span]
< ± 0,5;(linearity incl. hysteresis and repeatability, limit value setting to DIN EN IEC 62828-1)
Linearity deviation [% of the span]
< ± 0,15;(Turn down 1:1)
Hysteresis deviation [% of the span]
< ± 0,15;(Turn down 1:1)
Long-term stability [% of the span]
< ± 0,1;(Turn down 1:1; per year)
Temperature coefficient zero point [% of the span / 10 K]
< ± 0,1 (-25...85 °C)< ± 0,3 (85...110 °C)
Temperature coefficient span [% of the span / 10 K]
< ± 0,1 (-25...85 °C)< ± 0,3 (85...110 °C)
Temperature monitoring
Accuracy [K]
± 2.5 K + (0.045 x (ambient temperature - medium temperature))
Response times
Damping process value dAP [s]
0...99.99
Damping for the analogue output dAA [s]
0...99.99
2-wire
Step response time analogue output [ms]
12
3-wire
Step response time analogue output [ms]
3
Temperature monitoring
Dynamic response T05 / T09 [s]
< 10 / < 25;(DIN EN 60751 water; > 0,9 m/s)
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
Profiles
Smart Sensor ED2: Identification and Diagnosis (0x4000), Measurement Data Channel (0x800A)
Gasket: G1/2, EPDM DIN EN ISO1179-2 (-25...110°C), E30451
Accessories (optional)
Gasket: G1/2, FKM DIN EN ISO1179-2 (-15...110°C), E30492
Gasket: G1/2, FFKM DIN EN ISO1179-2 (-5...110°C), E30513
O-ring: 16,4 x 1, FKM (-15...110°C), E30510
O-ring: 16,4 x 1, FFKM (-5...110°C), E30512
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PL1604-00 — 26.02.2024 —
