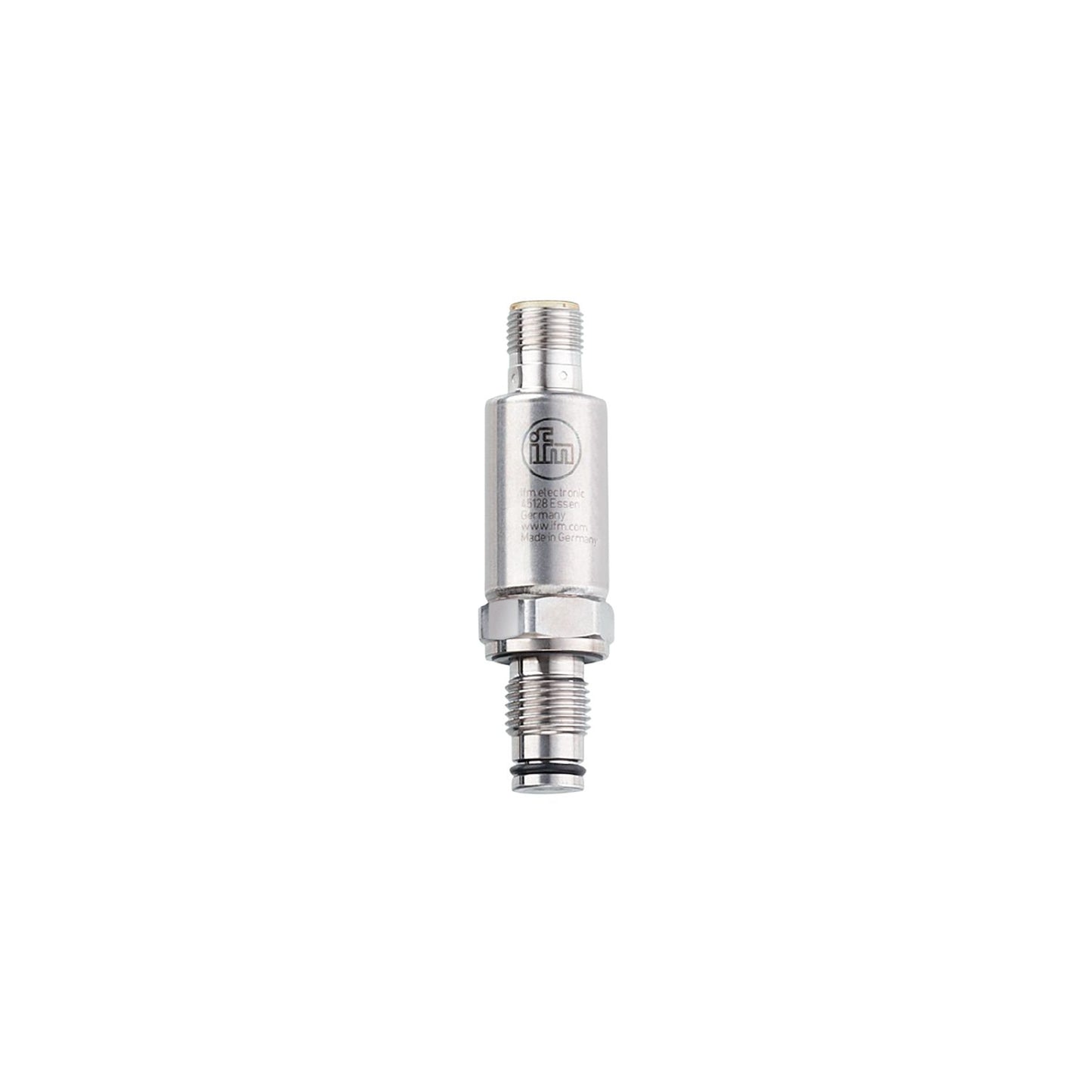

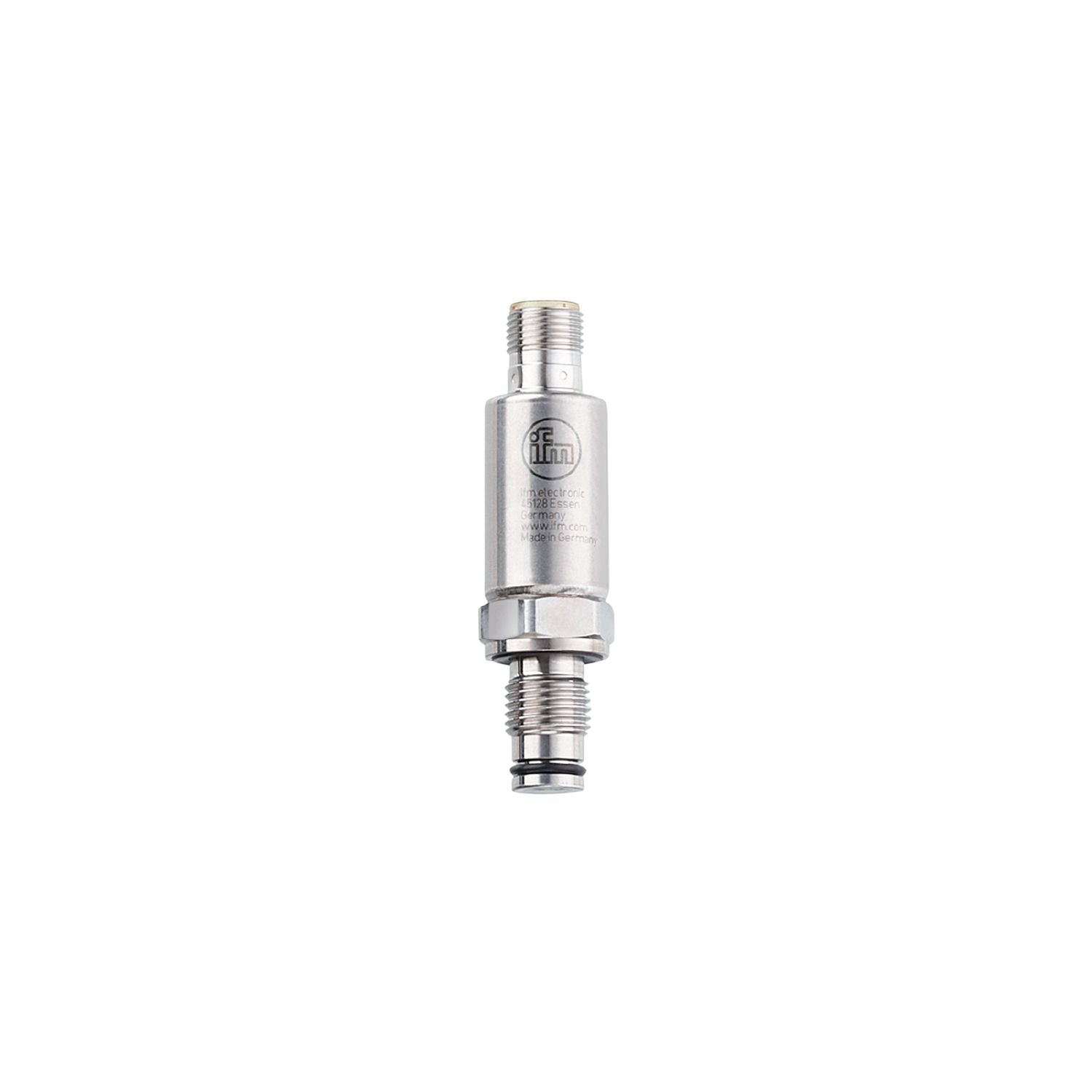

IFM PL5401 - Flush pressure transmitter PL-250-SEG14-A-ZVG/US/ /W

Reliable detection of system pressure in industrial and mobile applications.
High shock and vibration resistance.
Excellent repeatability and low linearity error.
Compact and robust stainless steel housing for use where space is restricted

Number of inputs and outputs	Number of analogue outputs: 1
Measuring range	0...250 bar 0...3625 psi 0...25 MPa
Process connection	threaded connection G 1/4 external thread

Measuring element	thin film measuring cell with diaphragm seal technique
Application	flush mountable for industrial applications; for industrial applications
Media	viscous media and liquids with suspended particles; liquids and gases
Medium temperature [°C]	-20...90
Min. bursting pressure	1200 bar 17400 psi 120 MPa
Pressure rating	625 bar 9060 psi 62.5 MPa
Note on pressure rating	static
Vacuum resistance [mbar]	-1000
Type of pressure	relative pressure

Operating voltage [V]	8.5...36 DC
Min. insulation resistance [MΩ]	100;(500 V DC)
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	0.1

Inputs / outputs

Number of inputs and outputs	Number of analogue outputs: 1

Outputs

Total number of outputs	1
Output signal	analogue signal
Number of analogue outputs	1
Analogue current output [mA]	4...20
Max. load [Ω]	(Ub – 8,5 V) / 21,5 mA; @8,5V= 0 Ω; @12V max. 160 Ω; @24V max. 720 Ω
Short-circuit proof	yes
Overload protection	yes

Measuring/setting range

Measuring range	0...250 bar 0...3625 psi 0...25 MPa

Accuracy / deviations

Repeatability [% of the span]	< ± 0,05;(with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]	< ± 0,5;(incl. drift when overtightened, zero point and span error, non-linearity, hysteresis)
Linearity deviation [% of the span]	< ± 0,1 (BFSL) / < ± 0,2 (LS)
Hysteresis deviation [% of the span]	< ± 0,2
Long-term stability [% of the span]	< ± 0,1;(per 6 months)
Temperature coefficient zero point [% of the span / 10 K]	< 0,2 (-25...90 °C)
Temperature coefficient span [% of the span / 10 K]	< 0,15 (-25...90 °C)

Response times

Step response time analogue output [ms]	2

Operating conditions

Ambient temperature [°C]	-25...90
Storage temperature [°C]	-25...100
Protection	IP 67; IP 69K

Tests / approvals

EMC	DIN EN 61000-6-2 DIN EN 61000-6-3
Shock resistance	DIN EN 60068-2-27 50 g (11 ms)
Vibration resistance	DIN EN 60068-2-6 20 g (10...2000 Hz)
MTTF [years]	787
UL approval	UL Approval no. J046 File number UL E174189

Weight [g]	64
Materials	1.4542 (17-4 PH / 630); stainless steel (1.4404 / 316L); PEI
Materials (wetted parts)	1.4542 (17-4 PH / 630); stainless steel (1.4435 / 316L); FKM
Min. pressure cycles	60 million;(at 1.2 times nominal pressure)
Tightening torque [Nm]	25...35;(recommended tightening torque; depends on lubrication, seal and pressure rating)
Process connection	threaded connection G 1/4 external thread
Process connection sealing	FKM
Fill fluid for pressure transmission	NEOBEE (food grade, FDA compliant)

Accessories

Items supplied	O-ring : 8,5mm x 1,5mm, FKM, E30517 Gasket : G1/4 DIN EN ISO 1179-2, FKM, E30145
Accessories (optional)	O-ring : 5 x (8,5mm x 1,5 mm), FKM, E30517 O-ring : 1 x (8,5mm x 1,5 mm), FFFM, E30518 O-ring : 5 x (8,5mm x 1,5 mm), EPDM, E30519 Gasket : 10 x G/1/4 DIN EN ISO 1179-2, FKM, E30145 Gasket : 1 x G/1/4 DIN EN ISO 1179-2, FFKM, E30520 Gasket : 10 x G/1/4 DIN EN ISO 1179-2, EPDM, E30442

Remarks	BFSL = Best Fit Straight Line LS = limit value setting
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PL5401-00 — 26.03.2021 —
