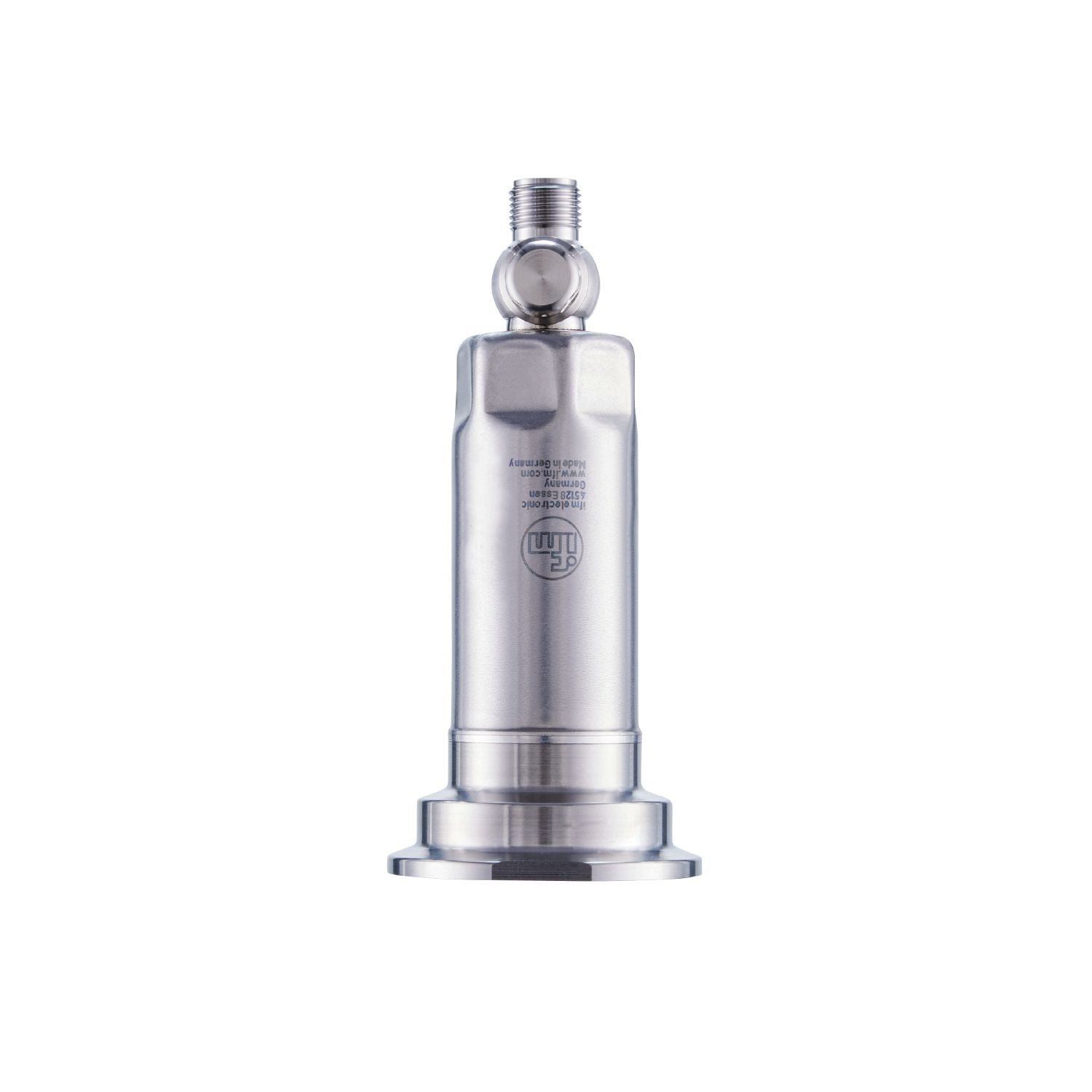

Robust stainless steel housing for use in the food and beverage industry. Hygienic, flush design. Resistant to high-pressure cleaning with aggressive cleaning agents. High temperature resistance and high protection rating
Number of inputs and outputs
Number of digital outputs: 1; Number of analogue outputs: 1
Measuring range
-0.05...0.4 bar
-50...400 mbar
-0.725...5.8 psi
-5...40 kPa
Process connection
Clamp DN25...DN40 (1...1,5") DIN 32676 (ISO 2852)
Special feature
Gold-plated contacts
Measuring element
ceramic-capacitive pressure measuring cell
Temperature monitoring
no
Application
flush mountable for the food and beverage industry
Media
viscous media and liquids with suspended particles; liquids and gases
Medium temperature [°C]
-25...150
Min. bursting pressure
30000 mbar
435 psi
3000 kPa
Pressure rating
8000 mbar
116 psi
800 kPa
Note on pressure rating
take into account the pressure resistance of the bracket and the seal used for clamp connection
Vacuum resistance [mbar]
-1000
Type of pressure
relative pressure
No dead space
yes
Operating voltage [V]
18...30 DC
Min. insulation resistance [MΩ]
100;(500 V DC)
Protection class
III
Reverse polarity protection
yes
Measuring principle
hydrostatic
Integrated watchdog
yes
2-wire
Current consumption [mA]
3.5...21.5
Power-on delay time [s]
1
3-wire
Current consumption [mA]
< 45
Power-on delay time [s]
0.5
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 1; Number of analogue outputs: 1
Outputs
Total number of outputs
2
Output signal
analogue signal; IO-Link;(configurable)
Number of digital outputs
1;(IO-Link)
Number of analogue outputs
1
Analogue current output [mA]
4...20; (scalable)
Max. load [Ω]
700;(Ub = 24 V; (Ub - 9 V) / 21.5 mA)
Short-circuit proof
yes
Overload protection
yes
Measuring/setting range
Measuring range
-0.05...0.4 bar
-50...400 mbar
-0.725...5.8 psi
-5...40 kPa
Analogue start point
-50...320 mbar
-0.725...4.641 psi
-5...32 kPa
Analogue end point
30...400 mbar
0.435...5.802 psi
3...40 kPa
In steps of
0.1 mbar
0.001 psi
0.01 kPa
Factory setting
ASP = 0.0 mbar
AEP = 400 mbar
Accuracy / deviations
Repeatability [% of the span]
< ± 0,1;(with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation [% of the span]
< ± 0,2 (DIN EN 61298-2);(incl. zero point and span error, non-linearity, hysteresis; Turn down 1:1)
Linearity deviation [% of the span]
< ± 0,15;(Turn down 1:1)
Hysteresis deviation [% of the span]
< ± 0,15;(Turn down 1:1)
Long-term stability [% of the span]
< ± 0,1;(Turn down 1:1; per year)
Temperature coefficient zero point [% of the span / 10 K]
< ± 0,05
Temperature coefficient span [% of the span / 10 K]
< ± 0,15
Total deviation over temperature range
Temperature range
total deviation
-25...15 °C
Characteristics deviation ± 0,1 % of the span/ 10 K
15...80 °C
Characteristics deviation
80...150 °C
Characteristics deviation ± 0,15 % of the span/ 10 K
Notes on the accuracy / deviation
for further details see section Diagrams and graphs
Response times
Damping for the analogue output dAA [s]
0...4
2-wire
Step response time analogue output [ms]
30
3-wire
Step response time analogue output [ms]
7
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
Profiles
Digital Measuring Sensor (0x000A), Identification and Diagnosis (0x4000)
SIO mode
no
Required master port type
A
Process data analogue
3
Min. process cycle time [ms]
3.2
Supported DeviceIDs
Type of operation
DeviceID
default
1410
Operating conditions
Ambient temperature [°C]
-25...80
Storage temperature [°C]
-40...100
Protection
IP 67; IP 68; IP 69K
Tests / approvals
EMC
DIN EN 61000-6-2
DIN EN 61000-6-3
Shock resistance
DIN EN 60068-2-27
50 g (11 ms)
Vibration resistance
DIN EN 60068-2-6
20 g (10...2000 Hz)
MTTF [years]
323
Note on approval
factory certificate available as download at www.factory-certificate.ifm
Connector: 1 x M12; coding: A; Contacts: gold-plated
Diagrams and graphs
ambient temperature influence on the accuracy
X
temperature
Y
total deviation
