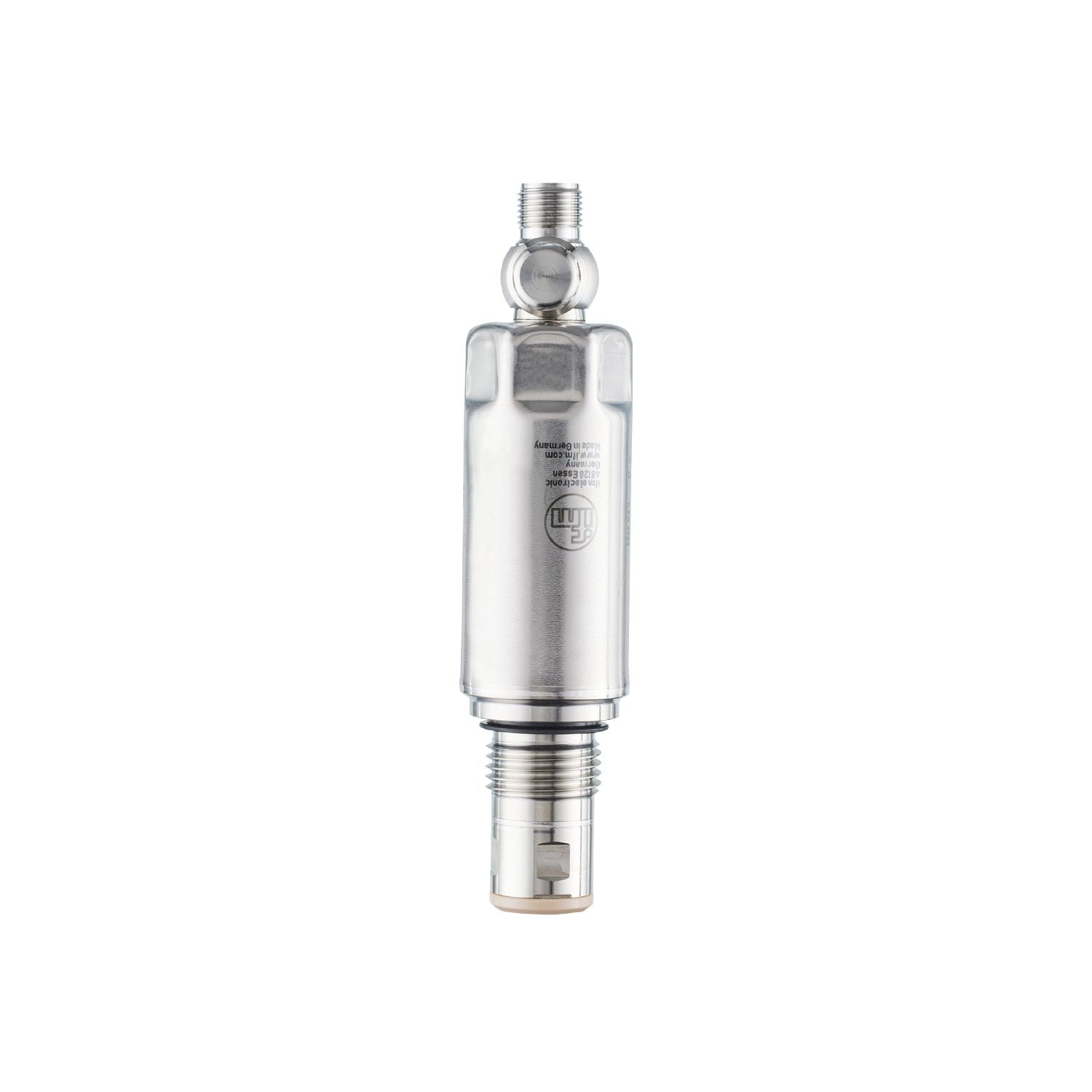

Robust stainless steel housing for use in the food and beverage industry. Hygienic, flush design. Resistant to high-pressure cleaning with aggressive cleaning agents. High temperature resistance and high protection rating
Number of inputs and outputs
Number of digital outputs: 1; Number of analogue outputs: 1
Measuring range
-1...4 bar
-14.5...58 psi
-100...400 kPa
Process connection
threaded connection G 1/2 external thread sealing cone
Special feature
Gold-plated contacts
Measuring element
ceramic-capacitive pressure measuring cell
Temperature monitoring
yes
Application
flush mountable for the food and beverage industry
Media
viscous media and liquids with suspended particles; liquids and gases
Conditionally suitable for
use in gases at pressures > 25 bar only on request
Medium temperature [°C]
-25...150
Min. bursting pressure
80 bar
1200 psi
8000 kPa
Pressure rating
40 bar
580 psi
4000 kPa
Vacuum resistance [mbar]
-1000
Type of pressure
relative pressure; vacuum
No dead space
yes
MAWP (for applications according to CRN) [bar]
40
Operating voltage [V]
18...30 DC
Min. insulation resistance [MΩ]
100;(500 V DC)
Protection class
III
Reverse polarity protection
yes
Integrated watchdog
yes
2-wire
Current consumption [mA]
3.5...21.5
Power-on delay time [s]
< 1
3-wire
Current consumption [mA]
< 45
Power-on delay time [s]
< 0.5
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 1; Number of analogue outputs: 1
Outputs
Total number of outputs
2
Output signal
analogue signal; IO-Link;(configurable)
Number of digital outputs
1;(IO-Link)
Number of analogue outputs
1
Analogue current output [mA]
4...20; (scalable; 1:5)
Max. load [Ω]
700;(Ub = 24 V; (Ub - 9 V) / 21.5 mA)
Short-circuit proof
yes
Overload protection
yes
Measuring/setting range
Measuring range
-1...4 bar
-14.5...58 psi
-100...400 kPa
Analogue start point
-1...3.2 bar
-14.5...46.4 psi
-100...320 kPa
Analogue end point
0.2...4 bar
-2.9...58 psi
-20...400 kPa
In steps of
0.002 bar
0.05 psi
0.2 kPa
Factory setting
ASP = 0.0 bar
AEP = 4.0 bar
Temperature monitoring
Measuring range
-25...150 °C
-13...302 °F
Accuracy / deviations
Repeatability [% of the span]
< ± 0,1;(with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation [% of the span]
< ± 0,5;(linearity incl. hysteresis and repeatability, limit value setting to DIN EN IEC 62828-1)
Linearity deviation [% of the span]
< ± 0,15;(Turn down 1:1)
Hysteresis deviation [% of the span]
< ± 0,15;(Turn down 1:1)
Long-term stability [% of the span]
< ± 0,1;(Turn down 1:1; per year)
Total deviation over temperature range
Temperature range
total deviation
-25...15 °C
Characteristics deviation ± 0,05 % of the span / 10 K
15...80 °C
Characteristics deviation
80...150 °C
Characteristics deviation ± 0,1 % of the span / 10 K
Notes on the accuracy / deviation
for further details see section Diagrams and graphs
Temperature monitoring
Accuracy [K]
± 2.5 K + (0.045 x (ambient temperature - medium temperature))
Repeatability [K]
± 0,2
Resolution [K]
0.2
Response times
Damping for the analogue output dAA [s]
0...4
2-wire
Step response time analogue output [ms]
30
3-wire
Step response time analogue output [ms]
7
Temperature monitoring
Dynamic response T05 / T09 [s]
< 10 / < 25;(DIN EN 60751 water; > 0,9 m/s)
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
Profiles
Smart Sensor ED2: Identification and Diagnosis (0x4000), Measurement Data Channel (0x800A)
threaded connection G 1/2 external thread sealing cone
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
Diagrams and graphs
X
temperature
Y
total deviation
