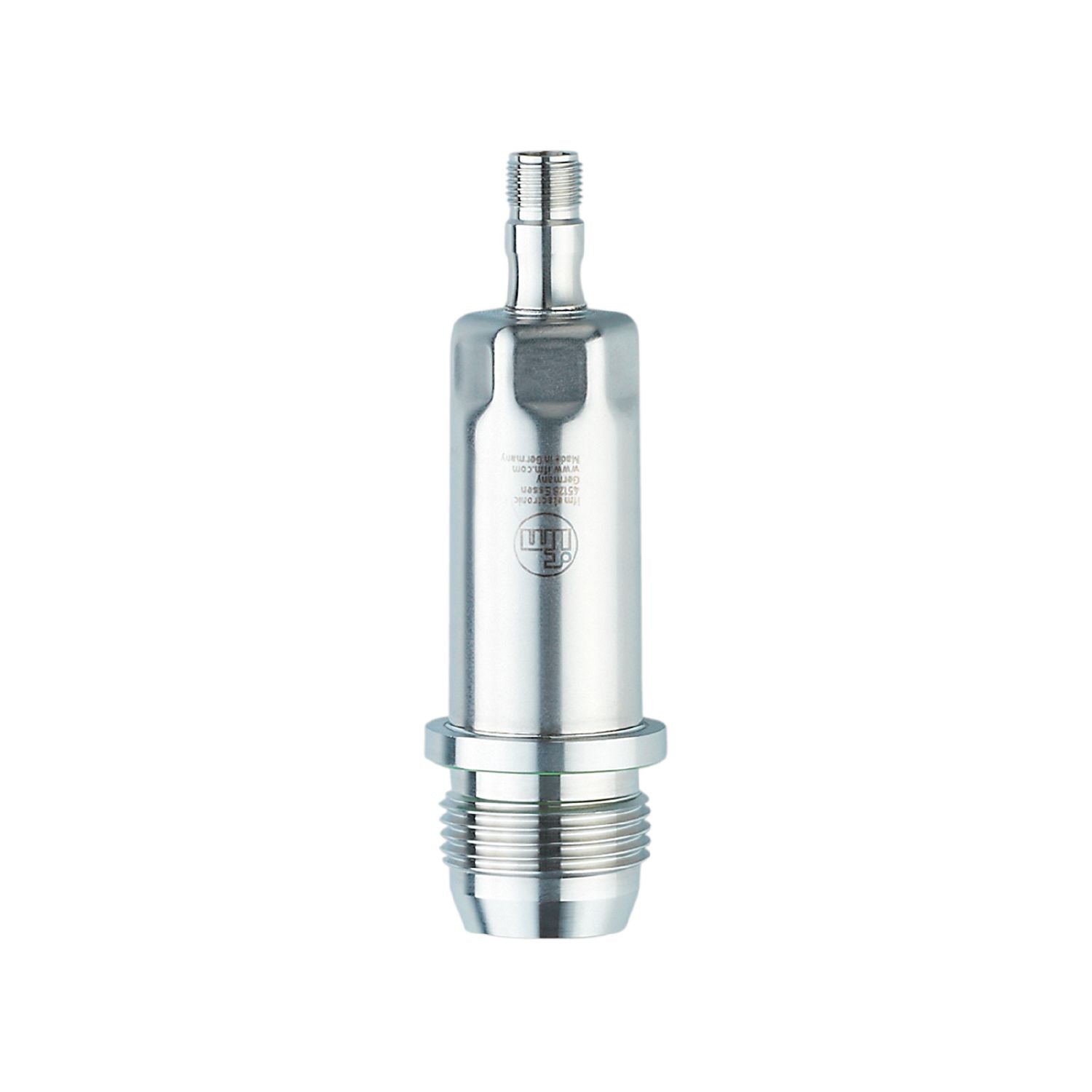

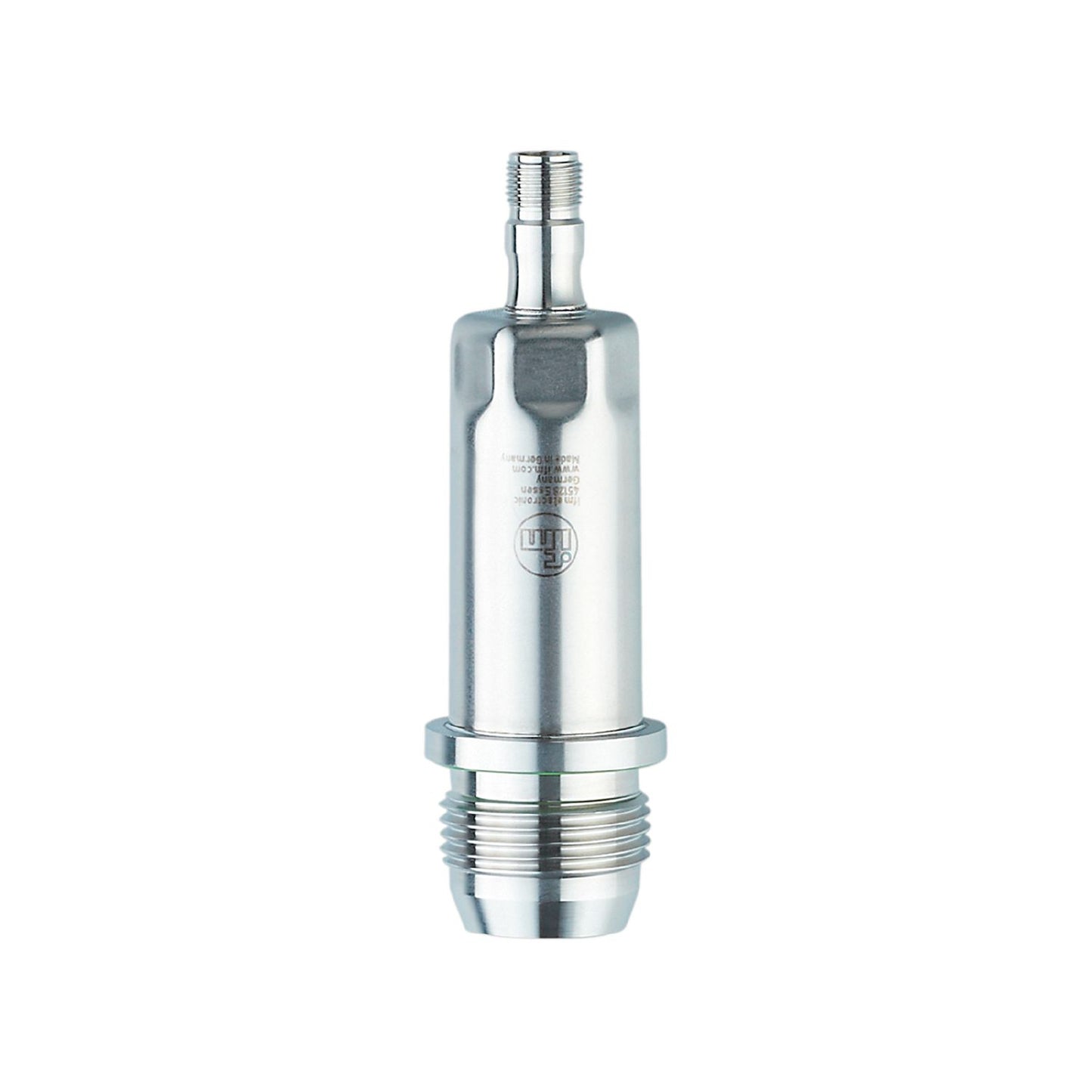

IFM PM1602 - Flush pressure transmitter PM-100-REA01-E-ZVG/US

Robust stainless steel housing for use in the food and beverage industry.
Hygienic, flush design.
Resistant to high-pressure cleaning with aggressive cleaning agents.
High temperature resistance and high protection rating

Number of inputs and outputs	Number of digital outputs: 1; Number of analogue outputs: 1
Measuring range	-1...100 bar -15...1450 psi -0.1...10 MPa
Process connection	threaded connection G 1 external thread sealing cone

Special feature	Gold-plated contacts
Measuring element	ceramic-capacitive pressure measuring cell
Temperature monitoring	no
Application	flush mountable for the food and beverage industry
Media	viscous media and liquids with suspended particles; liquids and gases; use in gases at pressures > 25 bar only on request
Medium temperature [°C]	-25...125;(150 max. 1h)
Min. bursting pressure	650 bar 9425 psi 65 MPa
Pressure rating	200 bar 2900 psi 20 MPa
Vacuum resistance [mbar]	-1000
Type of pressure	relative pressure; vacuum
No dead space	yes

Operating voltage [V]	18...30 DC
Min. insulation resistance [MΩ]	100;(500 V DC)
Protection class	III
Reverse polarity protection	yes
Integrated watchdog	yes

Current consumption [mA]	3.5...21.5
Power-on delay time [s]	1

Current consumption [mA]	< 45
Power-on delay time [s]	0.5

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 1; Number of analogue outputs: 1

Outputs

Total number of outputs	2
Output signal	analogue signal; IO-Link;(configurable)
Number of digital outputs	1;(IO-Link)
Number of analogue outputs	1
Analogue current output [mA]	4...20; (scalable)
Max. load [Ω]	700;(Ub = 24 V; (Ub - 9 V) / 21.5 mA)
Short-circuit proof	yes
Overload protection	yes

Measuring/setting range

Measuring range	-1...100 bar -15...1450 psi -0.1...10 MPa
Analogue start point	-1...80 bar -15...1160 psi -0.1...8 MPa
Analogue end point	19...100 bar 276...1450 psi 1.9...10 MPa
In steps of	0.05 bar 1 psi 0.005 MPa
Factory setting	ASP = 0.0 bar AEP = 100.0 bar

Accuracy / deviations

Repeatability [% of the span]	< ± 0,1;(with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation [% of the span]	< ± 0,5;(linearity incl. hysteresis and repeatability, limit value setting to DIN EN IEC 62828-1)
Linearity deviation [% of the span]	< ± 0,15;(Turn down 1:1)
Hysteresis deviation [% of the span]	< ± 0,15;(Turn down 1:1)
Long-term stability [% of the span]	< ± 0,1;(Turn down 1:1; per year)
Temperature coefficient zero point [% of the span / 10 K]	< ± 0,2;(0...70 °C)
Temperature coefficient span [% of the span / 10 K]	< ± 0,2;(0...70 °C)

Response times

Damping for the analogue output dAA [s]	0...4

Step response time analogue output [ms]	30

Step response time analogue output [ms]	7

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Digital Measuring Sensor (0x000A), Identification and Diagnosis (0x4000)
SIO mode	no
Required master port type	A
Process data analogue	3
Min. process cycle time [ms]	3.2
IO-Link resolution pressure [bar]	0.02
IO-Link process data (cyclical)	function bit length pressure 16 device status 4
IO-Link functions (acyclical)	application specific tag; internal temperature
Supported DeviceIDs	Type of operation DeviceID default 659

Operating conditions

Ambient temperature [°C]	-25...80
Storage temperature [°C]	-40...100
Protection	IP 67; IP 68; IP 69K

Tests / approvals

EMC	DIN EN 61000-6-2 DIN EN 61000-6-3
Shock resistance	DIN EN 60068-2-27 50 g (11 ms)
Vibration resistance	DIN EN 60068-2-6 20 g (10...2000 Hz)
MTTF [years]	323
Note on approval	factory certificate available as download at www.factory-certificate.ifm
UL approval	UL Approval no. J023

Weight [g]	330.15
Materials	stainless steel (1.4404 / 316L); PBT
Materials (wetted parts)	ceramics (99.9 % Al2O3); stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4; PTFE
Min. pressure cycles	100 million
Tightening torque [Nm]	20
Process connection	threaded connection G 1 external thread sealing cone

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
