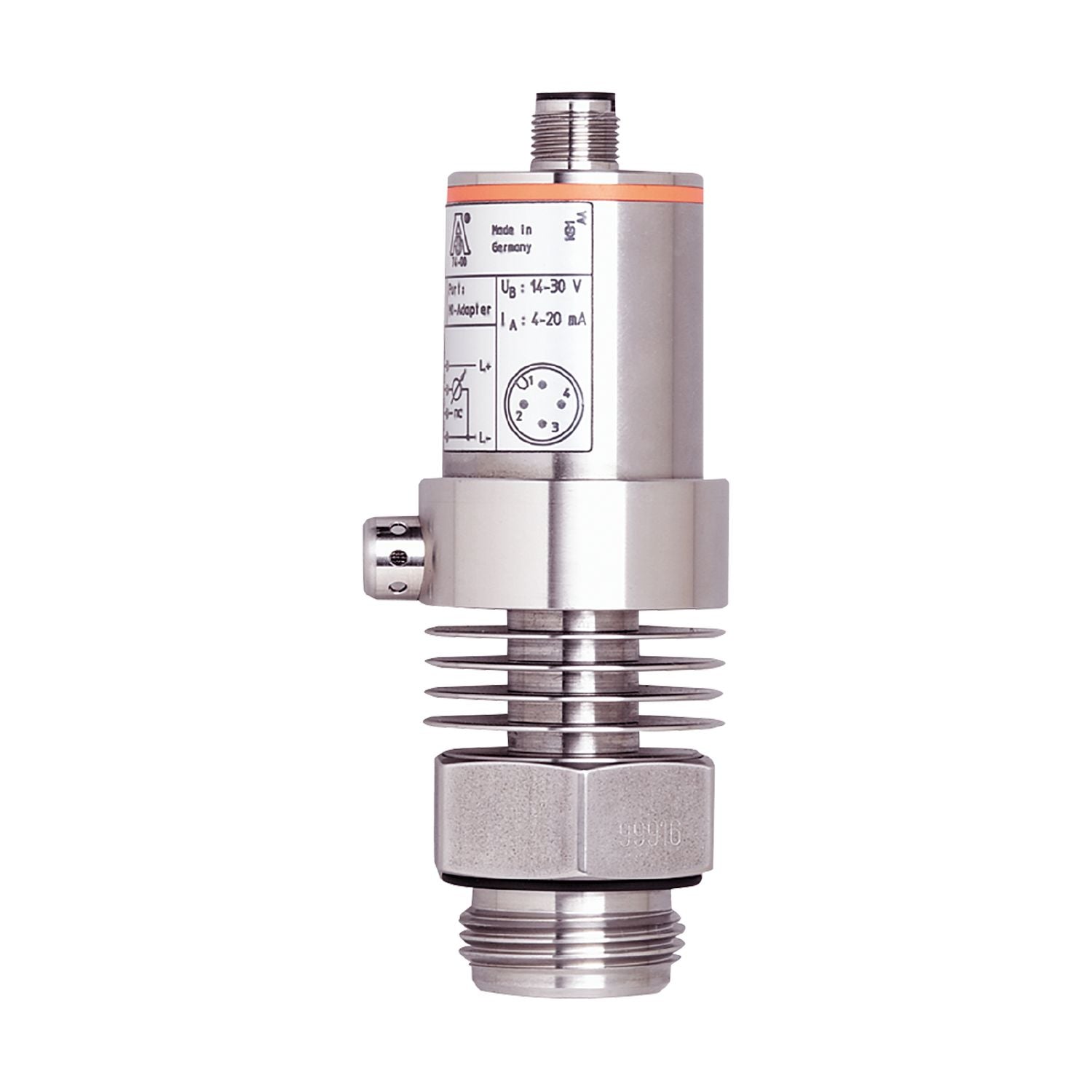

IFM PM2058 - Flush pressure transmitter PM-,25BRES30-E-ZVG/US/ /P

For the reliable hydrostatic level detection.
Flush mount installation in the tank or container wall.
Robust potted stainless steel housing as protection against aggressive media and ingress of moisture.
Scalable analogue output with adjustable span and zero point.
Can be connected as two-wire or three-wire

Number of inputs and outputs	Number of analogue outputs: 1
Measuring range	-0.0125...0.25 bar -12.5...250 mbar -5...100.4 inH2O -1.25...25 kPa
Process connection	threaded connection Aseptoflex external thread Aseptoflex

Special feature	Gold-plated contacts
Application	flush mountable for the food and beverage industry
Media	viscous media and liquids with suspended particles; liquids and gases
Medium temperature [°C]	-25...125;(145 max. 1h)
Min. bursting pressure	30000 mbar 12000 inH2O 3000 kPa
Pressure rating	6000 mbar 2400 inH2O 600 kPa
Type of pressure	relative pressure
No dead space	yes

Operating voltage [V]	14...30 DC
Min. insulation resistance [MΩ]	100;(500 V DC)
Protection class	III
Reverse polarity protection	yes
Measuring principle	hydrostatic

Inputs / outputs

Number of inputs and outputs	Number of analogue outputs: 1

Outputs

Total number of outputs	1
Output signal	analogue signal
Number of analogue outputs	1
Analogue current output [mA]	4...20
Max. load [Ω]	550;(Ub = 24 V; (Ub - 13 V) / 20 mA)
Overload protection	yes

Measuring/setting range

Measuring range	-0.0125...0.25 bar -12.5...250 mbar -5...100.4 inH2O -1.25...25 kPa
Analogue start point	-12.5...100 mbar -5...40.2 inH2O -1.25...10 kPa
Analogue end point	50...250 mbar 20.2...100.4 inH2O 5...25 kPa
In steps of	0.5 mbar 0.2 inH2O 0.05 kPa
Factory setting	ASP = 0.0 mbar AEP = 250.0 mbar

Accuracy / deviations

Repeatability [% of the span]	< ± 0,1;(with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation [% of the span]	< ± 0,6;(Turn down 1:1 , linearity, incl. hysteresis and repeatability , limit value setting to DIN EN IEC 62828-1)
Linearity deviation [% of the span]	< ± 0,5;(Turn down 1:1)
Hysteresis deviation [% of the span]	< ± 0,1;(Turn down 1:1)
Long-term stability [% of the span]	< ± 0,1;(Turn down 1:1; per year)
Temperature coefficient zero point [% of the span / 10 K]	< ± 0,1;(0...80 °C)
Temperature coefficient span [% of the span / 10 K]	< ± 0,4;(0...80 °C)

Response times

Max. response time analogue output [ms]	3

Software / programming

Parameter setting options	zero point; span

Interfaces

Communication interface	EPS

Operating conditions

Ambient temperature [°C]	-25...80
Storage temperature [°C]	-40...100
Protection	IP 67

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 1 GHz / accuracy < 2,5% EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V
Shock resistance	DIN IEC 68-2-27 50 g (11 ms)
Vibration resistance	DIN IEC 68-2-6 20 g (10...2000 Hz)
MTTF [years]	271

Weight [g]	469.5
Materials	stainless steel (1.4404 / 316L); PEI; FKM
Materials (wetted parts)	ceramics (99.9 % Al2O3); stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4; PTFE
Min. pressure cycles	100 million
Process connection	threaded connection Aseptoflex external thread Aseptoflex

anzeigen-bedienelemente

Remarks	The 3-A qualification is only valid if adapters with 3-A qualification are used for installation.
Notes	Please do not use for new projects.; no more adapters available as accessories
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PM2058-01 — 13.04.2023 —
