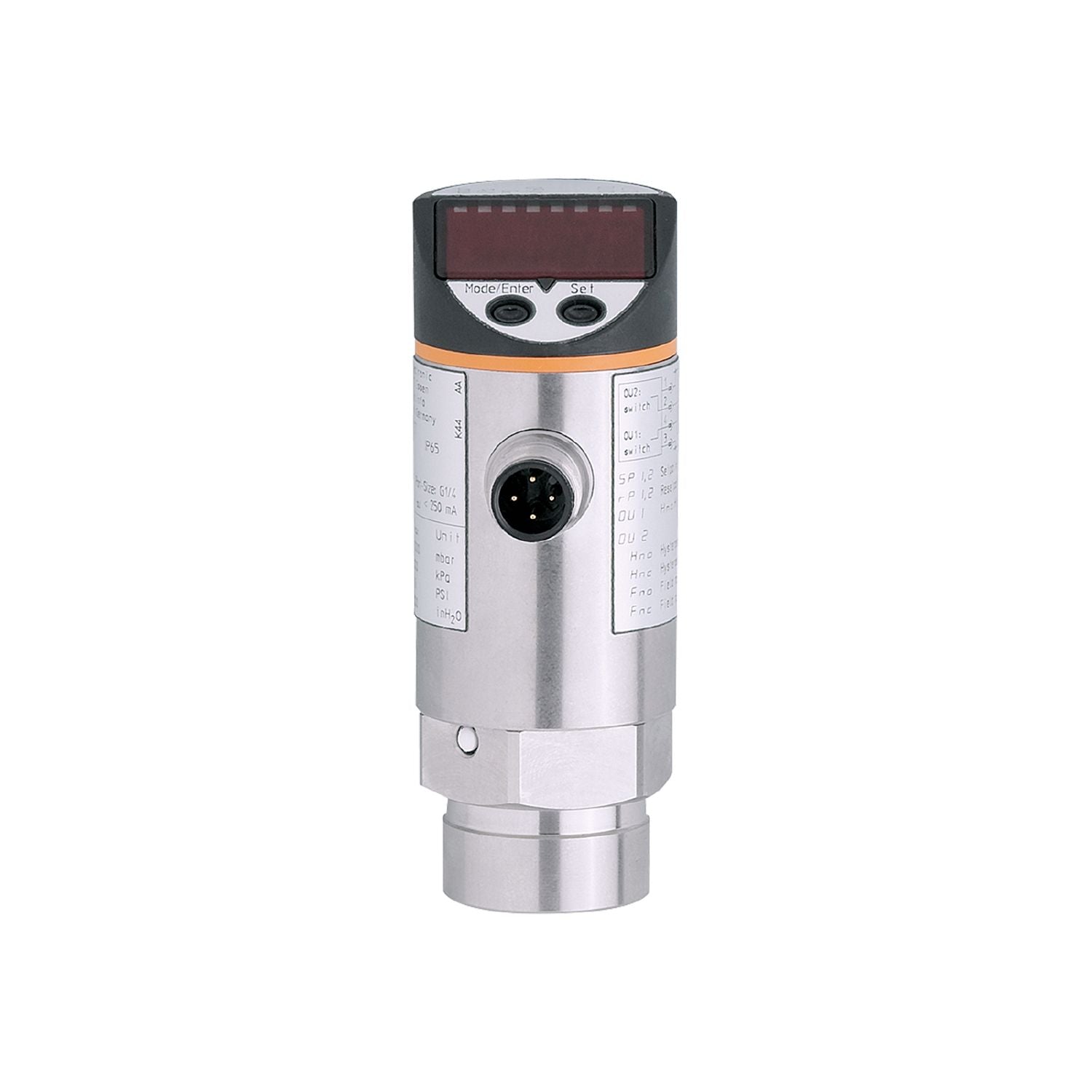

Two switching outputs, one of them programmable as analogue output. Clearly visible 4-digit LED display. Country-specific pressure units selectable. With long-term stability thanks to high overload protection. Selectable output polarity
Number of inputs and outputs
Number of digital outputs: 2; Number of analogue outputs: 1
Measuring range
0...400 bar
0...5800 psi
0...40 MPa
Process connection
threaded connection G 1/4 internal thread
Special feature
Gold-plated contacts
Application
for industrial applications
Media
liquids and gases
Conditionally suitable for
use in gases at pressures > 25 bar only on request
Medium temperature [°C]
-25...80
Min. bursting pressure
1000 bar
14500 psi
100 MPa
Pressure rating
600 bar
8700 psi
60 MPa
Type of pressure
relative pressure
Operating voltage [V]
18...32 DC;(to SELV/PELV)
Current consumption [mA]
< 35
Min. insulation resistance [MΩ]
100;(500 V DC)
Protection class
III
Reverse polarity protection
yes
Power-on delay time [s]
0.3
Integrated watchdog
yes
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 2; Number of analogue outputs: 1
Permanent current rating of switching output DC [mA]
250
Switching frequency DC [Hz]
< 500
Number of analogue outputs
1
Analogue current output [mA]
4...20; (scalable 1:4)
Max. load [Ω]
(Ub - 10 V) / 20 mA
Analogue voltage output [V]
0...10; (scalable 1:4)
Min. load resistance [Ω]
2000
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Measuring/setting range
Measuring range
0...400 bar
0...5800 psi
0...40 MPa
Set point SP
4...400 bar
60...5800 psi
0.4...40 MPa
Reset point rP
2...398 bar
30...5770 psi
0.2...39.8 MPa
Analogue start point
0...300 bar
0...4350 psi
0...30 MPa
Analogue end point
100...400 bar
1450...5800 psi
10...40 MPa
In steps of
1 bar
10 psi
0.1 MPa
Factory setting
SP1 = 100 bar
rP1 = 92 bar
SP2 = 300 bar
rP2 = 292 bar
ASP = 0 bar
AEP = 400 bar
Accuracy / deviations
Switch point accuracy [% of the span]
< ± 0,4;(Turn down 1:1)
Repeatability [% of the span]
< ± 0,1;(with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation [% of the span]
< ± 0,25 (BFSL) / < ± 0,5 (LS);(Turn down 1:1; BFSL = Best Fit Straight Line; LS = limit value setting)
Hysteresis deviation [% of the span]
< ± 0,1;(Turn down 1:1)
Long-term stability [% of the span]
< ± 0,1;(Turn down 1:1; per year)
Temperature coefficient zero point [% of the span / 10 K]
< ± 0,2;(0...80 °C)
Temperature coefficient span [% of the span / 10 K]
< ± 0,2;(0...80 °C)
Response times
Response time [ms]
< 1.5
Damping process value dAP [s]
0.01...4
Damping for the analogue output dAA [s]
0.01...4
Max. response time analogue output [ms]
3
Software / programming
Parameter setting options
hysteresis / window; normally open / normally closed; switching logic; current/voltage output; Damping; adaptation of displayed values; display can be rotated and switched off; Display unit; zero point; span
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.0
Profiles
no profile
SIO mode
yes
Required master port type
A
Process data analogue
1
Process data binary
2
Min. process cycle time [ms]
2.3
Supported DeviceIDs
Type of operation
DeviceID
default
56
Operating conditions
Ambient temperature [°C]
-25...80
Storage temperature [°C]
-40...100
Protection
IP 67
Tests / approvals
EMC
EN 61000-4-2 ESD
4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-5 Surge
0,5/1 kV
EN 61000-4-6 HF conducted
10 V
Shock resistance
DIN IEC 68-2-27
50 g (11 ms)
Vibration resistance
DIN IEC 68-2-6
20 g (10...2000 Hz)
MTTF [years]
131
Pressure Equipment Directive
Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Connector: 1 x M12; coding: A; Contacts: gold-plated
