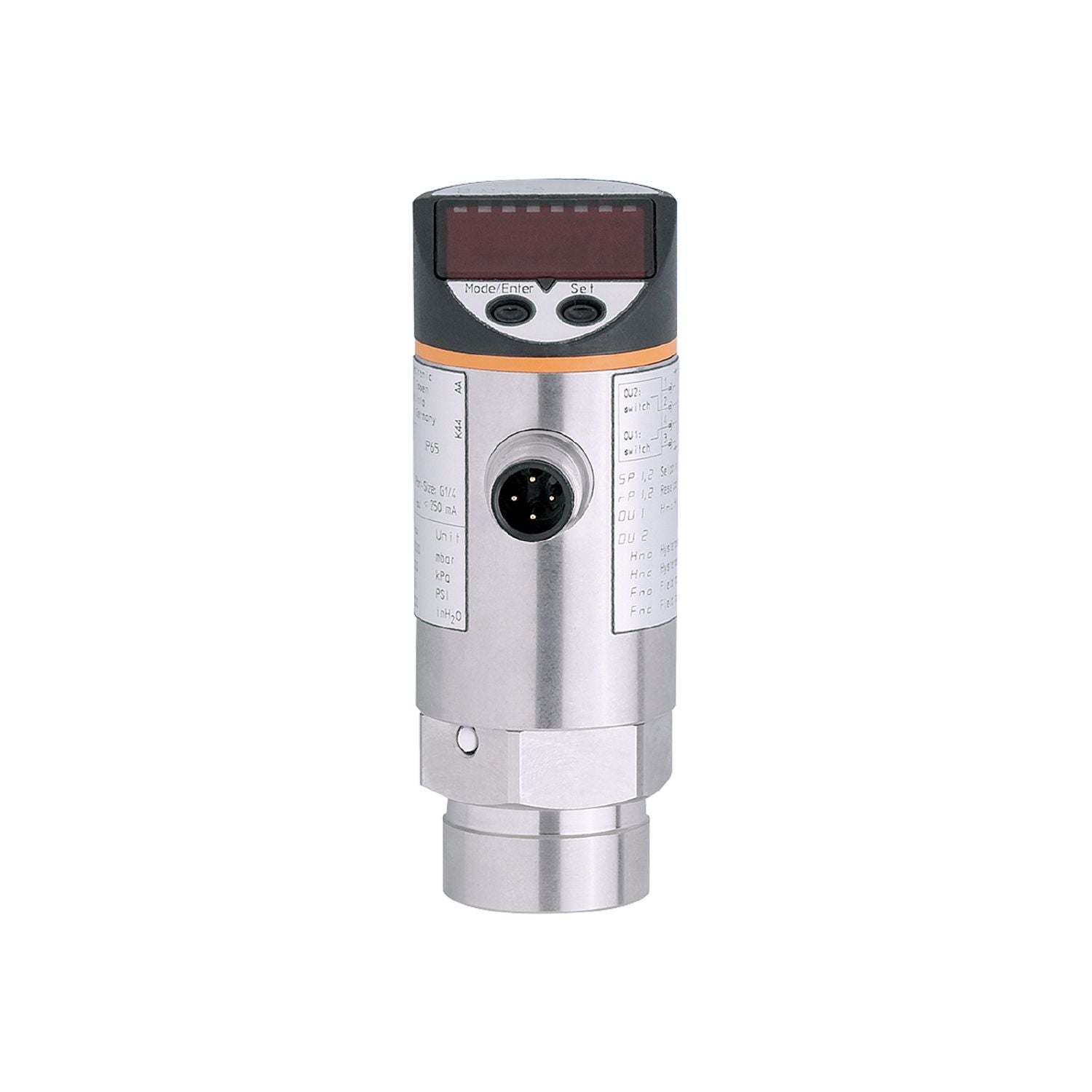

Two switching outputs, one of them programmable as analogue output. Clearly visible 4-digit LED display. Country-specific pressure units selectable. With long-term stability thanks to high overload protection. Selectable output polarity
Number of inputs and outputs
Number of digital outputs: 2; Number of analogue outputs: 1
Measuring range
-1...10 bar
-14.5...145 psi
-100...1000 kPa
-0.1...1 MPa
Process connection
threaded connection G 1/4 internal thread
Special feature
Gold-plated contacts
Application
for industrial applications
Media
liquids and gases
Medium temperature [°C]
-25...80
Min. bursting pressure
150 bar
2175 psi
15 MPa
Pressure rating
75 bar
1088 psi
7.5 MPa
Type of pressure
relative pressure
Operating voltage [V]
18...32 DC;(to SELV/PELV)
Current consumption [mA]
< 35
Min. insulation resistance [MΩ]
100;(500 V DC)
Protection class
III
Reverse polarity protection
yes
Power-on delay time [s]
0.3
Integrated watchdog
yes
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 2; Number of analogue outputs: 1
Permanent current rating of switching output DC [mA]
250
Switching frequency DC [Hz]
< 500
Number of analogue outputs
1
Analogue current output [mA]
4...20; (scalable 1:4)
Max. load [Ω]
(Ub - 10 V) / 20 mA
Analogue voltage output [V]
0...10; (scalable 1:4)
Min. load resistance [Ω]
2000
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Measuring/setting range
Measuring range
-1...10 bar
-14.5...145 psi
-100...1000 kPa
-0.1...1 MPa
Set point SP
-0.88...10 bar
-12.8...145 psi
-0.088...1 MPa
Reset point rP
-0.94...9.94 bar
-13.6...144.2 psi
-0.094...0.994 MPa
Analogue start point
-1...7.26 bar
-14.6...105.2 psi
-0.1...0.726 MPa
Analogue end point
1.76...10 bar
25.4...145 psi
0.176...1 MPa
In steps of
0.02 bar
0.29 psi
0.002 MPa
Factory setting
SP1 = 2.50 bar
rP1 = 2.30 bar
SP2 = 7.50 bar
rP2 = 7.30 bar
ASP = 0.00 bar
AEP = 10.00 bar
Accuracy / deviations
Switch point accuracy [% of the span]
< ± 0,4;(Turn down 1:1)
Repeatability [% of the span]
< ± 0,1;(with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation [% of the span]
< ± 0,25 (BFSL) / < ± 0,5 (LS);(Turn down 1:1; BFSL = Best Fit Straight Line; LS = limit value setting)
Hysteresis deviation [% of the span]
< ± 0,1;(Turn down 1:1)
Long-term stability [% of the span]
< ± 0,1;(Turn down 1:1; per year)
Temperature coefficient zero point [% of the span / 10 K]
< ± 0,1;(-25...80 °C)
Temperature coefficient span [% of the span / 10 K]
< ± 0,2;(-25...80 °C)
Response times
Response time [ms]
< 1.5
Damping process value dAP [s]
0.01...4
Damping for the analogue output dAA [s]
0.01...4
Max. response time analogue output [ms]
3
Software / programming
Parameter setting options
hysteresis / window; normally open / normally closed; switching logic; current/voltage output; Damping; adaptation of displayed values; display can be rotated and switched off; Display unit; zero point; span
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.0
Profiles
no profile
SIO mode
yes
Required master port type
A
Process data analogue
1
Process data binary
2
Min. process cycle time [ms]
2.3
Supported DeviceIDs
Type of operation
DeviceID
default
60
Operating conditions
Ambient temperature [°C]
-25...80
Storage temperature [°C]
-40...100
Protection
IP 65
Tests / approvals
EMC
EN 61000-4-2 ESD
4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-5 Surge
0,5/1 kV
EN 61000-4-6 HF conducted
10 V
Shock resistance
DIN IEC 68-2-27
50 g (11 ms)
Vibration resistance
DIN IEC 68-2-6
20 g (10...2000 Hz)
MTTF [years]
162.52
Pressure Equipment Directive
Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Connector: 1 x M12; coding: A; Contacts: gold-plated
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PN2024-01 — 08.09.2015 —
