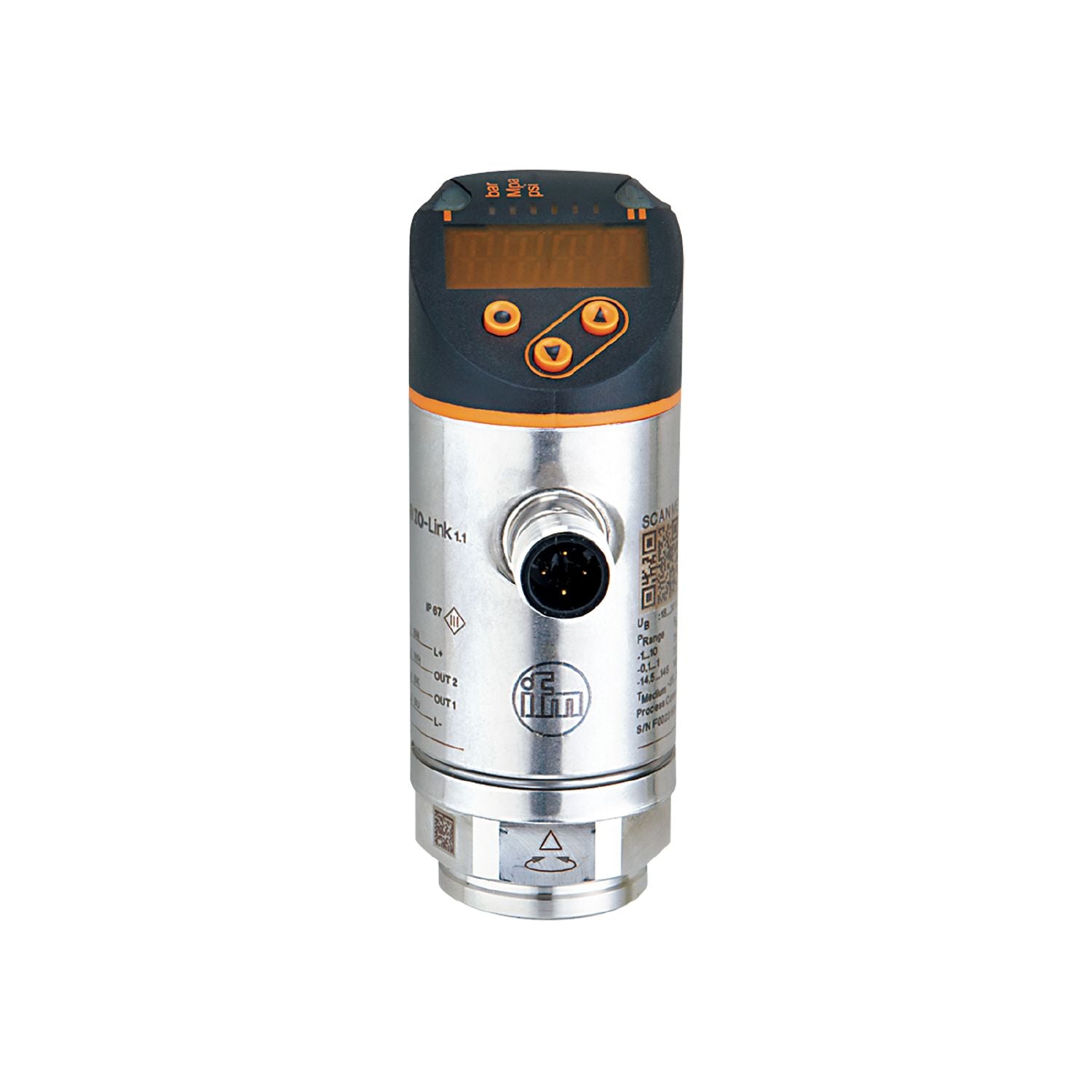

IFM PN3097 - Pressure sensor with display PN-001BRER14-MFRKG/US/ /V

Programmable switching output with IO-Link and analogue output.
Red/green display for clear identification of the acceptable range.
The process connection can be rotated for optimum alignment.
With long-term stability thanks to high overload protection.
Robust design for use in harsh industrial environments

Number of inputs and outputs	Number of digital outputs: 1; Number of analogue outputs: 1
Measuring range	0...1 bar 0...1000 mbar 0...14.5 psi 0...29.5 inHg 0...100 kPa
Process connection	threaded connection G 1/4 internal thread M6 I

Special feature	Gold-plated contacts
Measuring element	ceramic-capacitive pressure measuring cell
Application	for industrial applications
Media	liquids and gases
Medium temperature [°C]	-25...80
Min. bursting pressure	30000 mbar 450 psi 880 inHg 3000 kPa
Pressure rating	10000 mbar 145 psi 290 inHg 1000 kPa
Vacuum resistance [mbar]	-1000
Type of pressure	relative pressure

Operating voltage [V]	18...30 DC;(to SELV/PELV)
Current consumption [mA]	< 35
Min. insulation resistance [MΩ]	100;(500 V DC)
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	0.3
Integrated watchdog	yes

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 1; Number of analogue outputs: 1

Outputs

Total number of outputs	2
Output signal	switching signal; analogue signal; IO-Link;(configurable)
Electrical design	PNP
Number of digital outputs	1
Output function	normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	150;(200 (...60 °C) 250 (...40 °C))
Switching frequency DC [Hz]	< 170
Number of analogue outputs	1
Analogue current output [mA]	4...20
Max. load [Ω]	500
Analogue voltage output [V]	0...10
Min. load resistance [Ω]	2000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Measuring/setting range

Measuring range	0...1 bar 0...1000 mbar 0...14.5 psi 0...29.5 inHg 0...100 kPa

Set point SP	10...1000 mbar 0.1...14.5 psi 0.2...29.5 inHg 1...100 kPa
Reset point rP	5...995 mbar 0.05...14.45 psi 0.1...29.4 inHg 0.5...99.5 kPa
Min. difference between SP and rP	5 mbar 0.1 psi 0.2 inHg 0.5 kPa
In steps of	5 mbar 0.05 psi 0.1 inHg 0.5 kPa

Set point SP	8...1000 mbar 0.12...14.5 psi 0.2...29.5 inHg 0.8...100 kPa
Reset point rP	3...995 mbar 0.05...14.43 psi 0.1...29.4 inHg 0.3...99.5 kPa
Min. difference between SP and rP	5 mbar 0.08 psi 0.2 inHg 0.5 kPa
In steps of	1 mbar 0.01 psi 0.1 inHg 0.1 kPa

Accuracy / deviations

Switch point accuracy [% of the span]	< ± 0,5
Repeatability [% of the span]	< ± 0,1;(with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]	< ± 0,25 (BFSL) / < ± 0,5 (LS);(BFSL = Best Fit Straight Line; LS = limit value setting)
Hysteresis deviation [% of the span]	< ± 0,25
Long-term stability [% of the span]	< ± 0,05;(per 6 months)
Temperature coefficient zero point [% of the span / 10 K]	< ± 0,2;(-0...80 °C)
Temperature coefficient span [% of the span / 10 K]	< ± 0,2;(-0...80 °C)

Response times

Response time [ms]	< 3
Delay time programmable dS, dr [s]	0...50
Damping process value dAP [s]	0...4
Damping for the analogue output dAA [s]	0...4
Max. response time analogue output [ms]	3

Software / programming

Parameter setting options	hysteresis / window; normally open / normally closed; switch-on/switch-off delay; Damping; Display unit; current/voltage output

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
SIO mode	yes
Required master port type	A
Process data analogue	1
Process data binary	1
Supported DeviceIDs	Type of operation DeviceID Factory setting / CMPT = 2 433 Status_B High Resolution / CMPT = 3 618
Note	For further information please see the IODD PDF file under "Downloads"

Profiles	Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
Min. process cycle time [ms]	2.3
IO-Link resolution pressure [mbar]	1
IO-Link resolution pressure [MPa]	0.0001
IO-Link process data (cyclical)	function bit length pressure 14 binary switching information 1
IO-Link functions (acyclical)	application specific tag

Profiles	Smart Sensor ED2: Digital Measuring Sensor (0x000A), Identification and Diagnosis (0x4000)
Min. process cycle time [ms]	3
IO-Link resolution pressure [mbar]	0.5
IO-Link resolution pressure [MPa]	0.00005
IO-Link process data (cyclical)	function bit length pressure 16 device status 4 binary switching information 1
IO-Link functions (acyclical)	application specific tag

Operating conditions

Ambient temperature [°C]	-25...80
Storage temperature [°C]	-40...100
Protection	IP 65; IP 67

Tests / approvals

EMC	DIN EN 61000-6-2 DIN EN 61000-6-3
Shock resistance	DIN EN 60068-2-27 50 g (11 ms)
Vibration resistance	DIN EN 60068-2-6 20 g (10...2000 Hz)
MTTF [years]	226
UL approval	UL Approval no. J004
Pressure Equipment Directive	Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Weight [g]	233.5
Materials	stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC
Materials (wetted parts)	stainless steel (1.4404 / 316L); Al2O3 (ceramics); FKM
Min. pressure cycles	100 million
Tightening torque [Nm]	25...35;(recommended tightening torque; depends on lubrication, seal and pressure rating)
Process connection	threaded connection G 1/4 internal thread M6 I
Restrictor element integrated	no (can be retrofitted)

Displays / operating elements

Display	Display unit 4 x LED, green (bar, psi, kPa, inHg) switching status 1 x LED, yellow measured values alphanumeric display, red/green 4-digit

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
