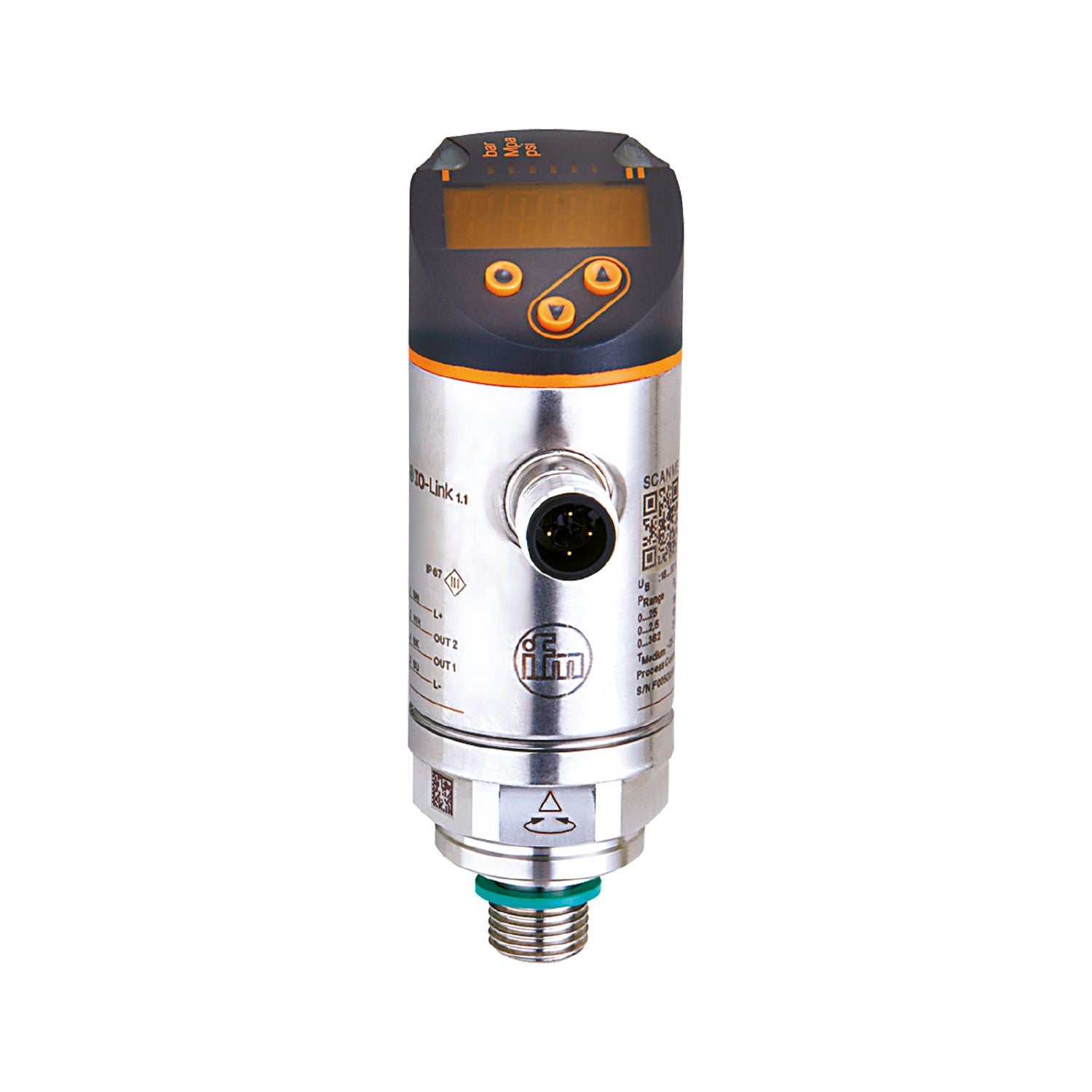

IFM PN3529 - Pressure sensor with display PN-0-1BREG14-MFRKG/US/ /V

Programmable switching output with IO-Link and analogue output.
Red/green display for clear identification of the acceptable range.
The process connection can be rotated for optimum alignment.
With long-term stability thanks to high overload protection.
Robust design for use in harsh industrial environments

Number of inputs and outputs	Number of digital outputs: 1; Number of analogue outputs: 1
Measuring range	-1...0 bar -1000...0 mbar -14.5...0 psi -29.5...0 inHg -100...0 kPa
Process connection	threaded connection G 1/4 external thread (DIN EN ISO 1179-2); internal thread:M5

Special feature	Gold-plated contacts
Measuring element	ceramic-capacitive pressure measuring cell
Application	for industrial applications
Media	liquids and gases
Medium temperature [°C]	-25...80
Min. bursting pressure	50000 mbar 725 psi 1450 inHg 5000 kPa
Pressure rating	20000 mbar 290 psi 590 inHg 2000 kPa
Vacuum resistance [mbar]	-1000
Type of pressure	relative pressure; vacuum

Operating voltage [V]	18...30 DC;(to SELV/PELV)
Current consumption [mA]	< 35
Min. insulation resistance [MΩ]	100;(500 V DC)
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	0.3
Integrated watchdog	yes

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 1; Number of analogue outputs: 1

Outputs

Total number of outputs	2
Output signal	switching signal; analogue signal; IO-Link;(configurable)
Electrical design	PNP
Number of digital outputs	1
Output function	normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	150;(200 (...60 °C) 250 (...40 °C))
Switching frequency DC [Hz]	< 170
Number of analogue outputs	1
Analogue current output [mA]	4...20
Max. load [Ω]	500
Analogue voltage output [V]	0...10
Min. load resistance [Ω]	2000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Measuring/setting range

Measuring range	-1...0 bar -1000...0 mbar -14.5...0 psi -29.5...0 inHg -100...0 kPa

Set point SP	-990...0 mbar -14.4...0 psi -29.3...0 inHg -99...0 kPa
Reset point rP	-995...-5 mbar -14.45...-0.05 psi -29.4...-0.1 inHg -99.5...-0.5 kPa
Min. difference between SP and rP	5 mbar 0.1 psi 0.2 inHg 0.5 kPa
In steps of	5 mbar 0.05 psi 0.1 inHg 0.5 kPa

Set point SP	-992...0 mbar -14.38...0 psi -29.3...0 inHg -99.2...0 kPa
Reset point rP	-997...-5 mbar -14.45...-0.07 psi -29.4...-0.1 inHg -99.7...-0.5 kPa
Min. difference between SP and rP	5 mbar 0.08 psi 0.2 inHg 0.5 kPa
In steps of	1 mbar 0.01 psi 0.1 inHg 0.1 kPa

Accuracy / deviations

Switch point accuracy [% of the span]	< ± 0,5
Repeatability [% of the span]	< ± 0,1;(with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]	< ± 0,25 (BFSL) / < ± 0,5 (LS);(BFSL = Best Fit Straight Line; LS = limit value setting)
Hysteresis deviation [% of the span]	< ± 0,25
Long-term stability [% of the span]	< ± 0,05;(per 6 months)
Temperature coefficient zero point [% of the span / 10 K]	< ± 0,2;(-0...80 °C)
Temperature coefficient span [% of the span / 10 K]	< ± 0,2;(-0...80 °C)

Response times

Response time [ms]	< 3
Delay time programmable dS, dr [s]	0...50
Damping process value dAP [s]	0...4
Damping for the analogue output dAA [s]	0...4
Max. response time analogue output [ms]	3

Software / programming

Parameter setting options	hysteresis / window; normally open / normally closed; switch-on/switch-off delay; Damping; Display unit; current/voltage output

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
SIO mode	yes
Required master port type	A
Process data analogue	1
Process data binary	1
Supported DeviceIDs	Type of operation DeviceID Factory setting / CMPT = 2 434 Status_B High Resolution / CMPT = 3 619
Note	For further information please see the IODD PDF file under "Downloads"

Profiles	Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
Min. process cycle time [ms]	2.3
IO-Link resolution pressure [mbar]	1
IO-Link resolution pressure [MPa]	0.001
IO-Link process data (cyclical)	function bit length pressure 14 binary switching information 1
IO-Link functions (acyclical)	application specific tag

Profiles	Digital Measuring Sensor (0x000A), Identification and Diagnosis (0x4000)
Min. process cycle time [ms]	3
IO-Link resolution pressure [mbar]	0.5
IO-Link resolution pressure [MPa]	0.0005
IO-Link process data (cyclical)	function bit length pressure 16 device status 4 binary switching information 1
IO-Link functions (acyclical)	application specific tag

Operating conditions

Ambient temperature [°C]	-25...80
Storage temperature [°C]	-40...100
Protection	IP 65; IP 67

Tests / approvals

EMC	DIN EN 61000-6-2 DIN EN 61000-6-3
Shock resistance	DIN EN 60068-2-27 50 g (11 ms)
Vibration resistance	DIN EN 60068-2-6 20 g (10...2000 Hz)
MTTF [years]	226
UL approval	UL Approval no. J004
Pressure Equipment Directive	Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Weight [g]	259.5
Materials	stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC
Materials (wetted parts)	stainless steel (1.4404 / 316L); Al2O3 (ceramics); FKM
Min. pressure cycles	100 million
Tightening torque [Nm]	25...35;(recommended tightening torque; depends on lubrication, seal and pressure rating)
Process connection	threaded connection G 1/4 external thread (DIN EN ISO 1179-2); internal thread:M5
Process connection sealing	FKM (DIN EN ISO 1179-2)
Restrictor element integrated	no (can be retrofitted)

Displays / operating elements

Display	Display unit 4 x LED, green (mbar, psi, kPa, inHg) switching status 1 x LED, yellow measured values alphanumeric display, red/green 4-digit

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
