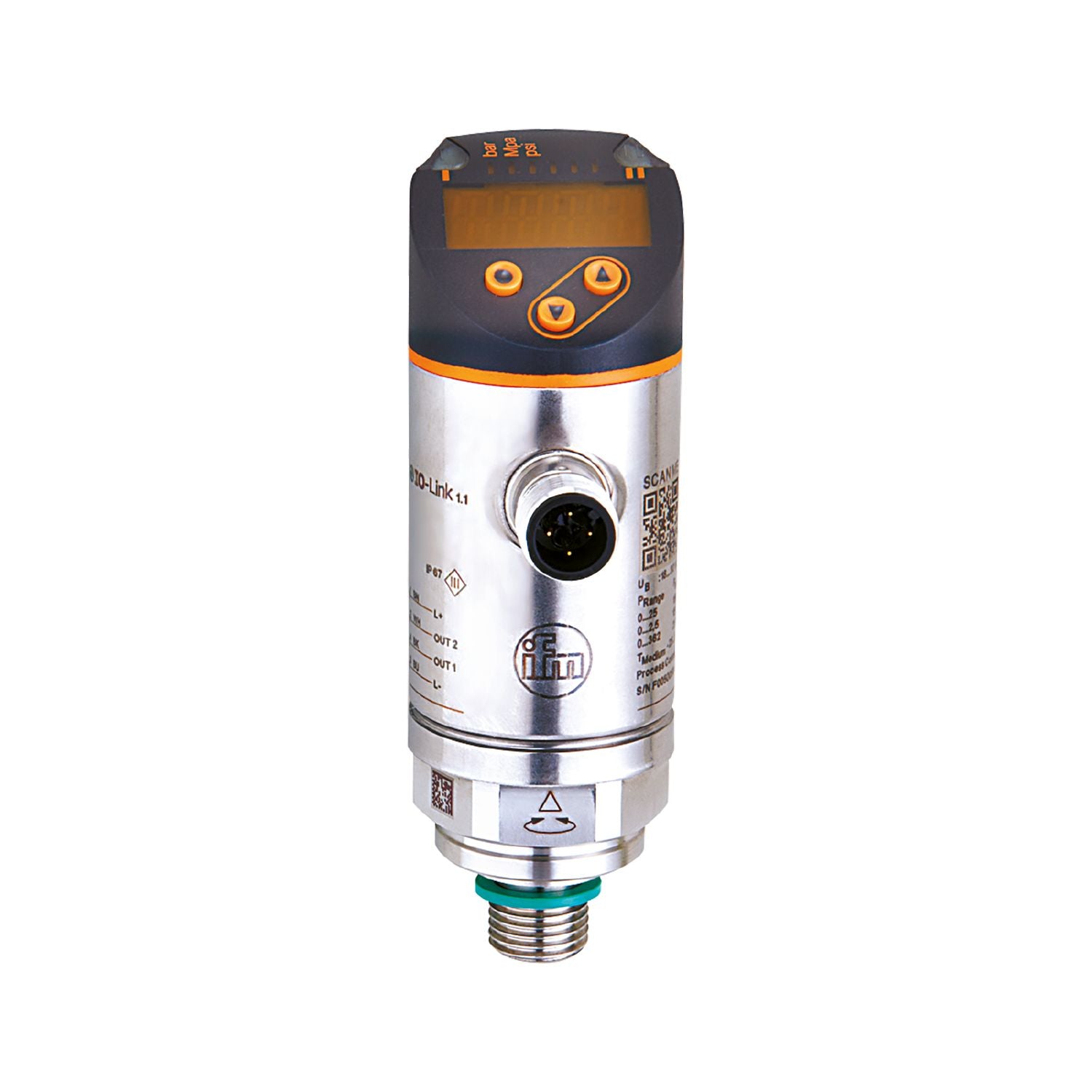

Two switching outputs, one of them with IO-Link communication interface. Red/green display for clear identification of the acceptable range. The process connection can be rotated for optimum alignment. With long-term stability thanks to high overload protection. Robust design for use in harsh industrial environments
Number of inputs and outputs
Number of digital outputs: 2
Measuring range
-1...16 bar
-14.6...232 psi
-0.1...1.6 MPa
Process connection
threaded connection G 1/4 external thread internal thread:M5
Special feature
Gold-plated contacts
Measuring element
ceramic-capacitive pressure measuring cell
Application
for industrial applications
Media
liquids and gases
Medium temperature [°C]
-25...80
Min. bursting pressure
150 bar
2200 psi
15 MPa
Pressure rating
85 bar
1250 psi
8.5 MPa
Vacuum resistance [mbar]
-1000
Type of pressure
relative pressure; vacuum
Operating voltage [V]
18...30 DC;(to SELV/PELV)
Current consumption [mA]
< 35
Min. insulation resistance [MΩ]
100;(500 V DC)
Protection class
III
Reverse polarity protection
yes
Power-on delay time [s]
< 0.3
Integrated watchdog
yes
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 2
Outputs
Total number of outputs
2
Output signal
switching signal; IO-Link;(configurable)
Electrical design
PNP/NPN
Number of digital outputs
2
Output function
normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
150;(200 (...60 °C) 250 (...40 °C))
Switching frequency DC [Hz]
< 170
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Measuring/setting range
Measuring range
-1...16 bar
-14.6...232 psi
-0.1...1.6 MPa
Set point SP
-0.87...16 bar
-12.6...232.1 psi
-0.087...1.6 MPa
Reset point rP
-0.95...15.92 bar
-13.8...230.9 psi
-0.095...1.592 MPa
Min. difference between SP and rP
0.08 bar
1.2 psi
0.008 MPa
In steps of
0.01 bar
0.1 psi
0.001 MPa
Accuracy / deviations
Switch point accuracy [% of the span]
< ± 0,5
Repeatability [% of the span]
< ± 0,1;(with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]
< ± 0,25 (BFSL) / < ± 0,5 (LS);(BFSL = Best Fit Straight Line; LS = limit value setting)
Hysteresis deviation [% of the span]
< ± 0,25
Long-term stability [% of the span]
< ± 0,05;(per 6 months)
Temperature coefficient zero point [% of the span / 10 K]
< ± 0,2;(0...80 °C)
Temperature coefficient span [% of the span / 10 K]
< ± 0,2;(0...80 °C)
Response times
Response time [ms]
< 3
Delay time programmable dS, dr [s]
0...50
Damping process value dAP [s]
0...4
Software / programming
Parameter setting options
hysteresis / window; normally open / normally closed; switching logic; switch-on/switch-off delay; Damping; Display unit
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
Profiles
Smart Sensor ED2: Digital Measuring Sensor (0x000A), Identification and Diagnosis (0x4000)
SIO mode
yes
Required master port type
A;(when pin 2 not connected: B)
Min. process cycle time [ms]
3
IO-Link resolution pressure [bar]
0.02
IO-Link process data (cyclical)
function
bit length
pressure
16
device status
4
binary switching information
2
IO-Link functions (acyclical)
application specific tag
Supported DeviceIDs
Type of operation
DeviceID
default
1197
Note
For further information please see the IODD PDF file under "Downloads"
Operating conditions
Ambient temperature [°C]
-25...80
Storage temperature [°C]
-40...100
Protection
IP 65; IP 67
Tests / approvals
EMC
DIN EN 61000-6-2
DIN EN 61000-6-3
Shock resistance
DIN EN 60068-2-27
50 g (11 ms)
Vibration resistance
DIN EN 60068-2-6
20 g (10...2000 Hz)
MTTF [years]
249
UL approval
UL Approval no.
J001
File number UL
E174189
Pressure Equipment Directive
Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Weight [g]
268
Materials
stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC
25...35;(recommended tightening torque; depends on lubrication, seal and pressure rating)
Process connection
threaded connection G 1/4 external thread internal thread:M5
Restrictor element integrated
no (can be retrofitted)
Displays / operating elements
Display
Display unit
3 x LED, green (bar, psi, MPa)
switching status
2 x LED, yellow
measured values
alphanumeric display, red/green 4-digit
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
