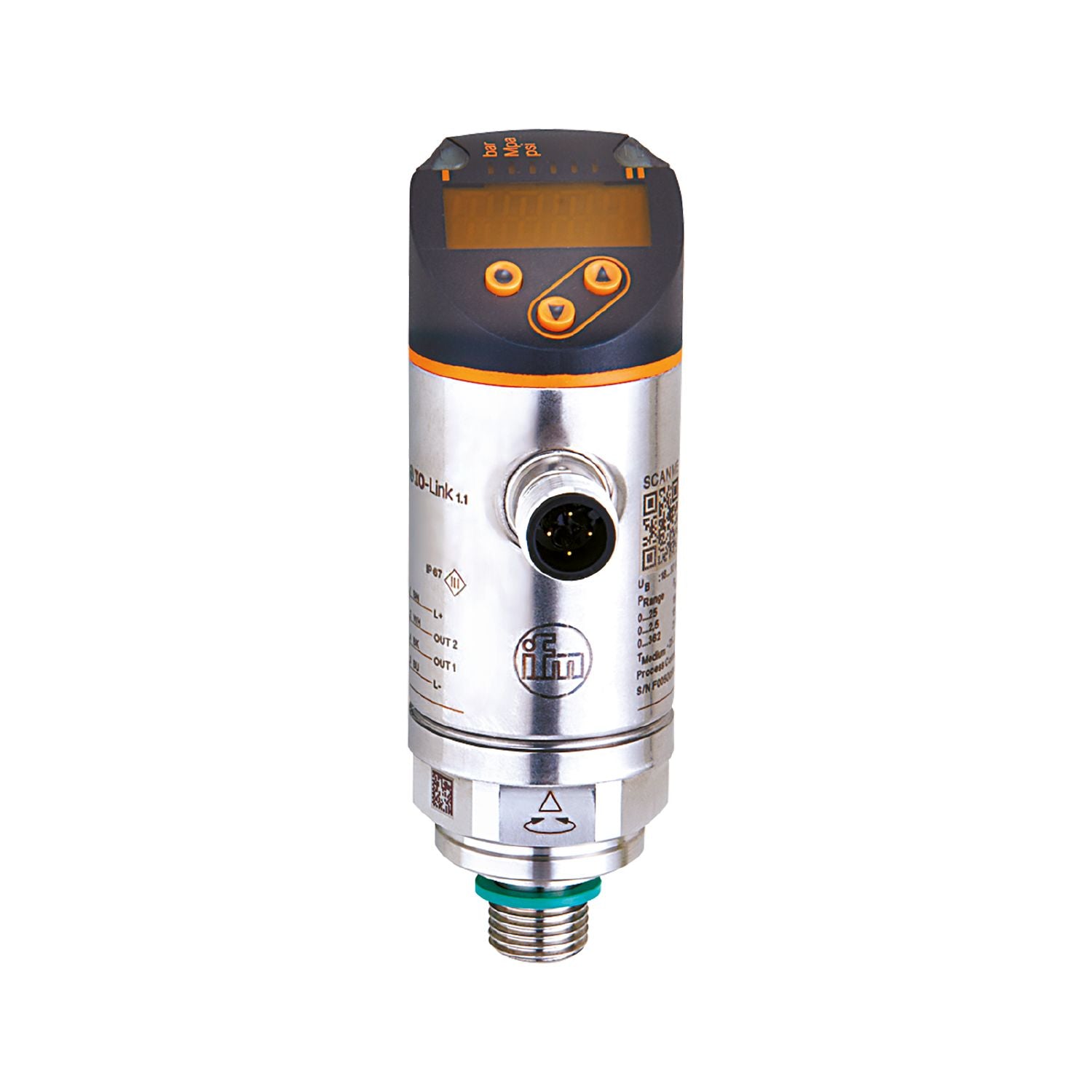

Two switching outputs, one of them with IO-Link communication interface. Red/green display for clear identification of the acceptable range. The process connection can be rotated for optimum alignment. With long-term stability thanks to high overload protection. Robust design for use in harsh industrial environments
Number of inputs and outputs
Number of digital outputs: 2
Measuring range
0...250 bar
0...3620 psi
0...25 MPa
Process connection
threaded connection G 1/4 external thread internal thread:M5
Special feature
Gold-plated contacts
Measuring element
metallic thin film cell
Application
for industrial applications
Media
liquids and gases
Medium temperature [°C]
-25...80
Min. bursting pressure
1100 bar
15950 psi
110 MPa
Pressure rating
500 bar
7250 psi
50 MPa
Vacuum resistance [mbar]
-1000
Type of pressure
relative pressure
Operating voltage [V]
18...30 DC;(to SELV/PELV)
Current consumption [mA]
< 35
Min. insulation resistance [MΩ]
100;(500 V DC)
Protection class
III
Reverse polarity protection
yes
Power-on delay time [s]
0.3
Integrated watchdog
yes
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 2
Outputs
Total number of outputs
2
Output signal
switching signal; IO-Link;(configurable)
Electrical design
PNP/NPN
Number of digital outputs
2
Output function
normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
150;(200 (...60 °C) 250 (...40 °C))
Switching frequency DC [Hz]
< 170
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Measuring/setting range
Measuring range
0...250 bar
0...3620 psi
0...25 MPa
Factory setting / CMPT = 2
Set point SP
2...250 bar
40...3620 psi
0.2...25 MPa
Reset point rP
1...249 bar
20...3600 psi
0.1...24.9 MPa
Min. difference between SP and rP
2 bar
20 psi
0.2 MPa
In steps of
1 bar
20 psi
0.1 MPa
Status_B High Resolution / CMPT = 3
Set point SP
2...250 bar
30...3626 psi
0.2...25 MPa
Reset point rP
1...249 bar
12...3608 psi
0.1...24.9 MPa
Min. difference between SP and rP
2 bar
19 psi
0.2 MPa
In steps of
1 bar
1 psi
0.1 MPa
Accuracy / deviations
Switch point accuracy [% of the span]
< ± 0,5
Repeatability [% of the span]
< ± 0,1;(with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]
< ± 0,25 (BFSL) / < ± 0,5 (LS);(BFSL = Best Fit Straight Line; LS = limit value setting)
Hysteresis deviation [% of the span]
< ± 0,25
Long-term stability [% of the span]
< ± 0,05;(per 6 months)
Temperature coefficient zero point [% of the span / 10 K]
0,2;(-25...80 °C)
Temperature coefficient span [% of the span / 10 K]
0,2;(-25...80 °C)
Response times
Response time [ms]
< 3
Delay time programmable dS, dr [s]
0...50
Software / programming
Parameter setting options
hysteresis / window; normally open / normally closed; switching logic; switch-on/switch-off delay; Damping; Display unit
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
SIO mode
yes
Required master port type
A;(when pin 2 not connected: B)
Process data analogue
1
Process data binary
2
Supported DeviceIDs
Type of operation
DeviceID
Factory setting / CMPT = 2
400
PN7001
308
Status_B High Resolution / CMPT = 3
598
Note
For further information please see the IODD PDF file under "Downloads"
Factory setting / CMPT = 2
Profiles
Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
Min. process cycle time [ms]
2.3
IO-Link resolution pressure [bar]
1
IO-Link resolution pressure [MPa]
0.1
IO-Link process data (cyclical)
function
bit length
pressure
14
binary switching information
2
IO-Link functions (acyclical)
application specific tag
Status_B High Resolution / CMPT = 3
Profiles
Smart Sensor ED2: Digital Measuring Sensor (0x000A), Identification and Diagnosis (0x4000)
Min. process cycle time [ms]
3
IO-Link resolution pressure [bar]
0.1
IO-Link resolution pressure [MPa]
0.01
IO-Link process data (cyclical)
function
bit length
pressure
16
device status
4
binary switching information
2
IO-Link functions (acyclical)
application specific tag
Operating conditions
Ambient temperature [°C]
-25...80
Storage temperature [°C]
-40...100
Protection
IP 65; IP 67
Tests / approvals
EMC
DIN EN 61000-6-2
DIN EN 61000-6-3
Shock resistance
DIN EN 60068-2-27
50 g (11 ms)
Vibration resistance
DIN EN 60068-2-6
20 g (10...2000 Hz)
MTTF [years]
214
UL approval
UL Approval no.
J003
Pressure Equipment Directive
Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
25...35;(recommended tightening torque; depends on lubrication, seal and pressure rating)
Process connection
threaded connection G 1/4 external thread internal thread:M5
Restrictor element integrated
no (can be retrofitted)
Displays / operating elements
Display
Display unit
3 x LED, green (bar, psi, MPa)
switching status
2 x LED, yellow
measured values
alphanumeric display, red/green 4-digit
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
