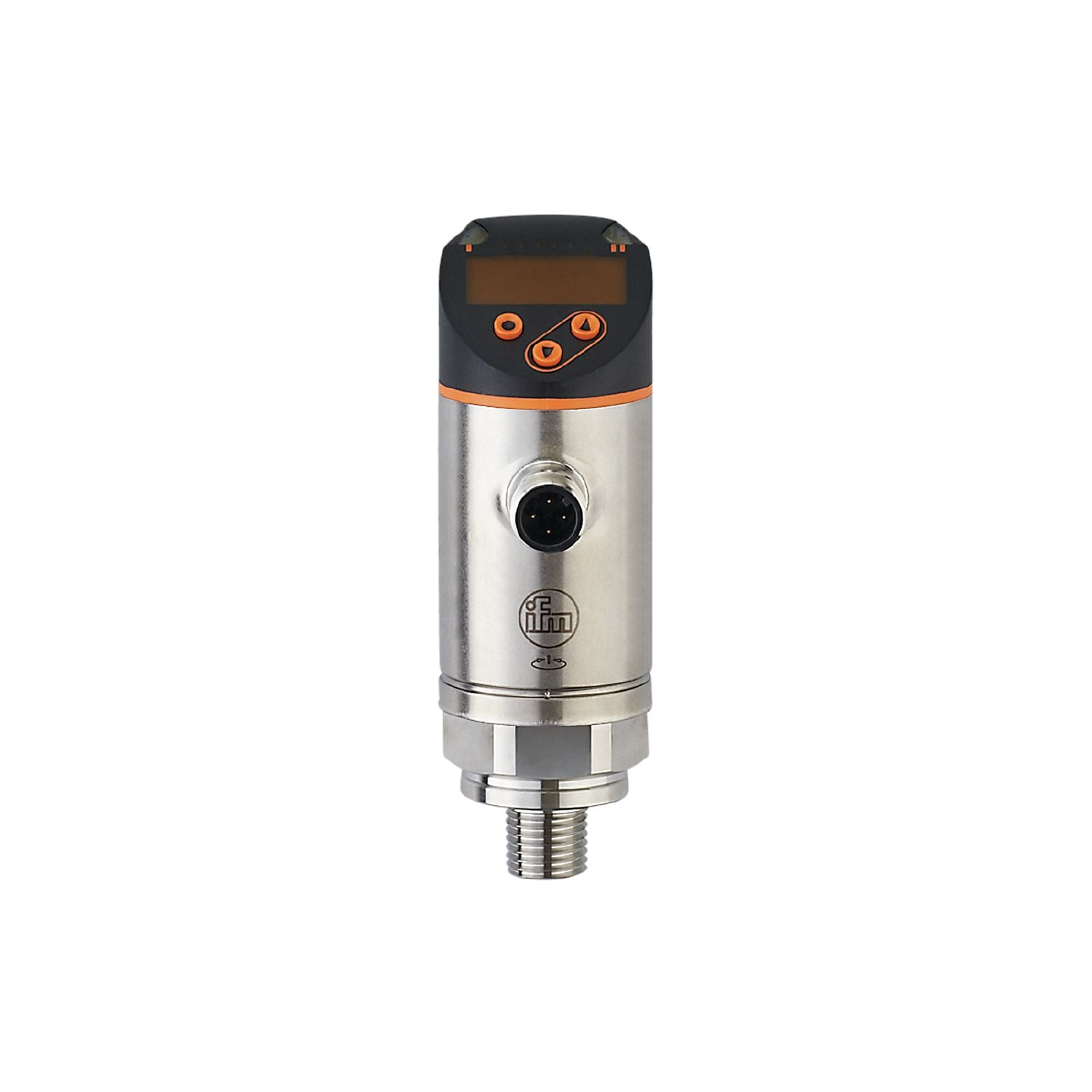

Two switching outputs, one of them with IO-Link communication interface. Red/green display for clear identification of the acceptable range. The process connection can be rotated for optimum alignment. With long-term stability thanks to high overload protection. Robust design for use in harsh industrial environments
Number of inputs and outputs
Number of digital outputs: 2
Measuring range
0...100 bar
0...1450 psi
0...10 MPa
Process connection
threaded connection 1/4" NPT external thread
Special feature
Gold-plated contacts
Measuring element
ceramic-capacitive pressure measuring cell
Application
for industrial applications
Media
Liquids
Conditionally suitable for
use in gases at pressures > 25 bar only on request
Medium temperature [°C]
-25...80
Min. bursting pressure
650 bar
9400 psi
65 MPa
Pressure rating
300 bar
4350 psi
30 MPa
Type of pressure
relative pressure
MAWP (for applications according to CRN) [bar]
125
Operating voltage [V]
18...30 DC;(to SELV/PELV)
Current consumption [mA]
< 35
Min. insulation resistance [MΩ]
100;(500 V DC)
Protection class
III
Reverse polarity protection
yes
Power-on delay time [s]
0.3
Integrated watchdog
yes
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 2
Outputs
Total number of outputs
2
Output signal
switching signal; IO-Link;(configurable)
Electrical design
PNP/NPN
Number of digital outputs
2
Output function
normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
150;(200 (...60 °C) 250 (...40 °C))
Switching frequency DC [Hz]
< 170
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Measuring/setting range
Measuring range
0...100 bar
0...1450 psi
0...10 MPa
Factory setting / CMPT = 2
Set point SP
1...100 bar
10...1450 psi
0.1...10 MPa
Reset point rP
0.5...99.5 bar
5...1445 psi
0.05...9.95 MPa
Min. difference between SP and rP
0.5 bar
10 psi
0.05 MPa
In steps of
0.5 bar
5 psi
0.05 MPa
Status_B High Resolution / CMPT = 3
Set point SP
0.8...100 bar
12...1450 psi
0.08...10 MPa
Reset point rP
0.3...99.5 bar
5...1443 psi
0.03...9.95 MPa
Min. difference between SP and rP
0.5 bar
8 psi
0.05 MPa
In steps of
0.1 bar
1 psi
0.01 MPa
Accuracy / deviations
Switch point accuracy [% of the span]
< ± 0,5
Repeatability [% of the span]
< ± 0,1;(with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]
< ± 0,25 (BFSL) / < ± 0,5 (LS);(BFSL = Best Fit Straight Line; LS = limit value setting)
Hysteresis deviation [% of the span]
< ± 0,25
Long-term stability [% of the span]
< ± 0,05;(per 6 months)
Temperature coefficient zero point [% of the span / 10 K]
< ± 0,2;(-0...80 °C)
Temperature coefficient span [% of the span / 10 K]
< ± 0,2;(-0...80 °C)
Response times
Response time [ms]
< 3
Delay time programmable dS, dr [s]
0...50
Software / programming
Parameter setting options
hysteresis / window; normally open / normally closed; switching logic; switch-on/switch-off delay; Damping; Display unit
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
SIO mode
yes
Required master port type
A;(when pin 2 not connected: B)
Supported DeviceIDs
Type of operation
DeviceID
Factory setting / CMPT = 2
452
Status_B High Resolution / CMPT = 3
629
Note
For further information please see the IODD PDF file under "Downloads"
Factory setting / CMPT = 2
Profiles
Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
Min. process cycle time [ms]
2.3
IO-Link resolution pressure [bar]
0.1
IO-Link resolution pressure [MPa]
0.01
IO-Link process data (cyclical)
function
bit length
pressure
14
binary switching information
2
IO-Link functions (acyclical)
application specific tag
Status_B High Resolution / CMPT = 3
Profiles
Smart Sensor ED2: Digital Measuring Sensor (0x000A), Identification and Diagnosis (0x4000)
Min. process cycle time [ms]
3
IO-Link resolution pressure [bar]
0.05
IO-Link resolution pressure [MPa]
0.005
IO-Link process data (cyclical)
function
bit length
pressure
16
device status
4
binary switching information
2
IO-Link functions (acyclical)
application specific tag
Operating conditions
Ambient temperature [°C]
-25...80
Storage temperature [°C]
-40...100
Protection
IP 65; IP 67
Tests / approvals
EMC
DIN EN 61000-6-2
DIN EN 61000-6-3
Shock resistance
DIN EN 60068-2-27
50 g (11 ms)
Vibration resistance
DIN EN 60068-2-6
20 g (10...2000 Hz)
MTTF [years]
286
UL approval
UL Approval no.
J002
Pressure Equipment Directive
Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Weight [g]
282
Materials
stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC
Materials (wetted parts)
stainless steel (1.4404 / 316L); ceramics; FKM
Min. pressure cycles
100 million
Tightening torque [Nm]
2...3 turns after hand-fastening; recommended tightening torque; depends on lubrication, seal and pressure rating
Process connection
threaded connection 1/4" NPT external thread
Restrictor element integrated
no (can be retrofitted)
Displays / operating elements
Display
Display unit
3 x LED, green (bar, psi, MPa)
switching status
2 x LED, yellow
measured values
alphanumeric display, red/green 4-digit
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
