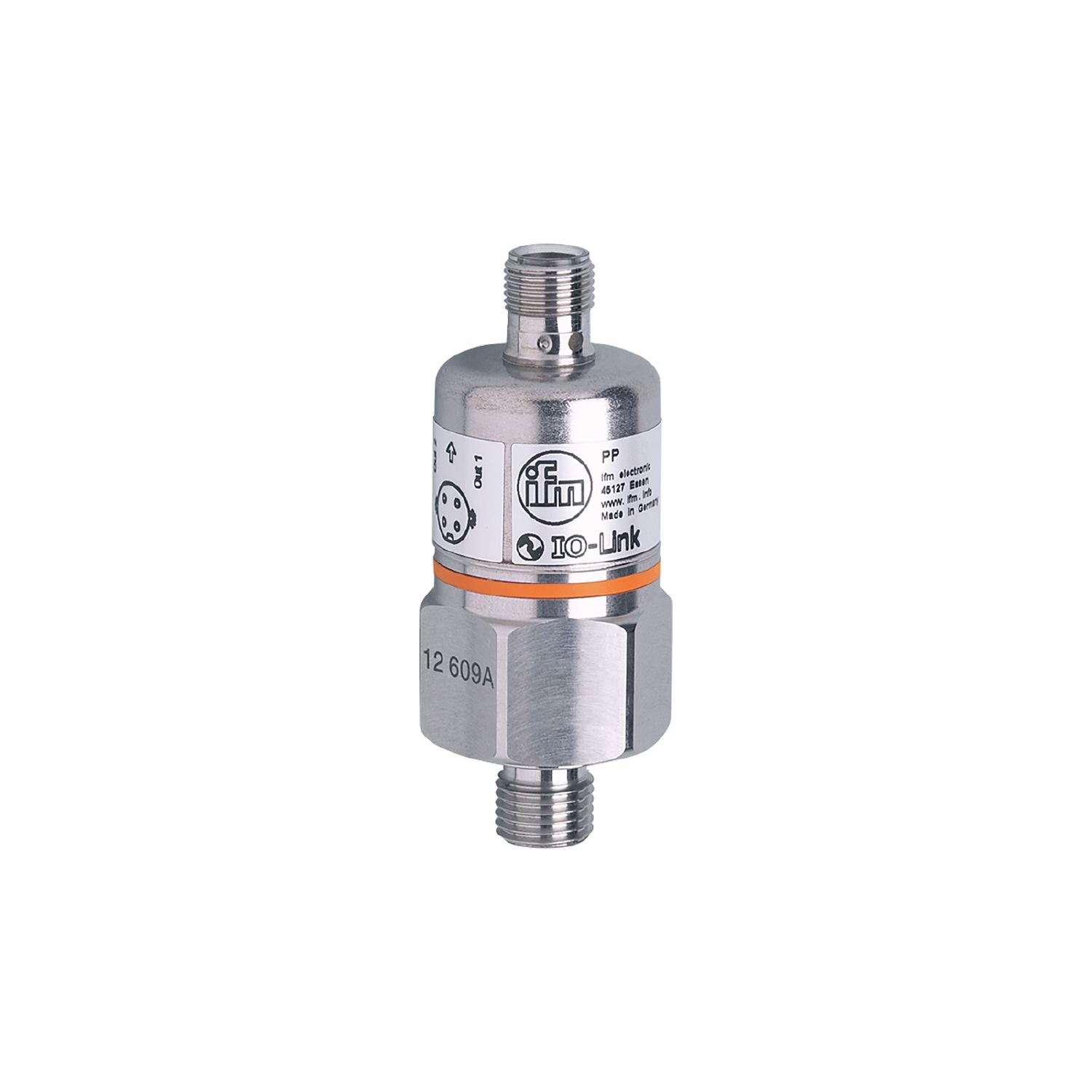

IFM PP000E - Pressure switch with ceramic measuring cell PP-400-SBG14-QFPKG/US/ /V

Suited for use in mobile machines.
Two switching outputs, one of which can be configured as diagnostic output.
High shock and vibration resistance.
Excellent EMC resistance

Number of inputs and outputs	Number of digital outputs: 2
Measuring range	0...400 bar 0...5800 psi 0...40 MPa
Process connection	threaded connection G 1/4 external thread internal thread:M5

Application	for mobile applications
Media	liquids and gases
Conditionally suitable for	use in gases at pressures > 25 bar only on request
Medium temperature [°C]	-25...90
Min. bursting pressure	1000 bar 14500 psi 100 MPa
Pressure rating	600 bar 8700 psi 60 MPa
Type of pressure	relative pressure

Operating voltage [V]	9.6...36 DC;(communication mode: 18...32)
Current consumption [mA]	< 45
Min. insulation resistance [MΩ]	100;(500 V DC)
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	0.3

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2

Outputs

Total number of outputs	2
Output signal	switching signal; IO-Link;(configurable)
Electrical design	PNP
Number of digital outputs	2
Output function	normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	170
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Measuring/setting range

Measuring range	0...400 bar 0...5800 psi 0...40 MPa
Set point SP	4...400 bar 60...5790 psi 0.4...40 MPa
Reset point rP	2...398 bar 30...5760 psi 0.2...39.8 MPa
In steps of	2 bar 30 psi 0.2 MPa
Factory setting	SP1 = 100 bar rP1 = 92 bar SP2 = 300 bar rP2 = 292 bar OUT1 = Hno OUT2 = Hno

Accuracy / deviations

Switch point accuracy [% of the span]	< ± 0,5
Repeatability [% of the span]	< ± 0,1;(with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]	< ± 0,25 (BFSL) / < ± 0,5 (LS);(BFSL = Best Fit Straight Line; LS = limit value setting)
Hysteresis deviation [% of the span]	< ± 0,1
Long-term stability [% of the span]	< ± 0,1;(per year)
Temperature coefficient zero point [% of the span / 10 K]	< ± 0,2;(0...80 °C)
Temperature coefficient span [% of the span / 10 K]	< ± 0,2;(0...80 °C)

Response times

Response time [ms]	< 3
Damping process value dAP in steps [s]	0,003 - 0,006 - 0,010 - 0,017 - 0,060 - 0,125 - 0,250 - 0,500

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.0
Profiles	no profile
SIO mode	yes
Required master port type	A
Process data analogue	1
Process data binary	2
Min. process cycle time [ms]	2.3
Supported DeviceIDs	Type of operation DeviceID default 2

Operating conditions

Ambient temperature [°C]	-25...85
Storage temperature [°C]	-40...100
Protection	IP 68;(7 days / 1 m water depth / 0.1 bar)

Tests / approvals

EMC	immunity EN 61000-6-2 EN 61000-4-2 ESD 4 kV contact discharge / 15 kV air discharge EN 61000-4-3 HF radiated 20 V/m EN 61000-4-4 Burst 4 kV coupling clamp EN 61000-4-5 Surge 0,5 kV supply / 1 kV signal for DC units EN 61000-4-6 HF conducted 10 V immunity ECE R 10,Rev. 5 absorber chamber test to ISO 11452-2: 80 V/m EN 50155 Klasse T3, C1, S1
Shock resistance	DIN IEC 60068-2-27 / DIN IEC 60068-2-29 1000 g DIN EN 61373 category 3
Vibration resistance	DIN IEC 68-2-6 20 g (10...2000 Hz) DIN EN 60068-2-64 14 g DIN EN 61373 category 2
MTTF [years]	310
Pressure Equipment Directive	Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Weight [g]	217.5
Materials	stainless steel (1.4301 / 304); FKM; EPDM/X; PA
Materials (wetted parts)	stainless steel (1.4305 / 303); ceramics; FKM
Min. pressure cycles	100 million
Process connection	threaded connection G 1/4 external thread internal thread:M5
Restrictor element integrated	yes

Displays / operating elements

Display	operation 2 x LED, green switching status 2 x LED, yellow
Teach function	yes

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A
