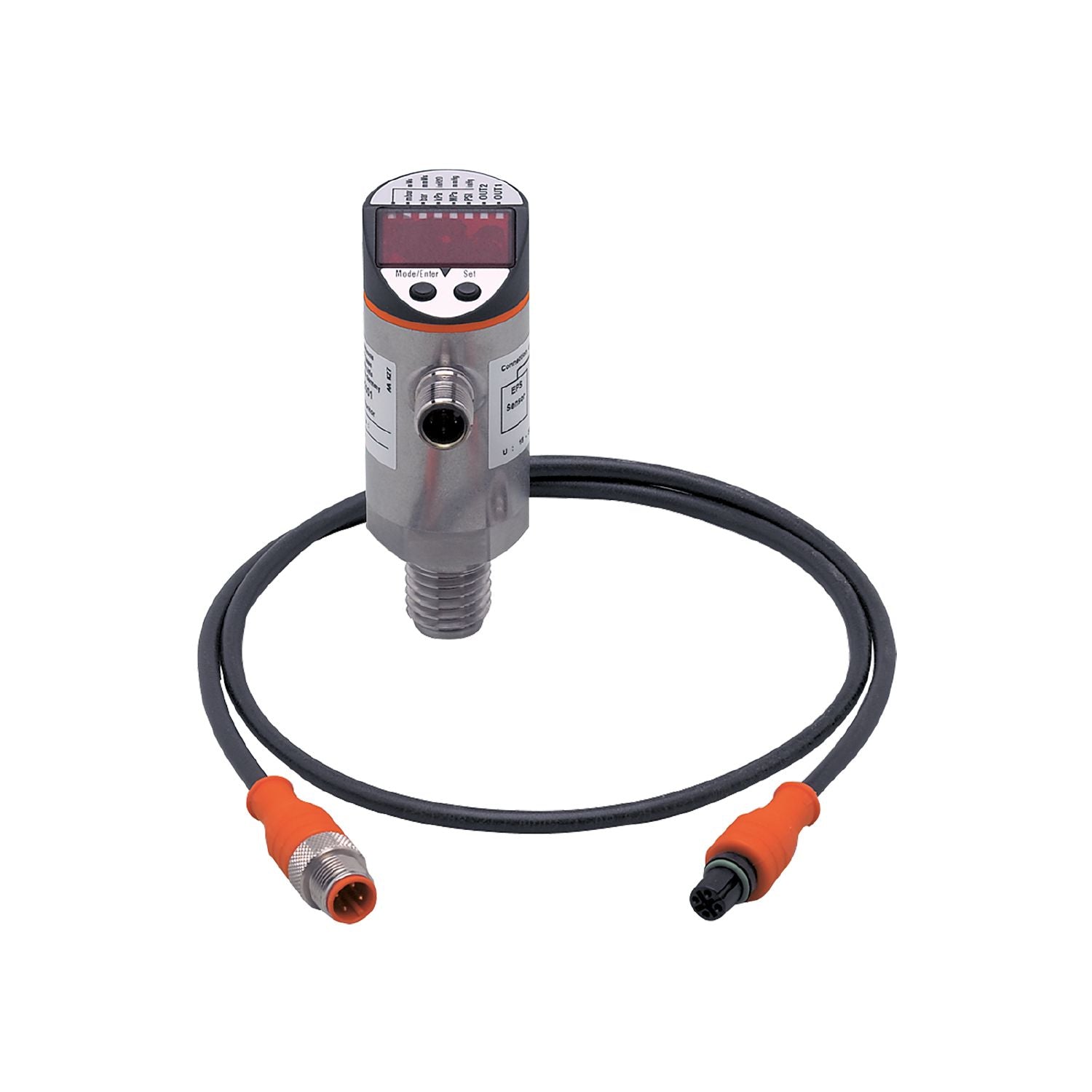

For diagnosis and parameterisation of pressure sensors. Automatic recognition of type, measuring range and current parameter set of the sensor. Indication of the current measured value of the sensor in the display. User-friendly sharing of the parameter set of one sensor with other sensors of the same type
Special feature
Gold-plated contacts
Application
for industrial applications
Operating voltage [V]
18...32 DC
Current consumption [mA]
< 40
Min. insulation resistance [MΩ]
100;(500 V DC)
Protection class
III
Reverse polarity protection
yes
Power-on delay time [s]
1.5...10;(depending on the connected sensor)
Outputs
Max. voltage drop switching output DC [V]
2
Permanent current rating of switching output DC [mA]
250
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Response times
Max. measuring/display cycle [ms]
200
Software / programming
Parameter setting options
depending on the connected sensor
Operating conditions
Ambient temperature [°C]
-25...80
Storage temperature [°C]
-40...100
Protection
IP 67;(for unit with screwed-on connectors)
Tests / approvals
EMC
EN 61000-4-2 ESD
4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-6 HF conducted
10 V
Shock resistance
DIN IEC 68-2-27
50 g (11 ms)
Vibration resistance
DIN IEC 68-2-6
20 g (10...2000 Hz)
MTTF [years]
229
Weight [g]
333.5
Dimensions [mm]
100 x 34 x 48
Materials
stainless steel (1.4404 / 316L); CO-PC; PBT; FKM
Displays / operating elements
Display
Display unit
6 x LED, green
switching status
2 x LED, yellow
function display
alphanumeric display, 4-digit
measured values
alphanumeric display, 4-digit
Accessories
Items supplied
jumper cables: 0,8 m, for parameter setting in the offline mode
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; Contacts: gold-plated
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PP2001-01 — 13.04.2023 —
