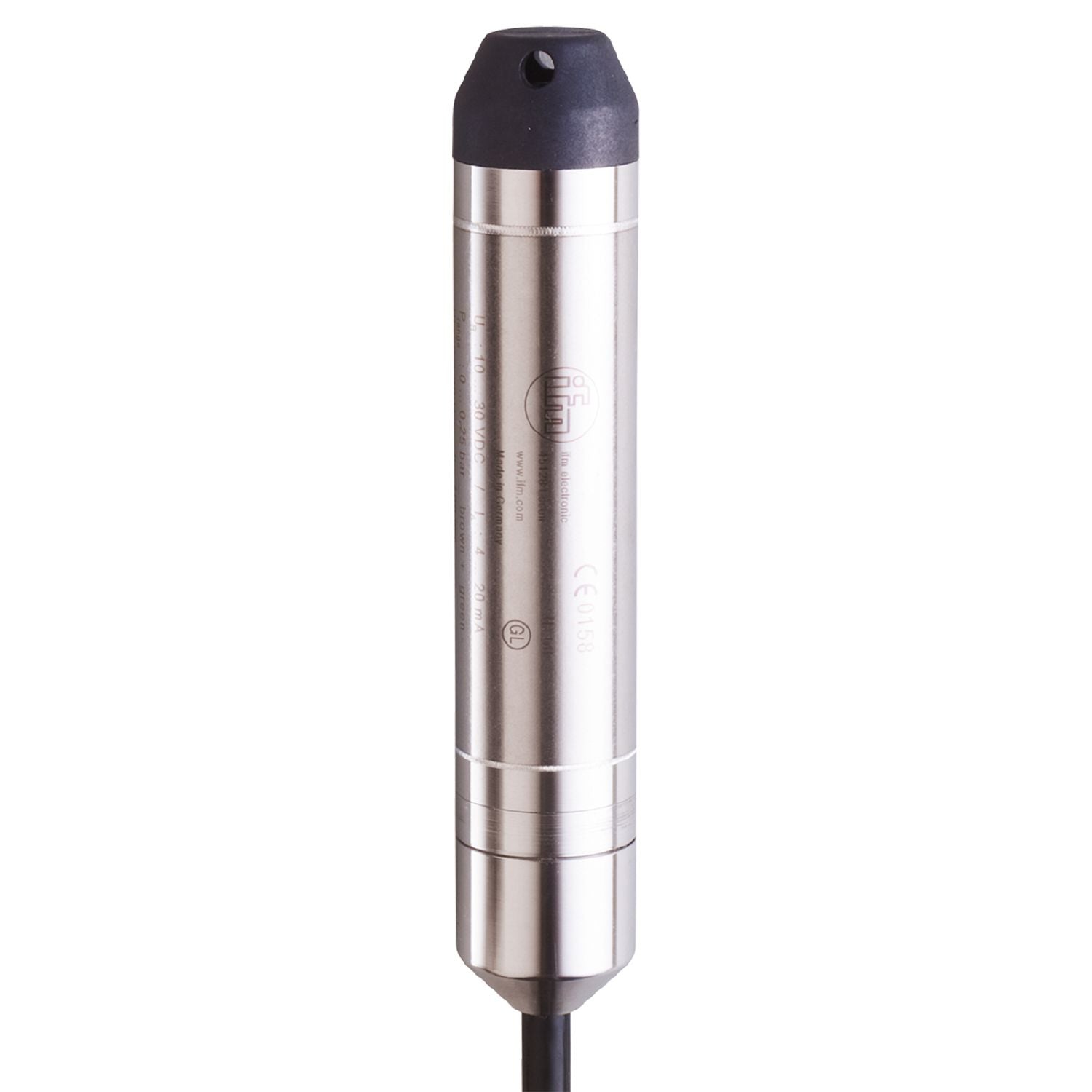

IFM PS4506 - Hydrostatic submersible pressure transmitter SUBMERSIBLE 0,6BAR 20M FEP CABLE

Low-cost, simple level measurement.
Pressure compensation via internally vented cable.
Reduced wiring complexity when operated as two-wire current loop.
High overall accuracy and long-term stability.
Robust stainless steel housing with high ingress resistance

Number of inputs and outputs	Number of analogue outputs: 1
Measuring range	0...0.6 bar 0...600 mbar 0...8.7 psi 0...240.9 inH2O 0...60 kPa

Design	with capillary tube for pressure compensation
Application	for industrial applications
Media	Liquids
Medium temperature [°C]	-10...85
Min. bursting pressure	4 bar 58 psi 400 kPa
Pressure rating	3 bar 43.5 psi 300 kPa
Type of pressure	relative pressure

Operating voltage [V]	10...30 DC
Protection class	III
Reverse polarity protection	yes
Measuring principle	hydrostatic

Inputs / outputs

Number of inputs and outputs	Number of analogue outputs: 1

Outputs

Total number of outputs	1
Output signal	analogue signal
Number of analogue outputs	1
Analogue current output [mA]	4...20
Max. load [Ω]	700;(Ub = 24 V; (Ub - 10 V) / 20 mA)
Short-circuit protection	yes

Measuring/setting range

Measuring range	0...0.6 bar 0...600 mbar 0...8.7 psi 0...240.9 inH2O 0...60 kPa

Accuracy / deviations

Repeatability [% of the span]	< 0,1;(with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]	< 0,25 (BFSL) / 0,5;(incl. linearity, zero and span error (limit value setting))
Linearity deviation [% of the span]	< 0,2 (BFSL)
Long-term stability [% of the span]	< 0,2;(per year)
Temperature coefficient zero point [% of the span / 10 K]	< ± 0,2;(0...50 °C)
Temperature coefficient span [% of the span / 10 K]	< ± 0,2;(0...50 °C)

Operating conditions

Ambient temperature [°C]	-10...85
Storage temperature [°C]	-30...80
Protection	IP 68

Tests / approvals

MTTF [years]	403
Pressure Equipment Directive	Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Weight [g]	1754
Materials	stainless steel (1.4571/316Ti ); PA

anzeigen-bedienelemente

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 20 m, FEP, Ø 7.5 mm
