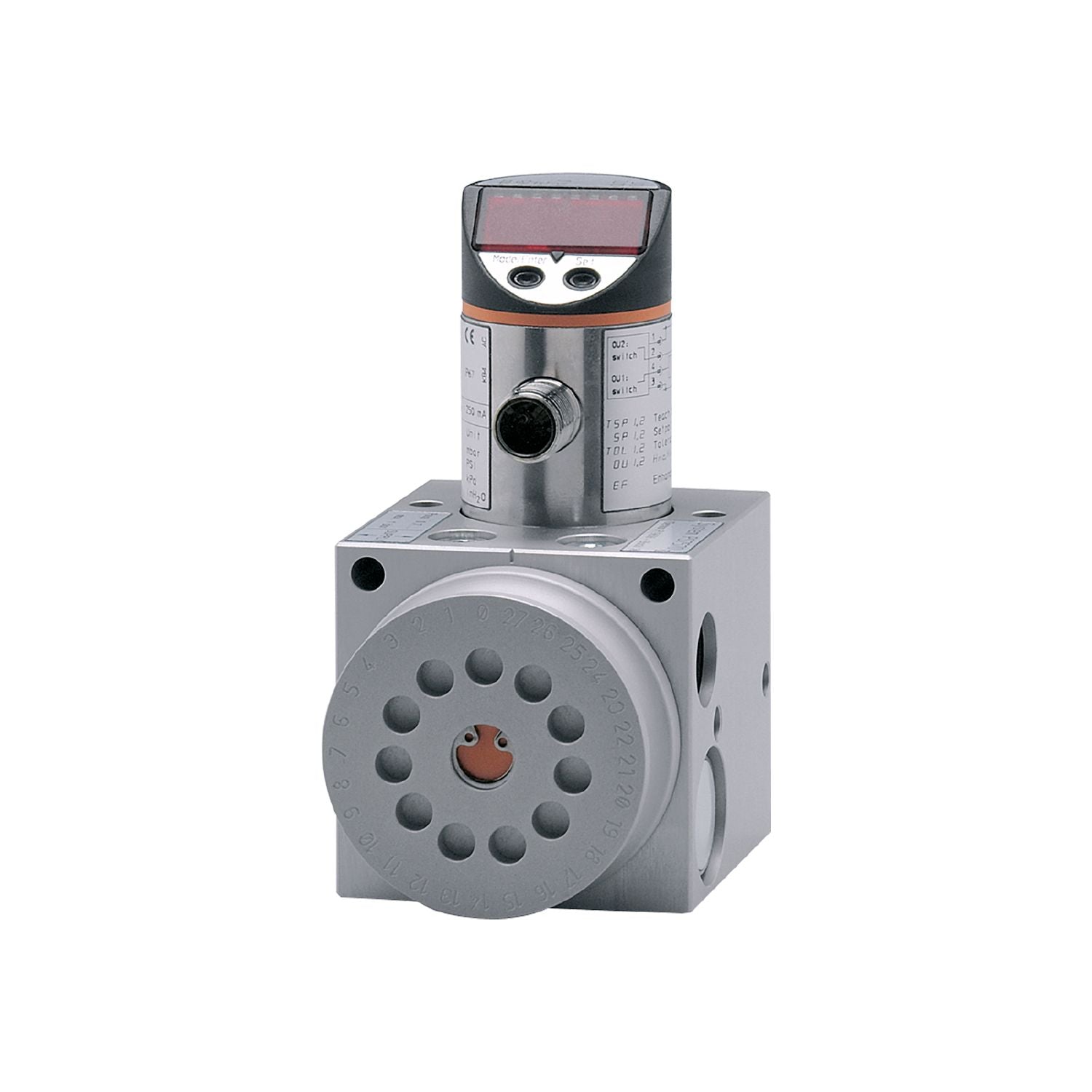

IFM PS7570 - Control unit for part seat monitoring CONTROL UNIT PART SEAT MONITOR

Precise part seat monitoring by means of backpressure measurement.
For use in machine tools and machining centres.
Reliable measurement of very short distances up to 0.01 mm.
Easy adjustment to the required gap distance using the mechanical setting dial.
Two switch points: Fine / coarse detection and additional function check

Application	for industrial applications

Outputs

Output signal	switching signal;(2 x normally open / normally closed)
Electrical design	PNP/NPN

Tests / approvals

MTTF [years]	161

Weight [g]	862

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PS7570-00 — 13.04.2023 —
