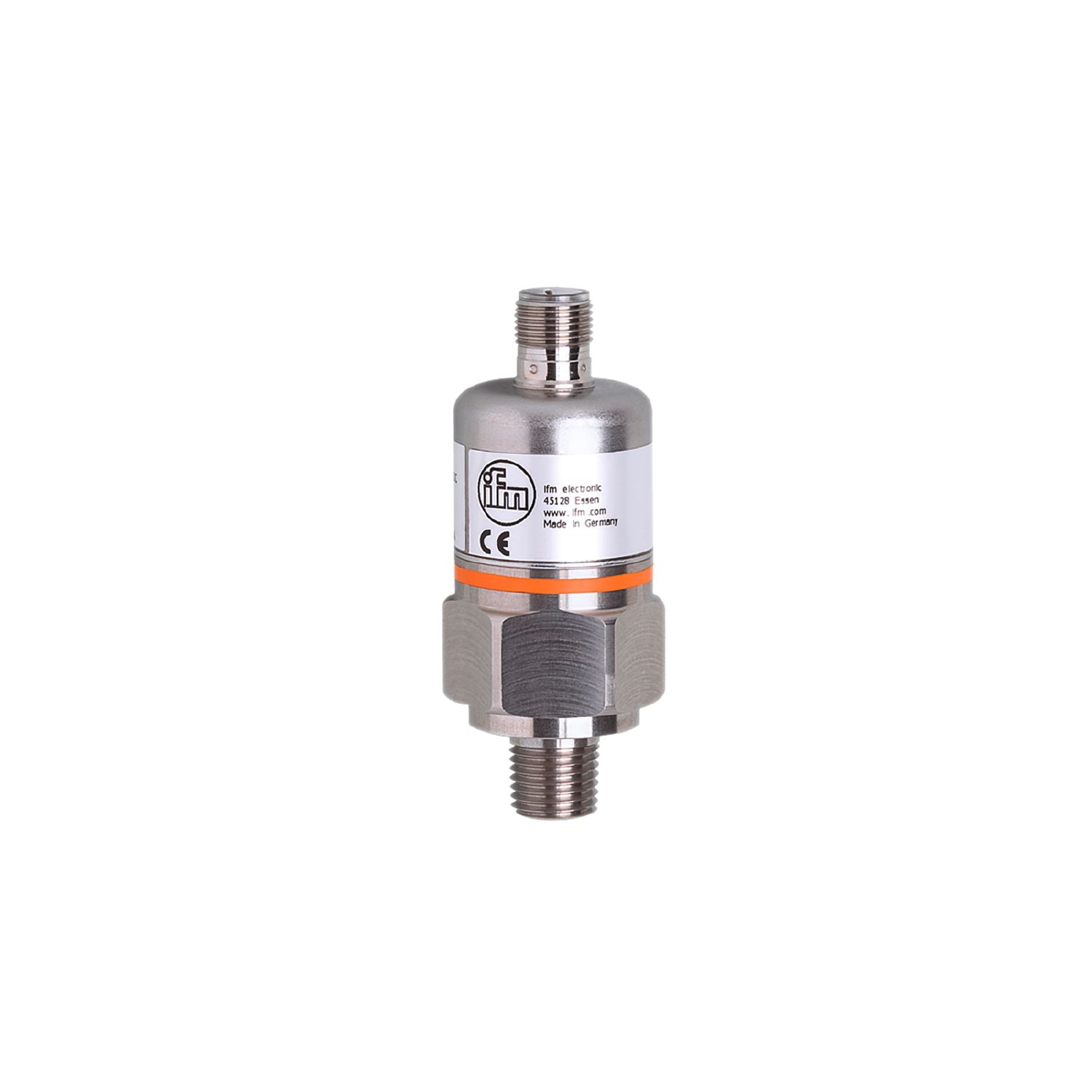

IFM PX3289 - Pressure transmitter with ceramic measuring cell PA-,10BRBN14-A-ZVG/US/ /V

Reliable detection of system pressure in industrial and mobile applications.
Precise analogue output.
With long-term stability thanks to high overload protection.
Lifespan of more than 100 million pressure cycles.
High shock and vibration resistance

Number of inputs and outputs	Number of analogue outputs: 1
Measuring range	0...0.1 bar 0...100 mbar 0...1.45 psi 0...40.16 inH2O 0...10 kPa
Process connection	threaded connection 1/4" NPT external thread internal thread:M5

Special feature	Gold-plated contacts
Application	for industrial applications
Media	liquids and gases
Medium temperature [°C]	-25...90;(on request: -40...90 °C)
Min. bursting pressure	30000 mbar 435 psi 12030 inH2O 3000 kPa
Pressure rating	4000 mbar 58 psi 1606 inH2O 400 kPa
Type of pressure	relative pressure

Operating voltage [V]	9.6...32 DC
Min. insulation resistance [MΩ]	100;(500 V DC)
Protection class	III
Reverse polarity protection	yes

Inputs / outputs

Number of inputs and outputs	Number of analogue outputs: 1

Outputs

Total number of outputs	1
Output signal	analogue signal
Number of analogue outputs	1
Analogue current output [mA]	4...20
Max. load [Ω]	720;(Ub = 24 V; (Ub - 9,6 V) / 20 mA)
Overload protection	yes

Measuring/setting range

Measuring range	0...0.1 bar 0...100 mbar 0...1.45 psi 0...40.16 inH2O 0...10 kPa

Accuracy / deviations

Repeatability [% of the span]	< 0,2;(with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]	< ± 0,5 (BFSL) / < ± 1 (LS);(BFSL = Best Fit Straight Line; LS = limit value setting)
Long-term stability [% of the span]	< ± 0,1;(per 6 months)
Temperature coefficient zero point [% of the span / 10 K]	< ± 0,5;(0...80 °C)
Temperature coefficient span [% of the span / 10 K]	< ± 0,5;(0...80 °C)

Response times

Step response time analogue output [ms]	3

Operating conditions

Ambient temperature [°C]	-25...80
Storage temperature [°C]	-40...100
Protection	IP 68

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 30 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V radiation of interference according to the automotive directive 2004/104/EC CISPR 25 immunity according to the automotive directive 2004/104/EC ISO 11452-2 HF radiated 100 V/m ISO 7637-2 pulse severity level 3
Shock resistance	DIN EN 60068-2-27 50 g (11 ms) DIN EN 61373 category 3
Vibration resistance	DIN EN 60068-2-6 20 g (10...2000 Hz) DIN EN 61373 category 2
MTTF [years]	555
UL approval	File number UL E174189
Pressure Equipment Directive	Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Weight [g]	210.1
Materials	stainless steel (1.4404 / 316L); FKM; PA; EPDM/X
Materials (wetted parts)	stainless steel (1.4305 / 303); ceramics; FKM
Min. pressure cycles	100 million
Tightening torque [Nm]	50;(recommended tightening torque; depends on lubrication, seal and pressure rating)
Process connection	threaded connection 1/4" NPT external thread internal thread:M5
Restrictor element integrated	no (can be retrofitted)

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
