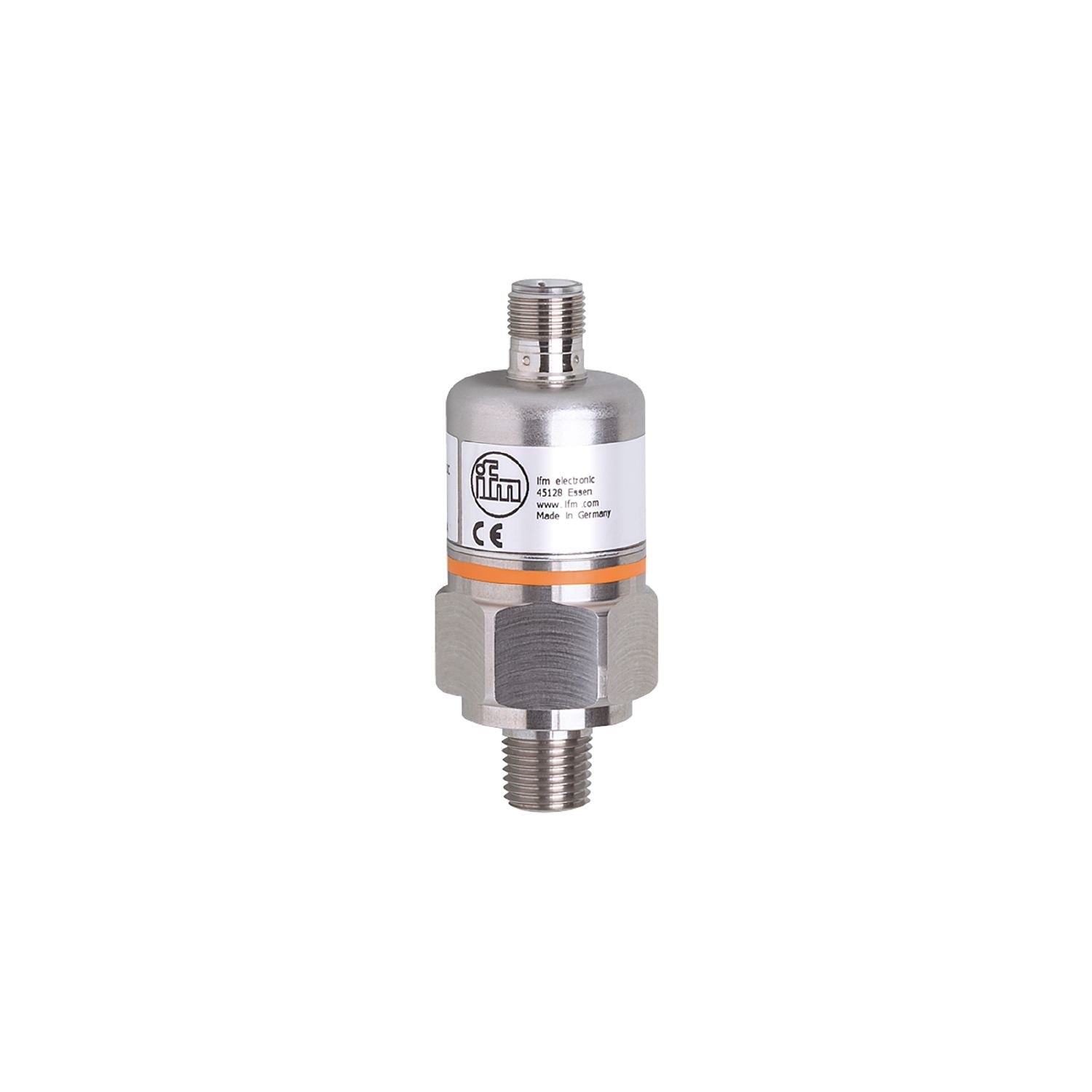

IFM PX9116 - Pressure transmitter with ceramic measuring cell PA-003PRBN14-B-DVG/US/ /V

Reliable detection of system pressure in industrial and mobile applications.
Precise analogue output.
With long-term stability thanks to high overload protection.
Lifespan of more than 100 million pressure cycles.
High shock and vibration resistance

Number of inputs and outputs	Number of analogue outputs: 1
Measuring range [psi]	0...30
Process connection	threaded connection 1/4" NPT external thread internal thread:M5

Special feature	Gold-plated contacts
Application	for industrial applications
Media	liquids and gases
Medium temperature [°C]	-25...90
Min. bursting pressure [psi]	725
Pressure rating [psi]	290
Type of pressure	relative pressure

Operating voltage [V]	16...32 DC
Current consumption [mA]	< 18
Min. insulation resistance [MΩ]	100;(500 V DC)
Protection class	III
Reverse polarity protection	yes

Inputs / outputs

Number of inputs and outputs	Number of analogue outputs: 1

Outputs

Total number of outputs	1
Output signal	analogue signal
Number of analogue outputs	1
Analogue voltage output [V]	0...10
Min. load resistance [Ω]	2000
Overload protection	yes

Measuring/setting range

Measuring range [psi]	0...30

Accuracy / deviations

Repeatability [% of the span]	< 0,15;(with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]	< ± 0,35 (BFSL) / < ± 0,75 (LS);(BFSL = Best Fit Straight Line; LS = limit value setting)
Long-term stability [% of the span]	< ± 0,05;(per 6 months)
Temperature coefficient zero point [% of the span / 10 K]	0,2;(0...80 °C)
Temperature coefficient span [% of the span / 10 K]	0,3;(0...80 °C)

Response times

Step response time analogue output [ms]	3

Operating conditions

Ambient temperature [°C]	-25...80
Storage temperature [°C]	-40...100
Protection	IP 65

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 30 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V radiation of interference according to the automotive directive 2004/104/EC / CISPR 25 immunity according to the automotive directive 2004/104/EC / ISO 11452-2 HF radiated 100 V/m pulse resistance ISO 7637-2 / severity level 3
Shock resistance	DIN IEC 68-2-27 50 g (11 ms)
Vibration resistance	DIN IEC 68-2-6 20 g (10...2000 Hz)
MTTF [years]	550
Pressure Equipment Directive	Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Weight [g]	212
Materials	stainless steel (1.4404 / 316L); FKM; PA; EPDM/X
Materials (wetted parts)	stainless steel (1.4305 / 303); ceramics; FKM
Min. pressure cycles	100 million
Process connection	threaded connection 1/4" NPT external thread internal thread:M5
Restrictor element integrated	no (can be retrofitted)

anzeigen-bedienelemente

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
