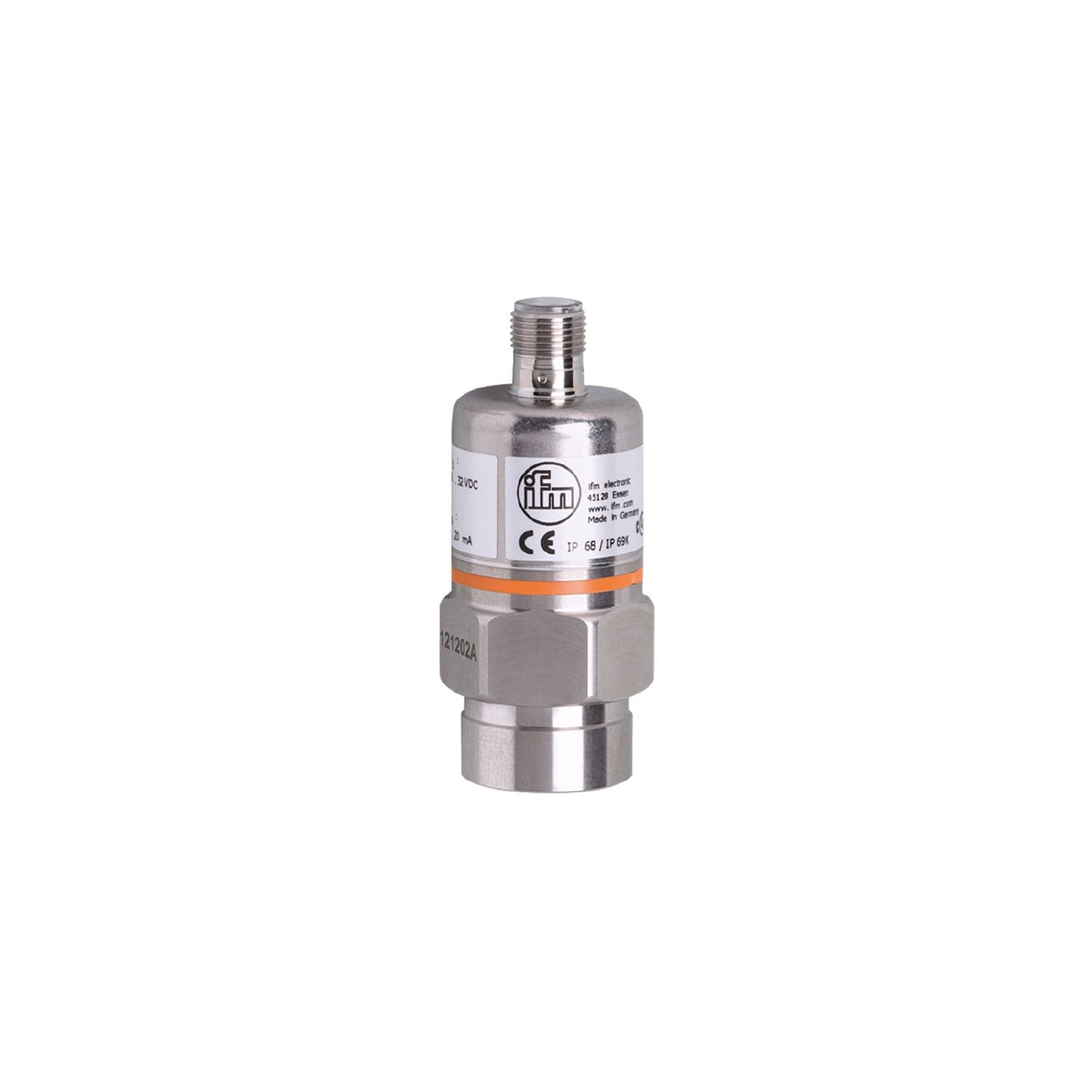

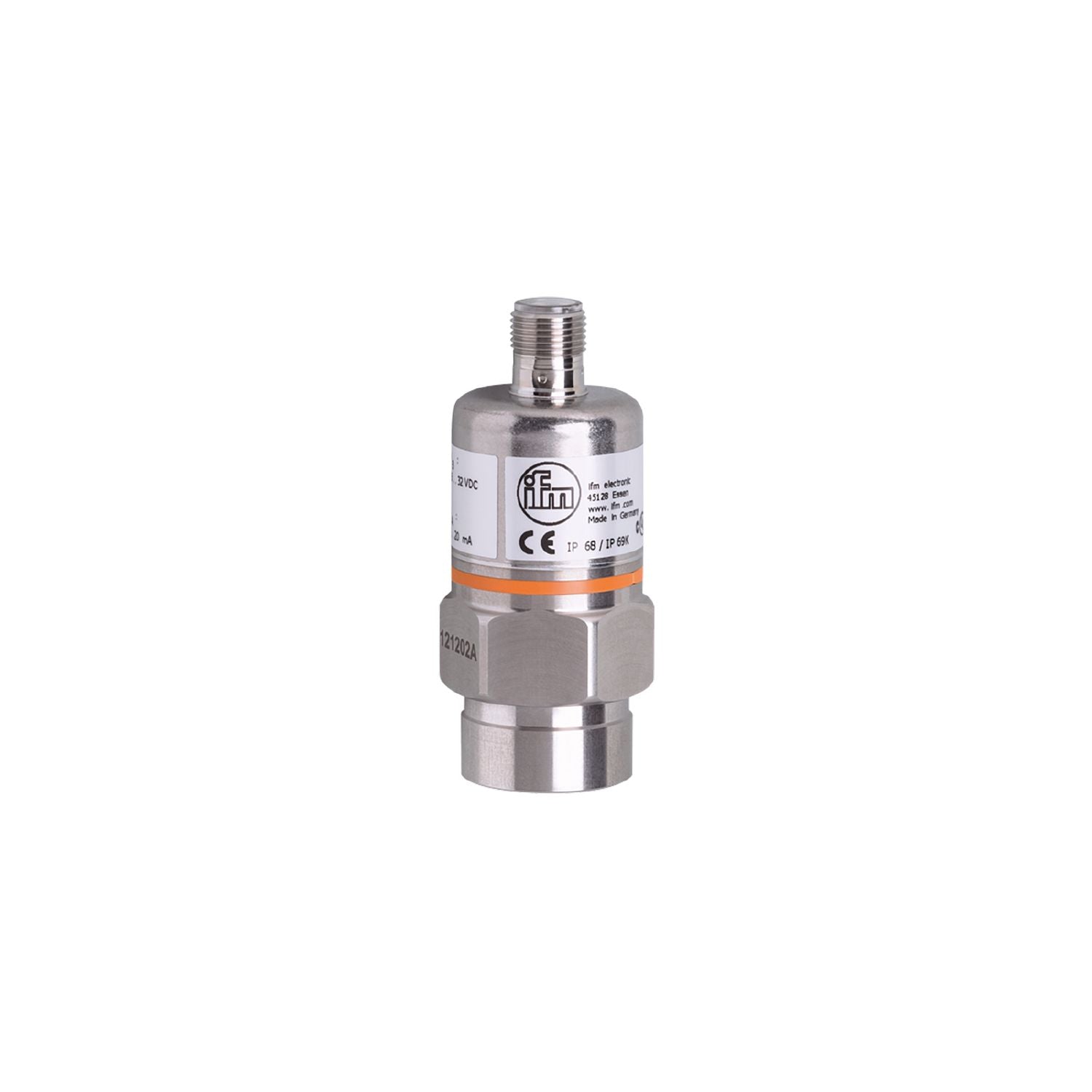

Reliable detection of system pressure in industrial and mobile applications. Precise analogue output. With long-term stability thanks to high overload protection. Lifespan of more than 100 million pressure cycles. High shock and vibration resistance
Number of inputs and outputs
Number of analogue outputs: 1
Measuring range [psi]
0...100
Process connection
threaded connection 1/4" NPT internal thread
Special feature
Gold-plated contacts
Application
for industrial applications
Media
liquids and gases
Medium temperature [°C]
-25...90
Min. bursting pressure [psi]
2175
Pressure rating [psi]
1087
Type of pressure
relative pressure
Operating voltage [V]
10...30 DC
Current consumption [mA]
< 18
Min. insulation resistance [MΩ]
100;(500 V DC)
Protection class
III
Reverse polarity protection
yes
Inputs / outputs
Number of inputs and outputs
Number of analogue outputs: 1
Outputs
Total number of outputs
1
Output signal
analogue signal
Number of analogue outputs
1
Analogue voltage output [V]
1...5
Min. load resistance [Ω]
2000
Overload protection
yes
Measuring/setting range
Measuring range [psi]
0...100
Accuracy / deviations
Repeatability [% of the span]
< 0,1;(with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]
< ± 0,25 (BFSL) / < ± 0,5 (LS);(BFSL = Best Fit Straight Line; LS = limit value setting)
Long-term stability [% of the span]
< ± 0,05;(per 6 months)
Temperature coefficient zero point [% of the span / 10 K]
0,2;(0...80 °C)
Temperature coefficient span [% of the span / 10 K]
0,2;(0...80 °C)
Response times
Step response time analogue output [ms]
3
Operating conditions
Ambient temperature [°C]
-25...80
Storage temperature [°C]
-40...100
Protection
IP 65
Tests / approvals
EMC
EN 61000-4-2 ESD
4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated
30 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-6 HF conducted
10 V
radiation of interference
according to the automotive directive 2004/104/EC / CISPR 25
immunity
according to the automotive directive 2004/104/EC / ISO 11452-2
HF radiated
100 V/m
pulse resistance
ISO 7637-2 / severity level 3
Shock resistance
DIN IEC 68-2-27
50 g (11 ms)
Vibration resistance
DIN IEC 68-2-6
20 g (10...2000 Hz)
MTTF [years]
550
Pressure Equipment Directive
Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Weight [g]
222
Materials
stainless steel (1.4404 / 316L); FKM; PA; EPDM/X
Materials (wetted parts)
stainless steel (1.4305 / 303); ceramics; FKM
Min. pressure cycles
100 million
Process connection
threaded connection 1/4" NPT internal thread
Restrictor element integrated
no (can be retrofitted)
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
