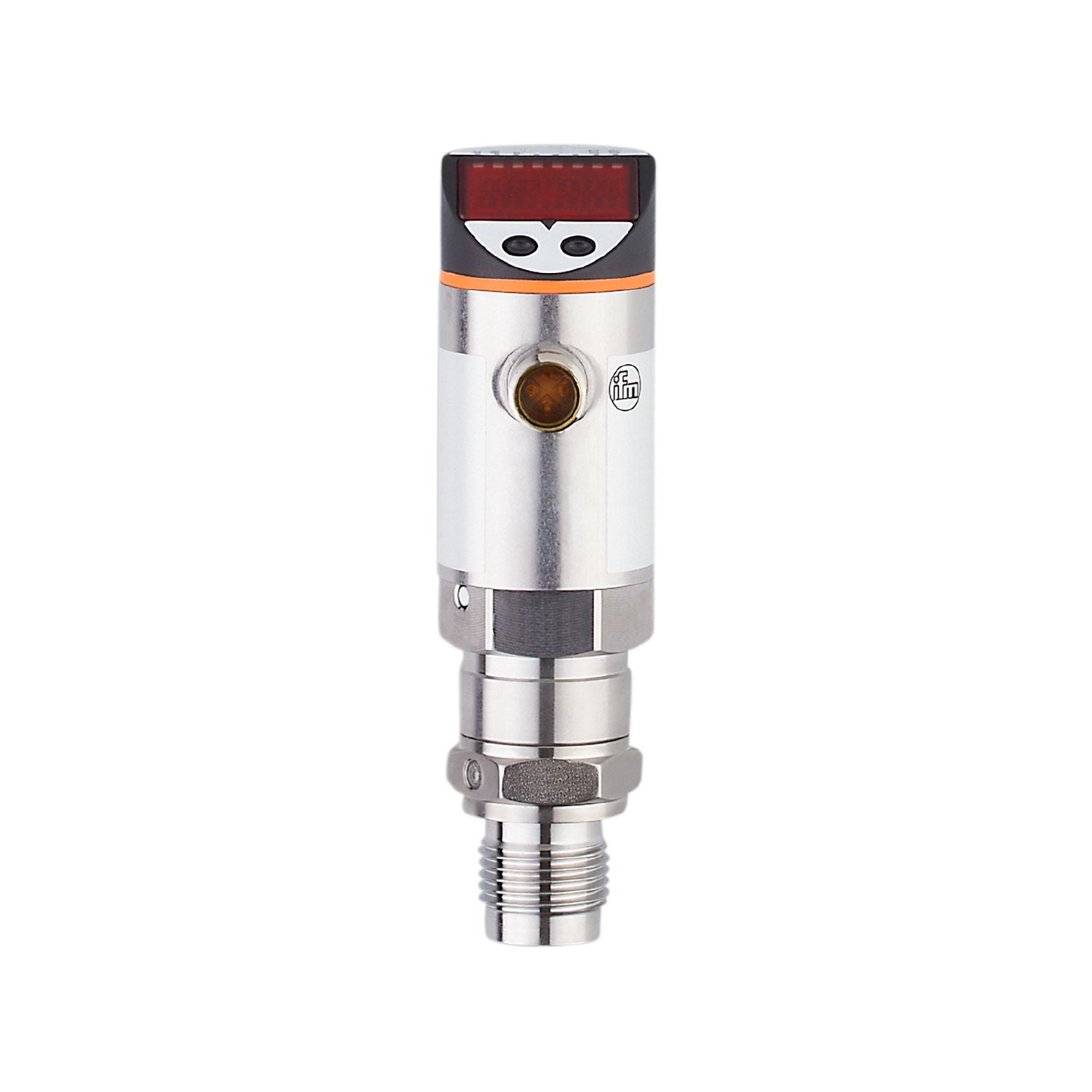

Two switching outputs, one of them programmable as analogue output. Clearly visible 4-digit LED display. Country-specific pressure units selectable. With long-term stability thanks to high overload protection. Selectable output polarity
Number of inputs and outputs
Number of digital outputs: 2; Number of analogue outputs: 1
Measuring range
-1...25 bar
-14.5...362.5 psi
-0.1...2.5 MPa
Process connection
threaded connection G 1/2 external thread
Special feature
Gold-plated contacts
Application
flush mountable for industrial applications; for industrial applications
Media
liquids and gases
Medium temperature [°C]
-20...125
Min. bursting pressure
200 bar
2900 psi
20 MPa
Pressure rating
100 bar
1450 psi
10 MPa
Type of pressure
relative pressure
No dead space
yes
Operating voltage [V]
18...32 DC;(to SELV/PELV)
Current consumption [mA]
< 35
Min. insulation resistance [MΩ]
100;(500 V DC)
Protection class
III
Reverse polarity protection
yes
Power-on delay time [s]
0.3
Integrated watchdog
yes
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 2; Number of analogue outputs: 1
Outputs
Total number of outputs
2
Output signal
switching signal; analogue signal;(configurable)
Electrical design
PNP/NPN
Number of digital outputs
2
Output function
normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]
2
Permanent current rating of switching output DC [mA]
250
Switching frequency DC [Hz]
< 500
Number of analogue outputs
1
Analogue current output [mA]
4...20; (scalable 1:4)
Max. load [Ω]
(Ub - 10 V) / 20 mA
Analogue voltage output [V]
0...10; (scalable 1:4)
Min. load resistance [Ω]
2000
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Measuring/setting range
Measuring range
-1...25 bar
-14.5...362.5 psi
-0.1...2.5 MPa
Set point SP
-0.8...25 bar
-11.5...362.5 psi
-0.08...2.5 MPa
Reset point rP
-0.9...24.9 bar
-13...361 psi
-0.09...2.49 MPa
Analogue start point
-1...18.75 bar
-14.5...272 psi
-0.1...1.88 MPa
Analogue end point
5.25...25 bar
76...362.5 psi
0.53...2.5 MPa
In steps of
0.05 bar
0.5 psi
0.01 MPa
Factory setting
SP1 = 6.25 bar
rP1 = 5.75 bar
SP2 = 18.75 bar
rP2 = 18.25 bar
ASP = 0.00 bar
AEP = 25.00 bar
Accuracy / deviations
Switch point accuracy [% of the span]
< ± 0,4;(Turn down 1:1)
Repeatability [% of the span]
< ± 0,1;(with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation [% of the span]
< ± 0,3 (BFSL) / < ± 0,6 (LS);(Turn down 1:1; BFSL = Best Fit Straight Line; LS = limit value setting)
Linearity deviation [% of the span]
< ± 0,5;(Turn down 1:1)
Hysteresis deviation [% of the span]
< ± 0,1;(Turn down 1:1)
Long-term stability [% of the span]
< ± 0,1;(Turn down 1:1; per year)
Temperature coefficient zero point [% of the span / 10 K]
< ± 0,25;(0...80 °C)
Temperature coefficient span [% of the span / 10 K]
< ± 0,25;(0...80 °C)
Response times
Response time [ms]
< 1.5
Damping process value dAP [s]
0.01...4
Damping for the analogue output dAA [s]
0.01...4
Max. response time analogue output [ms]
3
Software / programming
Parameter setting options
hysteresis / window; normally open / normally closed; switching logic; current/voltage output; Damping; adaptation of displayed values; display can be rotated and switched off; Display unit; zero point; span
Connector: 1 x M12; coding: A; Contacts: gold-plated
