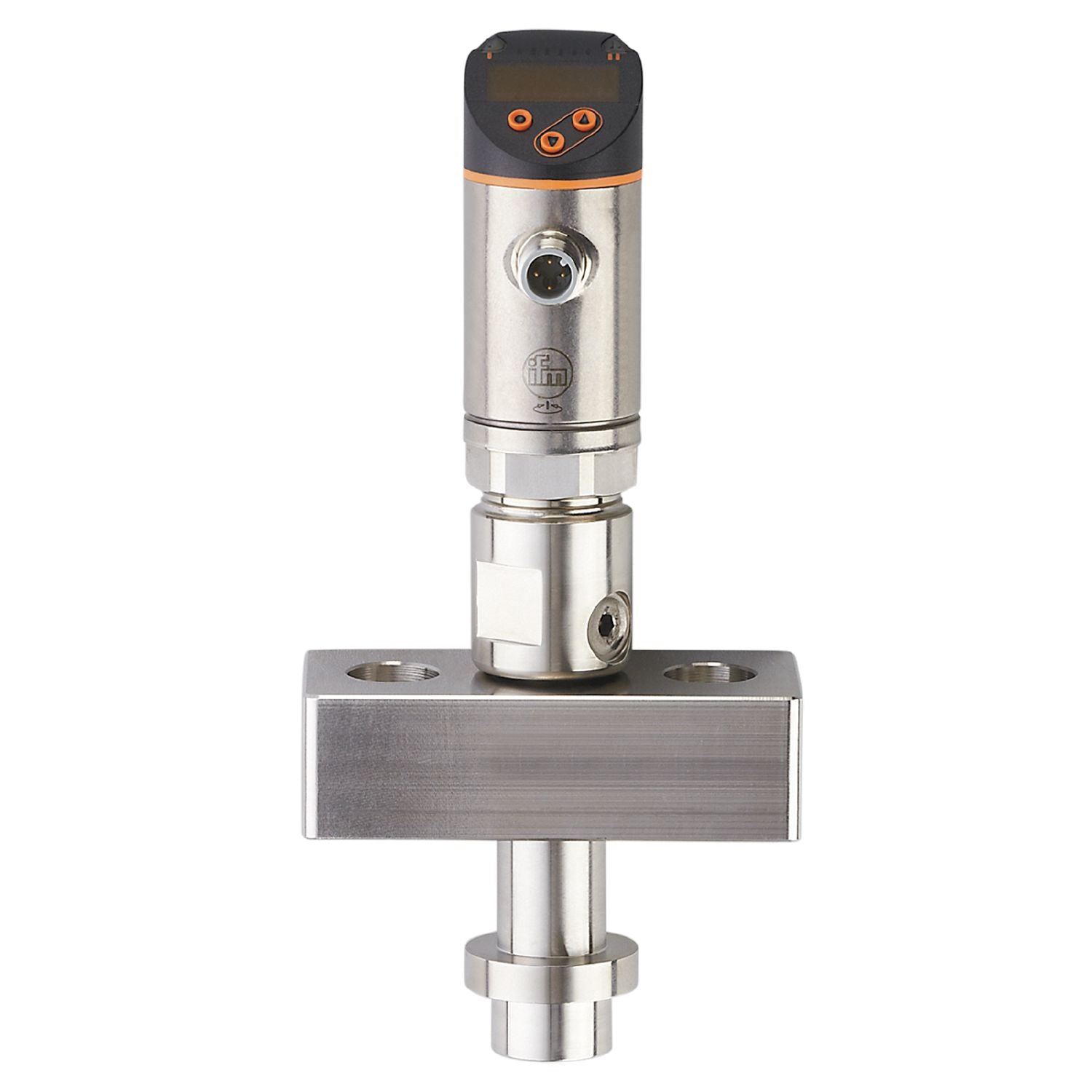

IFM PY9070 - Pressure sensor with display PN-400-SE MFRKG/US/ /

Suited for use in homogeniser processes.
Programmable switching output with IO-Link and scalable analogue output.
Red/green display for clear identification of the acceptable range.
The process connection can be rotated for optimum alignment

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1
Measuring range	0...400 bar 0...5800 psi
Measuring range [MPa]	0...40
Process connection	homogeniser connection

Special feature	Gold-plated contacts
Measuring element	diaphragm seal
Application	flush mountable for the food and beverage industry
Media	liquids and gases
Medium temperature [°C]	5...90;(for further details see section Diagrams and graphs)
Min. bursting pressure	1000 bar 14500 psi
Min. bursting pressure [MPa]	100
Pressure rating	600 bar 8700 psi
Pressure rating [MPa]	60
Vacuum resistance [mbar]	-1000
Type of pressure	relative pressure

Operating voltage [V]	18...30 DC;(to SELV/PELV)
Current consumption [mA]	< 35
Min. insulation resistance [MΩ]	100;(500 V DC)
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	0.3
Integrated watchdog	yes

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1

Outputs

Total number of outputs	2
Output signal	switching signal; analogue signal; IO-Link;(configurable)
Electrical design	PNP/NPN
Number of digital outputs	2
Output function	normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	< 500
Number of analogue outputs	1
Analogue current output [mA]	4...20; (scalable 1:5)
Max. load [Ω]	500
Analogue voltage output [V]	0...10; (scalable 1:5)
Min. load resistance [Ω]	2000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Measuring/setting range

Measuring range	0...400 bar 0...5800 psi
Measuring range [MPa]	0...40
Set point SP	2.5...400 bar 40...5800 psi
Set point SP [MPa]	0.25...40
Reset point rP	1...398.5 bar 10...5780 psi
Reset point rP [MPa]	0.1...39.85
Analogue start point	0...320 bar 0...4640 psi
Analogue start point [MPa]	0...32
Analogue end point	80...400 bar 1160...5800 psi
Analogue end point [MPa]	8...40
In steps of	0.5 bar 10 psi
In steps of [MPa]	0.05

Accuracy / deviations

Switch point accuracy [% of the span]	< ± 0,4;(Turn down 1:1)
Repeatability [% of the span]	< ± 0,1;(with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation [% of the span]	< ± 1;(linearity, incl. hysteresis and repeatability; limit value setting to DIN EN IEC 62828-1)
Hysteresis deviation [% of the span]	< ± 0,1;(Turn down 1:1)
Long-term stability [% of the span]	< ± 0,05;(Turn down 1:1; per 6 months)
Temperature coefficient zero point [% of the span / 10 K]	0,2;(5...80 °C)
Temperature coefficient span [% of the span / 10 K]	0,2;(5...80 °C)

Response times

Response time [ms]	< 1.5
Delay time programmable dS, dr [s]	0...50
Damping process value dAP [s]	0...4
Damping for the analogue output dAA [s]	0...4
Max. response time analogue output [ms]	3

Software / programming

Parameter setting options	hysteresis / window; normally open / normally closed; switch-on/switch-off delay; Damping; Display unit; current/voltage output

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
SIO mode	yes
Required master port type	A
Process data analogue	1
Process data binary	2
Min. process cycle time [ms]	2.3
Supported DeviceIDs	Type of operation DeviceID default 459

Operating conditions

Ambient temperature [°C]	5...80
Storage temperature [°C]	-40...100
Protection	IP 67

Tests / approvals

EMC	DIN EN 61000-6-2 DIN EN 61000-6-3
Shock resistance	DIN EN 60068-2-27 50 g (11 ms)
Vibration resistance	DIN EN 60068-2-6 10 g (10...2000 Hz)

Weight [g]	1479
Materials	1.4542 (17-4 PH / 630); stainless steel (1.4404 / 316L); stainless steel (1.4435 / 316L); PBT+PC-GF30; PBT-GF20; PC
Materials (wetted parts)	stainless steel (1.4435 / 316L)
Min. pressure cycles	60 million;(at 1.2 times nominal pressure)
Process connection	homogeniser connection

Displays / operating elements

Display	Display unit 3 x LED, green (bar, psi, MPa) switching status 2 x LED, yellow measured values alphanumeric display, red/green 4-digit

Pack quantity	1 pcs.

Electrical connection

	Connector: 1 x M12; coding: A; Contacts: gold-plated

Diagrams and graphs

	X Ambient temperature Y Medium temperature
