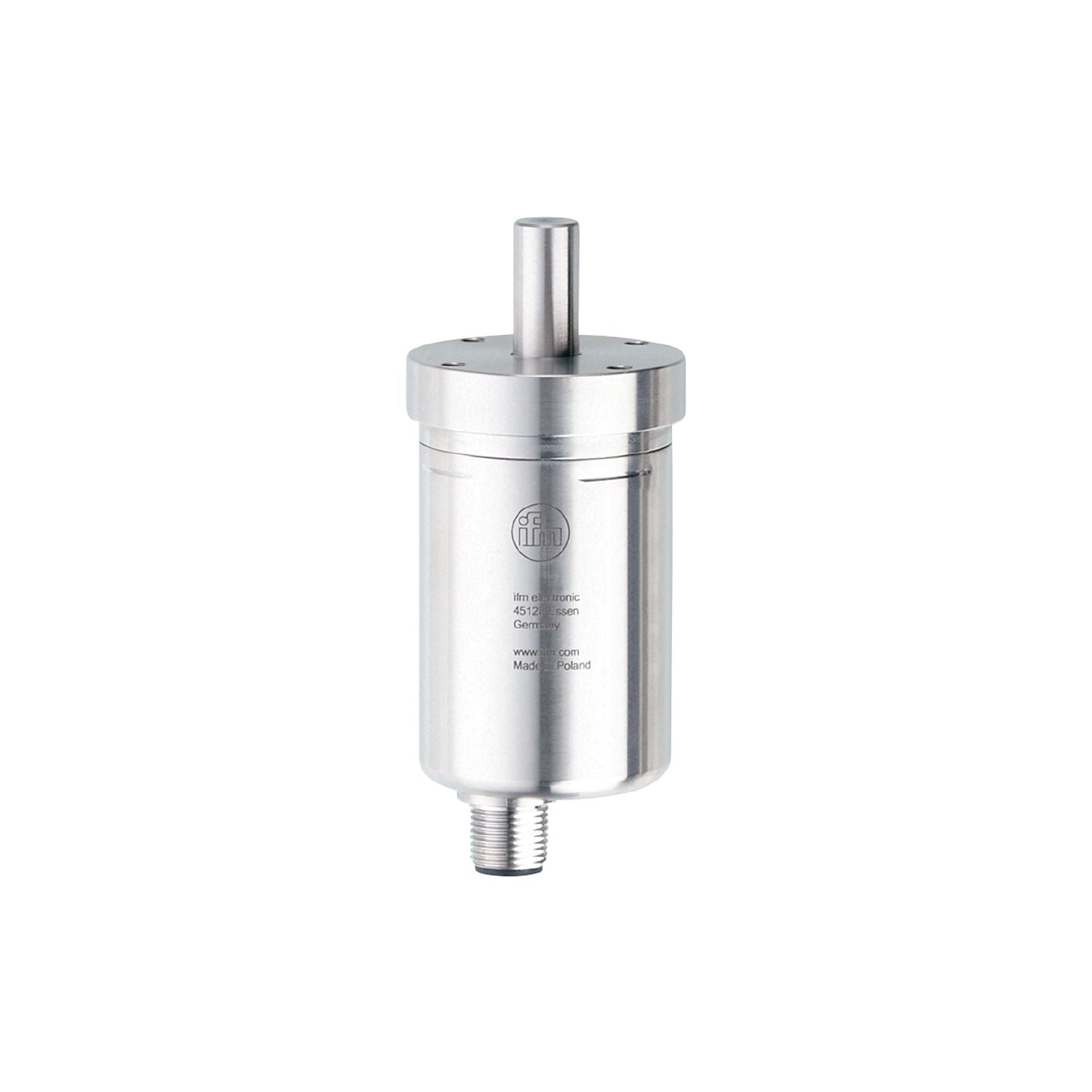

IFM RB3110 - Incremental encoder with solid shaft INCREMENTAL ENCODER

Resolution	1...10000;(parameterisable; Factory setting: 1024) resolution
Communication interface	IO-Link
Shaft design	solid shaft
Shaft diameter [mm]	10

Function principle	incremental
Revolution type	incremental /singleturn
Detection system	magnetic

Operating voltage [V]	4.75...30 DC
Current consumption [mA]	< 150
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	500
Max. revolution electrical [U/min]	6000

Outputs

Electrical design	HTL/TTL
Switching frequency [kHz]	1000
Factory setting	Output function: HTL (50 mA)
Short-circuit protection	yes
Phase difference A and B [°]	90

Measuring/setting range

Resolution	1...10000;(parameterisable; Factory setting: 1024) resolution

Accuracy / deviations

Accuracy [°]	0.1

Software / programming

Parameter setting options	Resolution; direction of rotation; HTL; TTL

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SIO mode	yes
Min. process cycle time [ms]	2.3

Operating conditions

Ambient temperature [°C]	-40...85
Storage temperature [°C]	-40...85
Max. relative air humidity [%]	95;(condensation not permissible)
Protection	IP 68; IP 69K

Tests / approvals

Vibration resistance	DIN EN 60068-2-6 20 g
Shock resistance	DIN EN 60068-2-27 200 g 11 ms
Continuous shock resistance	DIN EN 60068-2-29 20 g / 10...1000 Hz
Vibration resistance	30 g / 10...1000 Hz
MTTF [years]	292

Weight [g]	443.4
Dimensions [mm]	Ø 42 / L = 107.9
Materials	flange: stainless steel (1.4404 / 316L); housing: stainless steel (1.4404 / 316L)
Tightening torque [Nm]	< 0.7;(Mounting screw)
Max. revolution, mechanical [U/min]	6000
Max. starting torque [Nm]	5
Reference temperature torque [°C]	20
Shaft design	solid shaft
Shaft diameter [mm]	10
Shaft material	stainless steel (1.4112 / 440B)
Installation depth of shaft [mm]	22
Max. axial shaft misalignment [mm]	0,5
Fixing flange	Ø 42 mm
