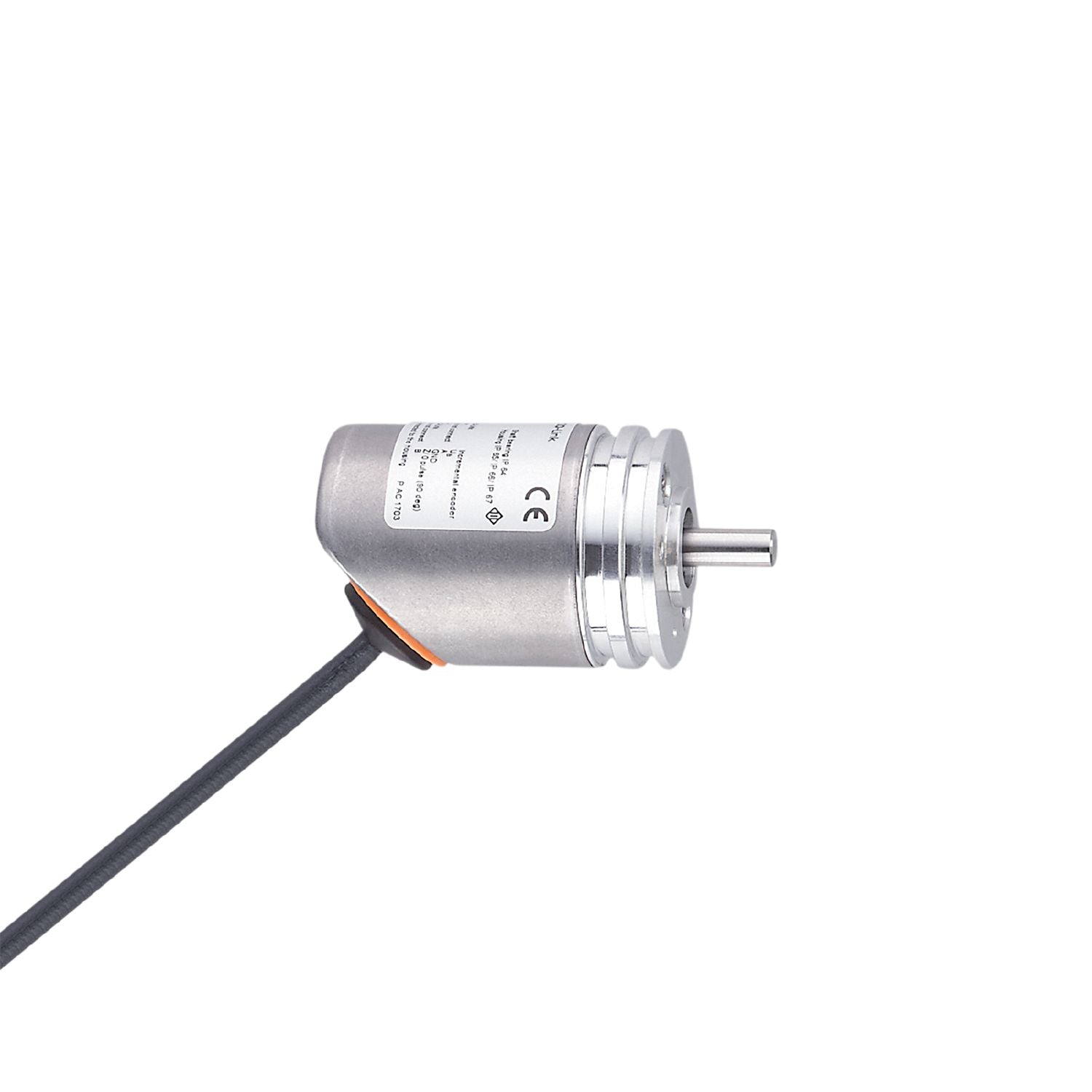

IFM RB3510 - Incremental encoder with solid shaft INCREMENTAL ENCODER BASIC LINE

Resolution	1...10000;(parameterisable; Factory setting: 1024) resolution
Communication interface	IO-Link
Shaft design	solid shaft
Shaft diameter [mm]	6

Detection system	magnetic

Operating voltage [V]	4.75...30 DC
Current consumption [mA]	< 150
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	0.5
Max. revolution electrical [U/min]	12000

Outputs

Electrical design	HTL/TTL
Switching frequency [kHz]	1000
Factory setting	Output function: HTL (50 mA)
Short-circuit protection	yes
Phase difference A and B [°]	90

Measuring/setting range

Resolution	1...10000;(parameterisable; Factory setting: 1024) resolution

Accuracy / deviations

Accuracy [°]	0.1

Software / programming

Parameter setting options	Resolution; direction of rotation; HTL; TTL

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SIO mode	yes
Min. process cycle time [ms]	2.3

Operating conditions

Ambient temperature [°C]	-40...80
Note on ambient temperature	for flexibly laid cable: -25 °C
Storage temperature [°C]	-40...80
Max. relative air humidity [%]	95;(condensation not permissible)
Protection	IP 65; IP 66;(on the housing: IP 67; on the shaft: IP 64)

Tests / approvals

Shock resistance	200 g
Vibration resistance	30 g
MTTF [years]	292

Weight [g]	301.6
Dimensions [mm]	Ø 36.5 / L = 67
Materials	flange: aluminium; housing: stainless steel (1.4521 / 444); cable plug: PA
Max. revolution, mechanical [U/min]	12000
Max. starting torque [Nm]	1
Reference temperature torque [°C]	20
Shaft design	solid shaft
Shaft diameter [mm]	6
Shaft material	stainless steel
Max. shaft load axial (at the shaft end) [N]	40
Max. shaft load radial (at the shaft end) [N]	60
Fixing flange	Ø 36.5 mm

Electrical connection

IO-Link	Cable: 2 m, Ø 4.9 mm; radial, can also be used axially; 5 x 0.14 mm²

Diagrams and graphs

Pulse diagram	direction of rotation clockwise (looking at the shaft)
