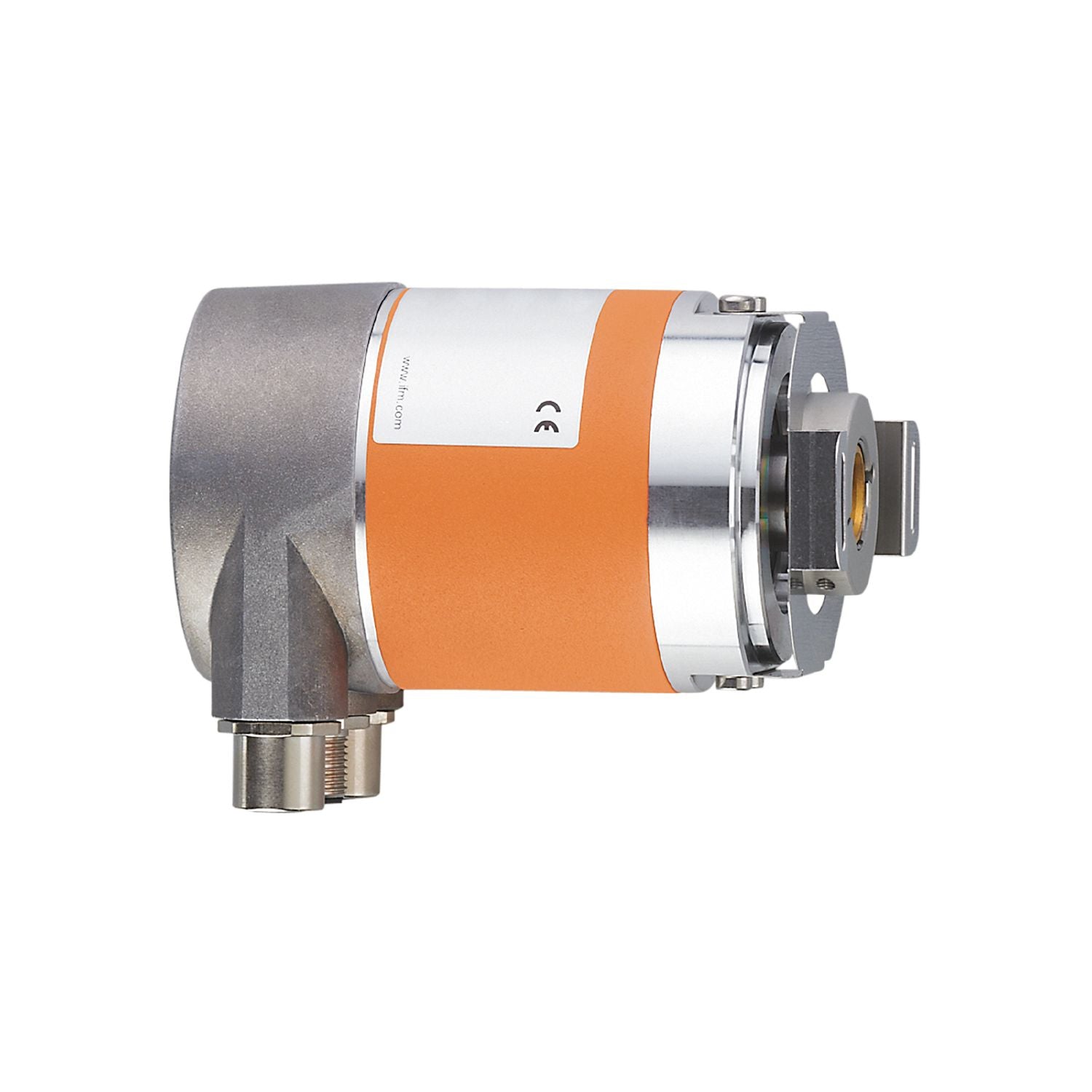

For precise position, speed, angular and linear measurement. Direct output of the values via PROFINET interface. Robust housing for use in harsh industrial environments. High shock and vibration resistance. Easy wiring and programming
Resolution
8192 steps; 4096 revolutions; 25 bit
Communication interface
ProfiNet-IO; PROFINET encoder profile V4.2
Shaft design
hollow shaft open to one side
Shaft diameter [mm]
12
Function principle
absolute
Revolution type
multiturn
Operating voltage [V]
10...30 DC
Current consumption [mA]
100;((24 V))
Reverse polarity protection
yes
Outputs
Short-circuit protection
yes
Code
binary
Measuring/setting range
Resolution
8192 steps; 4096 revolutions; 25 bit
Accuracy / deviations
14- 16 Bits
Accuracy [°]
0.0439
<13 Bits
Accuracy [°]
0.022
Software / programming
Parameter setting options
resolution per revolution; total resolution; direction of rotation; preset value; provision of a speed value; IP address; MRP; MRPD; rotational axis
Addressing
Software
Interfaces
Communication interface
ProfiNet-IO; PROFINET encoder profile V4.2
Operating conditions
Ambient temperature [°C]
-40...85
Storage temperature [°C]
-40...85
Max. relative air humidity [%]
98;(condensation not permissible)
Protection
IP 67;(on the housing: IP 67; on the shaft: IP 67)
Tests / approvals
Shock resistance
DIN EN 60068-2-27
100 g (6 ms) / half-sine
Continuous shock resistance
DIN EN 60068-2-29
10 g (16 ms) / half-sine
Vibration resistance
DIN EN 60068-2-6
20 g (20...1000 Hz)
MTTF [years]
95
Weight [g]
601
Dimensions [mm]
Ø 58.5 / L = 98
Materials
aluminium; clamping ring: brass
Max. revolution, mechanical [U/min]
3000
Shaft design
hollow shaft open to one side
Shaft diameter [mm]
12
Shaft material
steel (1.4104)
Max. shaft load axial (at the shaft end) [N]
40
Max. shaft load radial (at the shaft end) [N]
110
Fixing flange
Stator coupling
Electrical connection - Ethernet
Connector: 1 x M12; coding: D
Electrical connection - power supply
Connector: 1 x M12; coding: A
