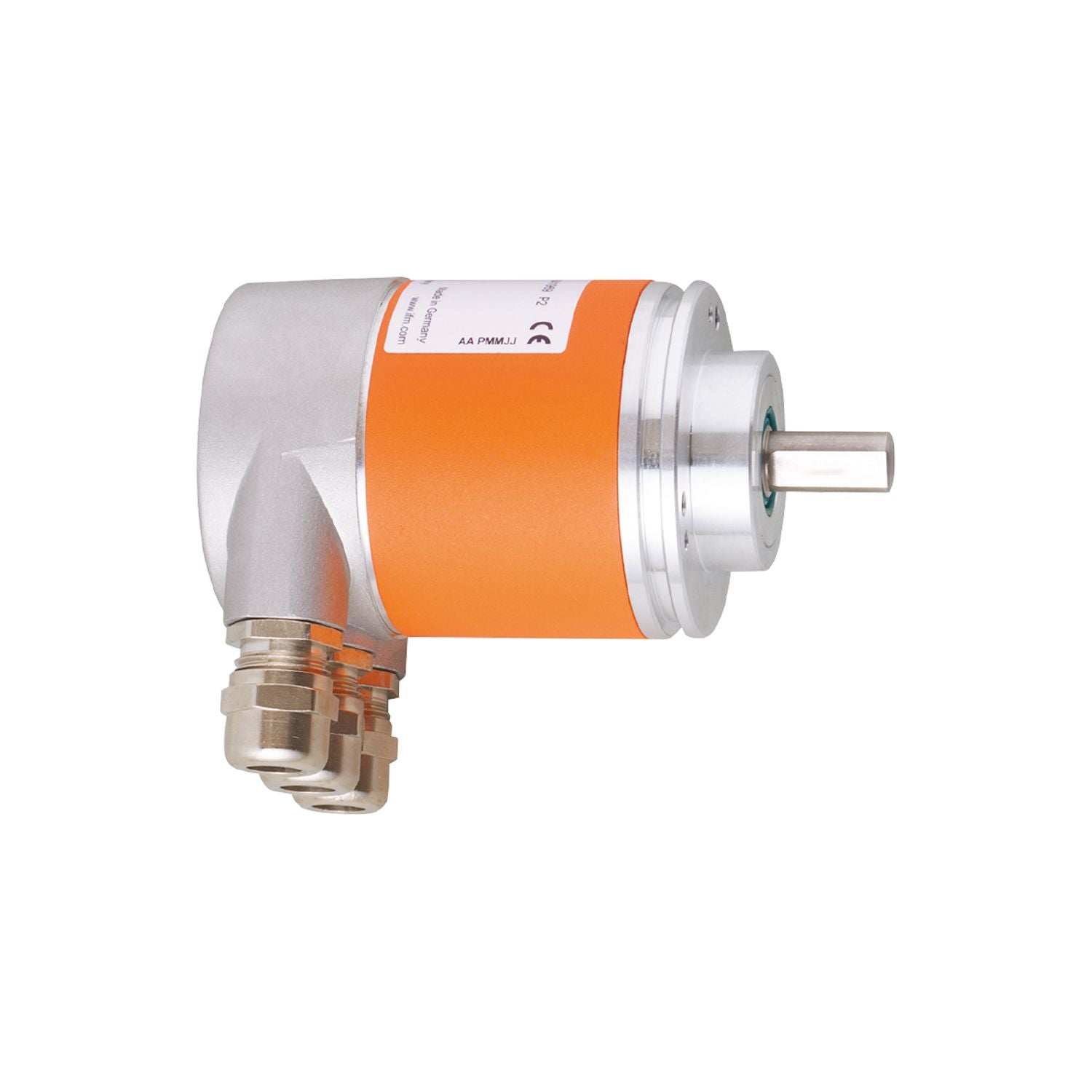

IFM RM7013 - Absolute multiturn encoder with solid shaft RMK0025-H24/E

For precise position, speed, angular and linear measurement.
Direct output of the values via DeviceNet interface.
Robust housing for use in harsh industrial environments.
High shock and vibration resistance.
Easy wiring and programming

Resolution	8192 steps; 4096 revolutions; 25 bit
Communication interface	DeviceNet
Shaft design	solid shaft
Shaft diameter [mm]	10

Function principle	absolute
Revolution type	multiturn

Operating voltage [V]	10...30 DC
Current consumption [mA]	230;((10 V DC); 100 (24 V DC))
Reverse polarity protection	yes

Outputs

Short-circuit protection	yes
Code	binary

Measuring/setting range

Resolution	8192 steps; 4096 revolutions; 25 bit

Software / programming

Parameter setting options	resolution per revolution; total resolution; direction of rotation; preset value; Type of operation; MAC ID; Baud rate
Addressing	address selector switch; 0...99; terminating resistor

Interfaces

Communication interface	DeviceNet

Protocol	CIP (Common Industrial Protocol)

Operating conditions

Ambient temperature [°C]	-40...85
Max. relative air humidity [%]	98
Protection	IP 67

Tests / approvals

Shock resistance	100 g (6 ms)
Vibration resistance	10 g (10...1000 Hz)
MTTF [years]	13

Weight [g]	592
Dimensions [mm]	Ø 58 / L = 110
Materials	housing cap: aluminium; housing: steel
Max. revolution, mechanical [U/min]	12000
Shaft design	solid shaft
Shaft diameter [mm]	10
Shaft material	stainless steel (1.4305 / 303)
Max. shaft load axial (at the shaft end) [N]	40
Max. shaft load radial (at the shaft end) [N]	110
Fixing flange	clamping flange

Electrical connection

	terminal strip in the terminal chamber:
