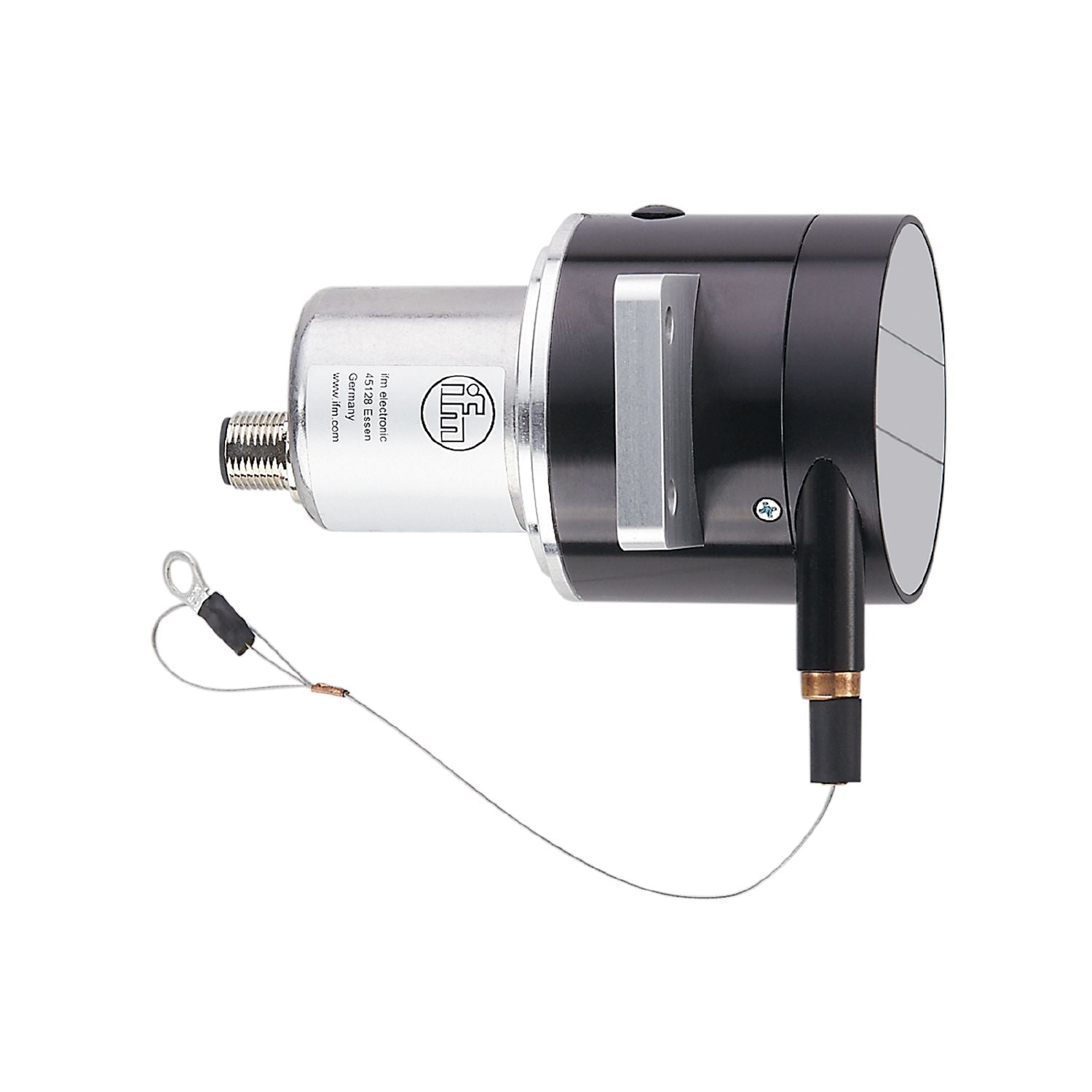

IFM RMS001 - draw wire encoder DRAW WIRE ENCODER

Resolution	8192 steps; 16 revolutions; 17 bit

Function principle	absolute
Detection system	magnetic
Application	encoder

Operating voltage [V]	8...32 DC
Current consumption [mA]	< 20
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	500
Settling time [ms]	32

Inputs / outputs

Number of inputs and outputs	Number of analogue outputs: 1

Outputs

Number of analogue outputs	1
Analogue current output [mA]	4...20
Max. load [Ω]	500
Precision analogue output [%]	0,1
Short-circuit protection	yes

Measuring/setting range

Resolution	8192 steps; 16 revolutions; 17 bit

Accuracy / deviations

Accuracy	± 0.02 % FSO
Repeatability	± 0,006 %FSO

Software / programming

Parameter setting options	start position; end position; central position

Operating conditions

Ambient temperature [°C]	-40...85
Storage temperature [°C]	-40...85
Max. relative air humidity [%]	95;(condensation not permissible)
Protection	IP 64;(on the housing: IP 65)

Tests / approvals

MTTF [years]	241

Weight [g]	561
Materials	housing: steel; wire drum: aluminium; wire: stainless steel polyamide coated
Max. measuring length [mm]	1900
Wire drum circumference [mm]	150
Wire diameter [mm]	0.45
Wire connection	Ø 5 mm;(eyelet)
Wire properties	max. speed of wire displacement [m /s] 2 max. wire acceleration [g] 12 max. extension force [N] 5 max. retraction force [N] 3,5

Electrical connection

	Connector: 1 x M12, for axial use; coding: A
