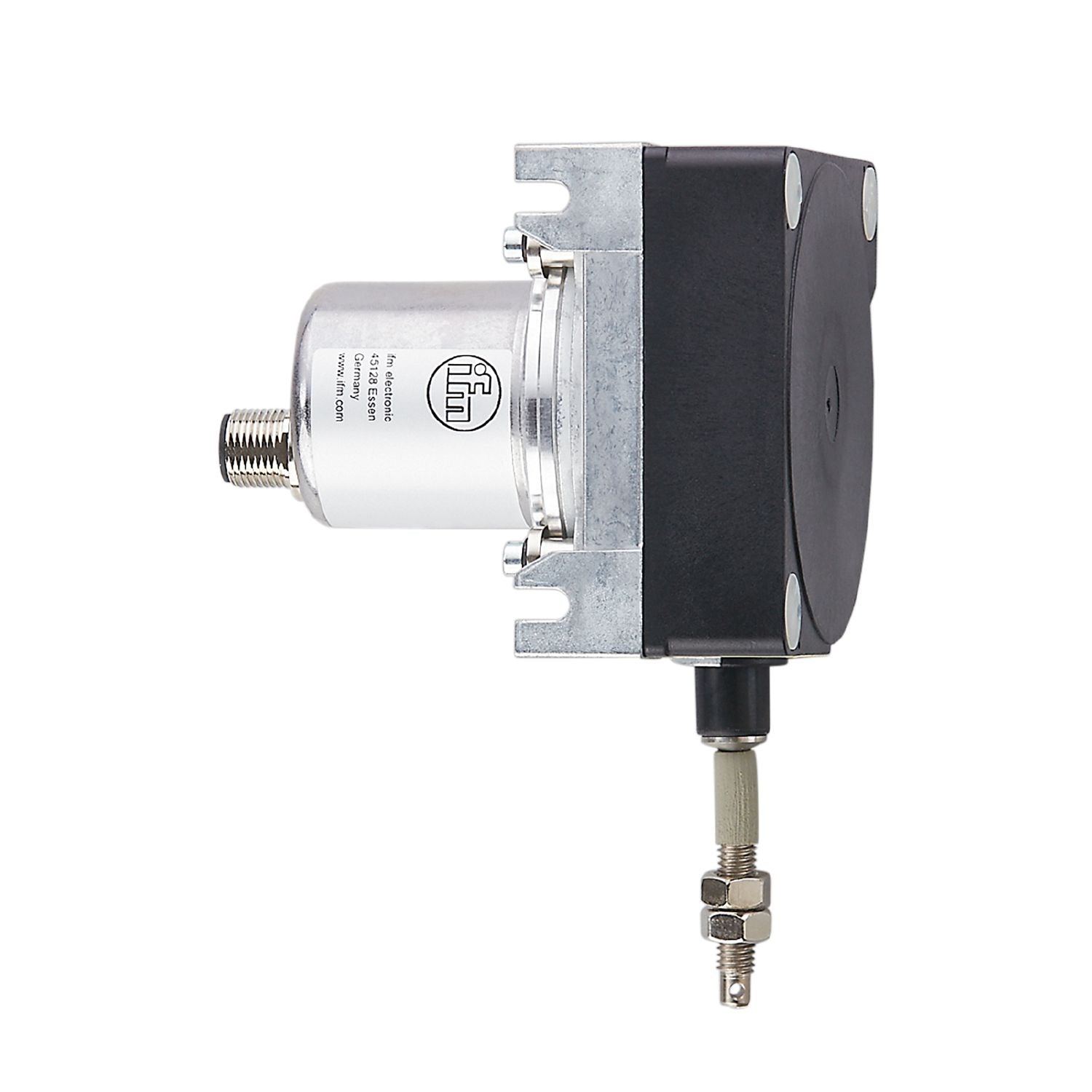

IFM RMS002 - draw wire encoder DRAW WIRE ENCODER

Resolution	8192 steps; 16 revolutions; 17 bit

Function principle	absolute
Detection system	magnetic
Application	encoder

Operating voltage [V]	8...32 DC
Current consumption [mA]	< 20
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	500
Settling time [ms]	32

Inputs / outputs

Number of inputs and outputs	Number of analogue outputs: 1

Outputs

Number of analogue outputs	1
Analogue current output [mA]	4...20
Max. load [Ω]	500
Precision analogue output [%]	0,1

Measuring/setting range

Resolution	8192 steps; 16 revolutions; 17 bit

Accuracy / deviations

Accuracy	± 0.012 % FSO
Repeatability	± 0,005 %FSO

Software / programming

Parameter setting options	start position; end position; central position

Operating conditions

Ambient temperature [°C]	-40...80
Storage temperature [°C]	-40...80
Max. relative air humidity [%]	95;(condensation not permissible)
Protection	IP 64;(on the housing: IP 65)

Tests / approvals

MTTF [years]	241

Weight [g]	696
Materials	housing: steel; wire drum: diecast zinc / plastic; wire: stainless steel polyamide coated
Max. measuring length [mm]	3000
Wire drum circumference [mm]	200
Wire diameter [mm]	0.87
Wire connection	threaded bolt M6x20; eyelet Ø 2 mm
Wire properties	max. speed of wire displacement [m /s] 0,8 max. wire acceleration [g] 1 max. extension force [N] 3 max. retraction force [N] 2,5

Electrical connection

	Connector: 1 x M12, for axial use; coding: A
