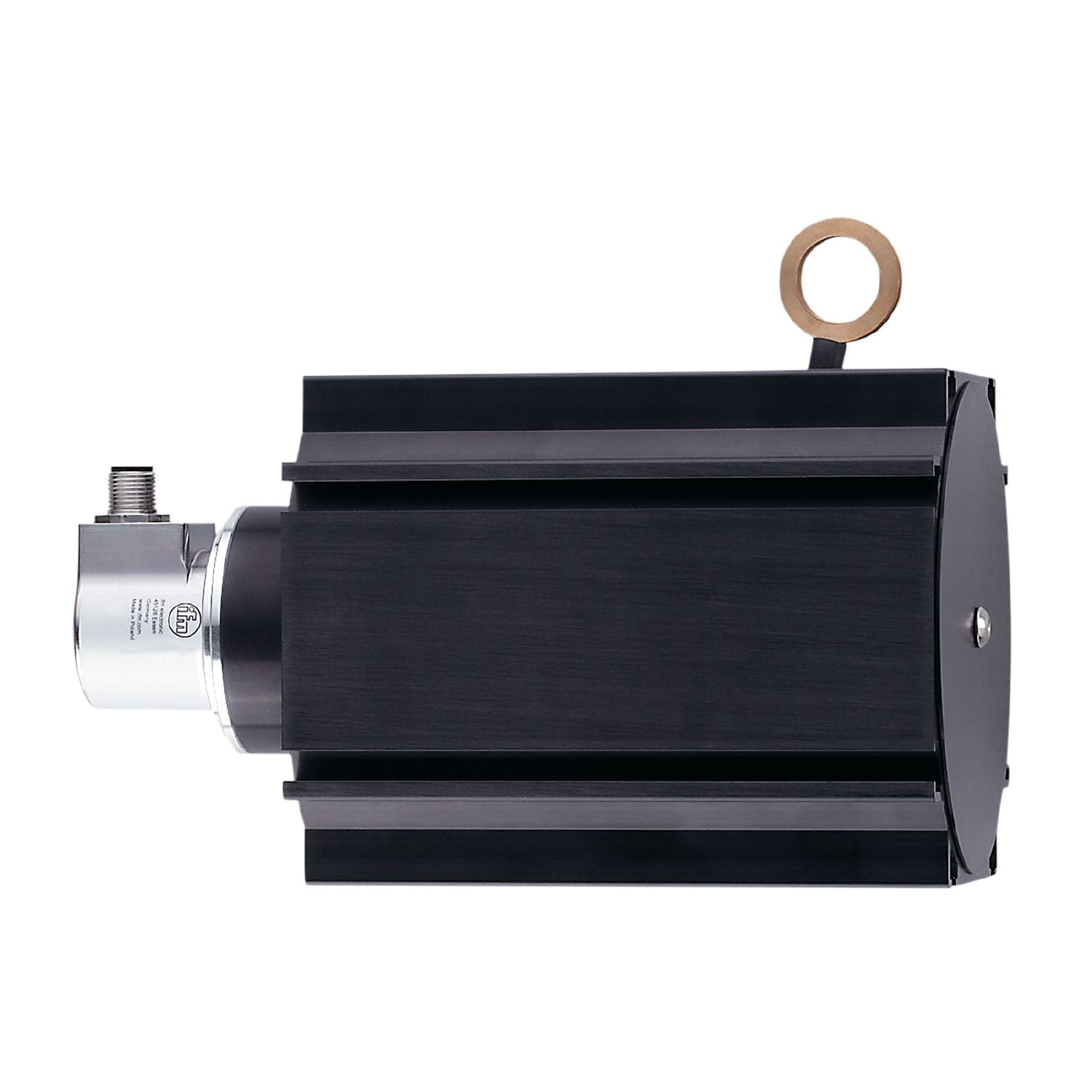

IFM RMS005 - draw wire encoder DRAW WIRE ENCODER

Resolution	4096 steps; 4096 revolutions; 24 bit
Communication interface	CAN

Function principle	absolute
Detection system	magnetic
Application	encoder

Operating voltage [V]	9...30 DC
Current consumption [mA]	50...100
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	500
Settling time [ms]	32

Outputs

Short-circuit proof	yes
Code	binary

Measuring/setting range

Resolution	4096 steps; 4096 revolutions; 24 bit

Accuracy / deviations

Repeatability	± 0,001 %FSO

Software / programming

Parameter setting options	CAN parameter; scaling; preset; Baud rate; direction of rotation; Node ID

Interfaces

Communication interface	CAN
Protocol	CANopen
Factory settings	Baud rate: 125 kBit/s node ID: 32
Version	DSP - 406 V3.1; DS 301 V4.02; DS 306 V2.0

Operating conditions

Ambient temperature [°C]	-20...80
Storage temperature [°C]	-20...80
Max. relative air humidity [%]	95;(condensation not permissible)
Protection	IP 64;(on the housing: IP 65)

Tests / approvals

MTTF [years]	240

Weight [g]	3684.5
Materials	housing: steel; wire drum: aluminium; plastics; wire: stainless steel polyamide coated
Max. measuring length [mm]	10000
Wire drum circumference [mm]	315
Wire diameter [mm]	1
Wire connection	Ø 20,2 mm;(eyelet)
Wire properties	max. speed of wire displacement [m /s] 2 max. wire acceleration [g] 6 max. extension force [N] 21 max. retraction force [N] 8

Displays / operating elements

Display	readiness for operation LED, green Operating mode LED, green flashing fault LED, red flashing

Electrical connection

	Connector: 1 x M12, can be used radially; coding: A
