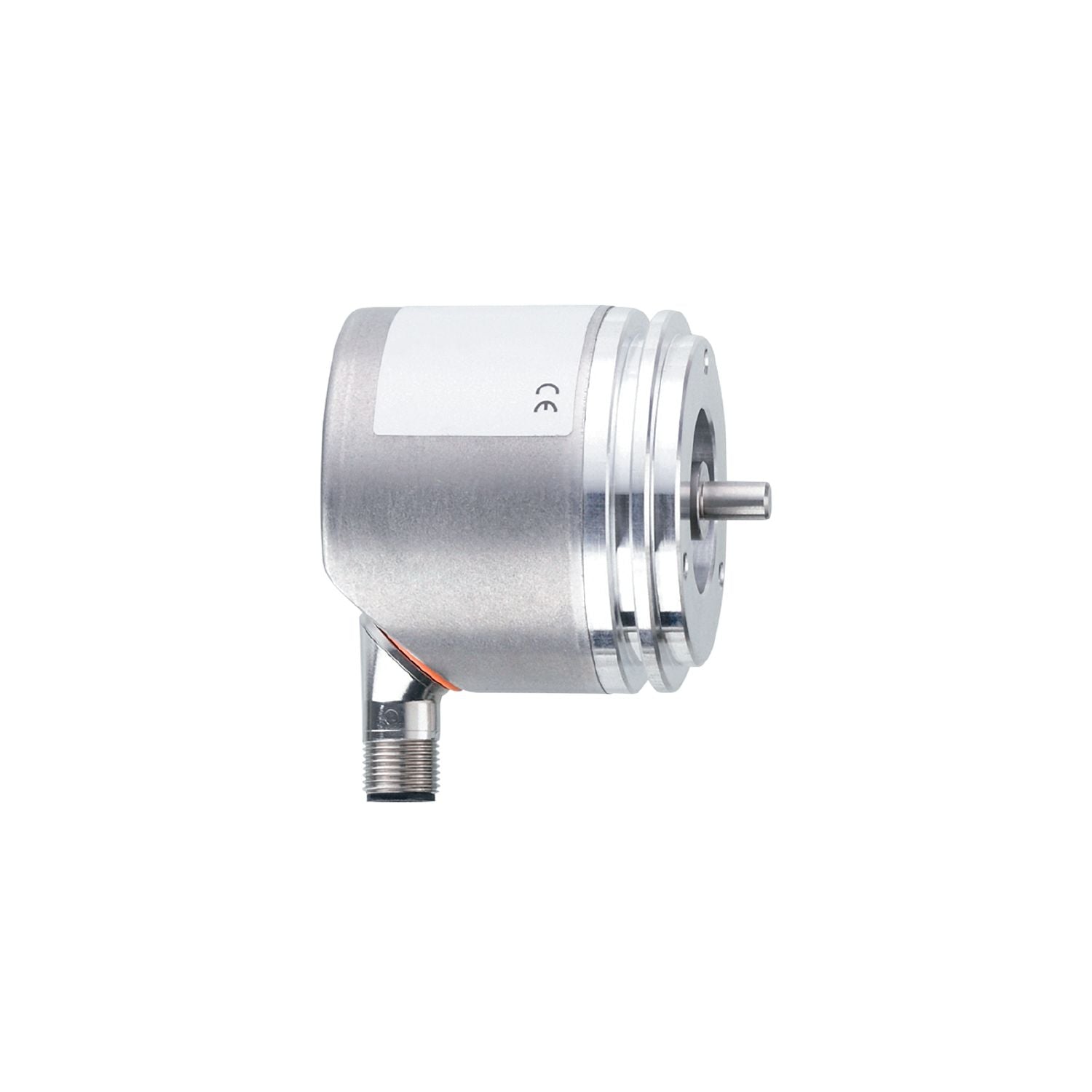

IFM RMU200 - analogue 13 bit multiturn encoder with 0...10 V output RMU06SVU513--bANU

For precise position, speed, angular and linear measurement.
Analogue output 0-10 V with 13 bit total resolution.
Configurable measuring range via pin connection.
Dead zone indication if scaling range is exceeded / not reached.
High shock and vibration resistance thanks to magnetic sensing principle

Resolution	8192 steps; 16 revolutions; 17 bit
Shaft design	solid shaft
Shaft diameter [mm]	6

Function principle	absolute
Detection system	magnetic

Operating voltage [V]	8...30 DC
Current consumption [mA]	< 150
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	500
Settling time [ms]	32
Max. revolution electrical [U/min]	12000

Inputs / outputs

Number of inputs and outputs	Number of analogue outputs: 1

Outputs

Number of analogue outputs	1
Analogue voltage output [V]	0...10
Min. load resistance [Ω]	5000
Short-circuit protection	yes

Measuring/setting range

Resolution	8192 steps; 16 revolutions; 17 bit

Accuracy / deviations

Accuracy	10 V ± 10 mV;(accuracy INL: ± 0.1)
Linearity deviation	± 0,15 %FSO

Software / programming

Parameter setting options	start position; end position; central position

Operating conditions

Ambient temperature [°C]	-40...85
Storage temperature [°C]	-40...85
Max. relative air humidity [%]	95;(condensation not permissible)
Protection	IP 65;(on the housing: IP67)

Tests / approvals

Shock resistance	EN 60068-2-27 100 g half-sine / 6 ms
Vibration resistance	EN 60068-2-29 10 g half-sine / 16 ms
MTTF [years]	258
UL approval	power supply Class 2

Weight [g]	347.5
Dimensions [mm]	Ø 58 / L = 63.5
Materials	flange: aluminium; housing: stainless steel (1.4521 / 444)
Max. revolution, mechanical [U/min]	12000
Max. starting torque [Nm]	1
Reference temperature torque [°C]	20
Shaft design	solid shaft
Shaft diameter [mm]	6
Shaft material	stainless steel
Max. shaft load axial (at the shaft end) [N]	40
Max. shaft load radial (at the shaft end) [N]	60
Fixing flange	synchro-flange

Electrical connection - plug

	Connector: 1 x M12, radial, can also be used axially; coding: A; Moulded body: stainless steel (316 / 1.4401); Maximum cable length: 100 m
